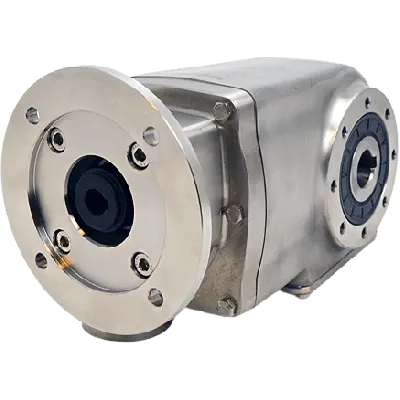

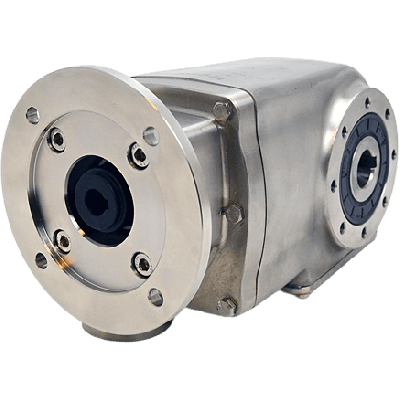

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 54,33:1, input 80B14, V5, stainless steel
HV82PX62NI13-EFBN-RV5-D-OFThis model features a gear ratio of 54.33:1 and utilises 2 gear stages to deliver efficient torque transmission. The gear input shaft diameter is 19 mm and the gear output shaft is a Ø35 mm H7 hollow shaft, supporting standardized output configurations. The input interface is 80B14, allowing for compatibility with IEC-motor mounting.Constructed with gears made of stainless steel AISI 316L, the X62N is suitable for hygiene-critical or corrosive environments. It maintains a mechanical efficiency of 96%, contributing to reduced energy losses. The gear size is X62N, and the unit offers a BCD input of 100 mm and BCD output of 130 mm for flexible integration.
Specifications
Product description
Downloads
€3,176.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
54,33:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
25.8
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.2
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized manufacturer renowned for its advanced gearing solutions designed for demanding industrial environments. Their products are particularly recognized for their robustness, corrosion resistance, and superior mechanical performance. With a strong focus on hygienic design and durable materials, Clean-Geartech components are trusted across the food processing, pharmaceutical, and chemical industries, where equipment reliability and washdown capability are essential.
Key Features and Benefits:
• High-quality stainless steel construction (AISI 316L) ensures exceptional corrosion resistance, making it ideal for use in aggressive or sanitary environments such as food processing, chemical production, and marine applications.
• High efficiency of 96% results in lower energy consumption and better operational cost-efficiency in continuous or high-demand industrial setups.
• 54.33:1 gear ratio enables precise speed reduction and torque multiplication, suitable for applications requiring controlled motion, such as conveyor belts, mixers, and dosing systems.
• Ø35H7 stainless steel hollow output shaft allows easy and hygienic integration with drive elements, ideal for gear connections in clean-in-place systems or where minimal contamination is critical.
• Compatible with 80B14 motor mounting interface, allowing standardized motor adaptations and simplifying integration into existing systems.
• 2-stage bevel gear configuration delivers high torque density in a compact footprint, making it suitable for installations with limited space or custom-designed machinery layouts.
• Gear input shaft Ø19 mm offers stable transmission and accommodates a wide range of industrial torque demands.
• Compact X62N size offers flexibility in system design, enabling seamless implementation in tight industrial enclosures or mobile units.This gear unit is a preferred solution for systems that demand high hygiene, strength, and maximum reliability under challenging operational conditions. It serves well in automated material handling systems, sterilized packaging lines, and corrosion-critical environments.
Key Features and Benefits:
• High-quality stainless steel construction (AISI 316L) ensures exceptional corrosion resistance, making it ideal for use in aggressive or sanitary environments such as food processing, chemical production, and marine applications.
• High efficiency of 96% results in lower energy consumption and better operational cost-efficiency in continuous or high-demand industrial setups.
• 54.33:1 gear ratio enables precise speed reduction and torque multiplication, suitable for applications requiring controlled motion, such as conveyor belts, mixers, and dosing systems.
• Ø35H7 stainless steel hollow output shaft allows easy and hygienic integration with drive elements, ideal for gear connections in clean-in-place systems or where minimal contamination is critical.
• Compatible with 80B14 motor mounting interface, allowing standardized motor adaptations and simplifying integration into existing systems.
• 2-stage bevel gear configuration delivers high torque density in a compact footprint, making it suitable for installations with limited space or custom-designed machinery layouts.
• Gear input shaft Ø19 mm offers stable transmission and accommodates a wide range of industrial torque demands.
• Compact X62N size offers flexibility in system design, enabling seamless implementation in tight industrial enclosures or mobile units.This gear unit is a preferred solution for systems that demand high hygiene, strength, and maximum reliability under challenging operational conditions. It serves well in automated material handling systems, sterilized packaging lines, and corrosion-critical environments.
