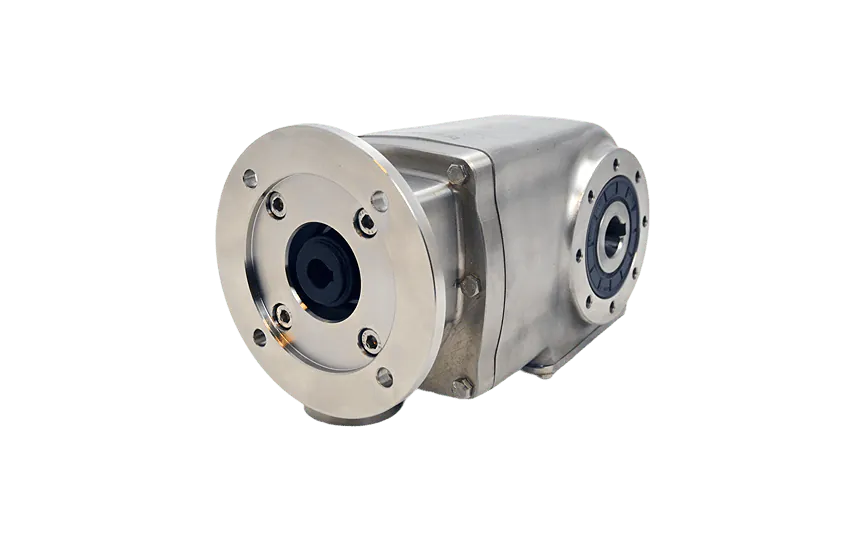

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 37,57:1, input 90B14, V5, stainless steel
HV82PX62NI11-EFBN-TV5-E-OFThis gear unit features a gear ratio of 37.57:1 and two gear stages, offering stable torque transmission. With a BCD input of 115 mm and a BCD output of 130 mm, this gearbox ensures compatibility with standard setups. The gear input shaft is 24 mm in diameter, while the output shaft is a Ø35H7 hollow shaft.Constructed with AISI 316L stainless steel gears, this unit supports reliable operation in hygienic or corrosive environments. The gear motor interface is 90B14, allowing easy integration, and the unit achieves an efficiency of 96%.
Specifications
Product description
Downloads
€3,179.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
37,57:1
BCD input
115
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X62N
Output speed at 1400 RPM
37.3
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.7
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
**Manufacturer Overview:** Clean-Geartech is a specialized European manufacturer of high-performance stainless steel gear solutions tailored for demanding industrial sectors including food processing, pharmaceuticals, offshore, and chemical industries. The company is recognized for combining hygienic design principles with superior mechanical performance, ensuring both functionality and durability in corrosive and washdown-critical environments.**Key Features, Benefits, and Applications:**
Stainless Steel Housing (AISI 316L): Offers exceptional corrosion resistance, making it ideal for aggressive and hygienic environments such as food production, marine, and chemical processing industries.
Stainless Steel Hollow Output Shaft Ø35H7: Ensures high durability and hygiene compatibility while providing precise torque transmission for direct mounting of driven components like conveyors or mixers.
High Transmission Ratio 37.57:1: Enables significant torque amplification from a compact design, supporting high-load, low-speed applications in machinery and processing equipment.
Input Flange 90B14 Interface: Designed for seamless integration with IEC-standard motors, simplifying assembly and enabling high compatibility across various electric motor models.
Compact Gearbox Size X62N: Small footprint allows for installation in space-constrained environments or inside machinery housings, providing design flexibility for engineers.
Two-Stage Bevel Gear Design: Offers low noise operation and high mechanical efficiency through precise angular power transfer, ideal for use in automation, packaging, and robotic systems.
High Efficiency (96%): Reduces energy loss, contributing to better operational cost-efficiency and minimized heat generation in continuous industrial processes.
Input Shaft Ø24 mm in Stainless Steel: Enhances robustness and ensures corrosion resistance, particularly suited for clean-in-place (CIP) systems and washdown zones.
Corrosion-Proof and Easy to Clean: The fully stainless body and hygienic design prevent bacterial accumulation, meeting stringent sanitary requirements in food and pharmaceutical applications.**Recommended Applications:**
Perfect for conveyor belt drives in meat, dairy, and beverage industries where hygiene is critical.
Ideal for offshore and marine applications exposed to salt spray and chemical cleaning agents.
Suitable for use in chemical reactors and pharmaceutical mixers due to material compatibility and precise torque control.
Used in robotic arms or automation lines requiring reliable 90-degree power transfer with minimal backlash.
Stainless Steel Housing (AISI 316L): Offers exceptional corrosion resistance, making it ideal for aggressive and hygienic environments such as food production, marine, and chemical processing industries.
Stainless Steel Hollow Output Shaft Ø35H7: Ensures high durability and hygiene compatibility while providing precise torque transmission for direct mounting of driven components like conveyors or mixers.
High Transmission Ratio 37.57:1: Enables significant torque amplification from a compact design, supporting high-load, low-speed applications in machinery and processing equipment.
Input Flange 90B14 Interface: Designed for seamless integration with IEC-standard motors, simplifying assembly and enabling high compatibility across various electric motor models.
Compact Gearbox Size X62N: Small footprint allows for installation in space-constrained environments or inside machinery housings, providing design flexibility for engineers.
Two-Stage Bevel Gear Design: Offers low noise operation and high mechanical efficiency through precise angular power transfer, ideal for use in automation, packaging, and robotic systems.
High Efficiency (96%): Reduces energy loss, contributing to better operational cost-efficiency and minimized heat generation in continuous industrial processes.
Input Shaft Ø24 mm in Stainless Steel: Enhances robustness and ensures corrosion resistance, particularly suited for clean-in-place (CIP) systems and washdown zones.
Corrosion-Proof and Easy to Clean: The fully stainless body and hygienic design prevent bacterial accumulation, meeting stringent sanitary requirements in food and pharmaceutical applications.**Recommended Applications:**
Perfect for conveyor belt drives in meat, dairy, and beverage industries where hygiene is critical.
Ideal for offshore and marine applications exposed to salt spray and chemical cleaning agents.
Suitable for use in chemical reactors and pharmaceutical mixers due to material compatibility and precise torque control.
Used in robotic arms or automation lines requiring reliable 90-degree power transfer with minimal backlash.
