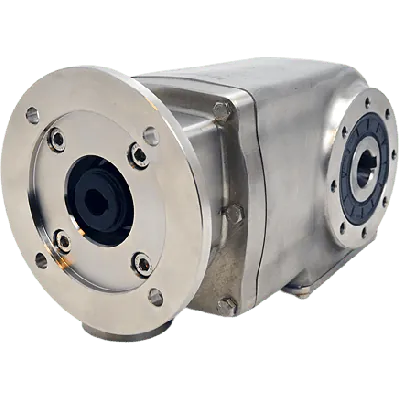

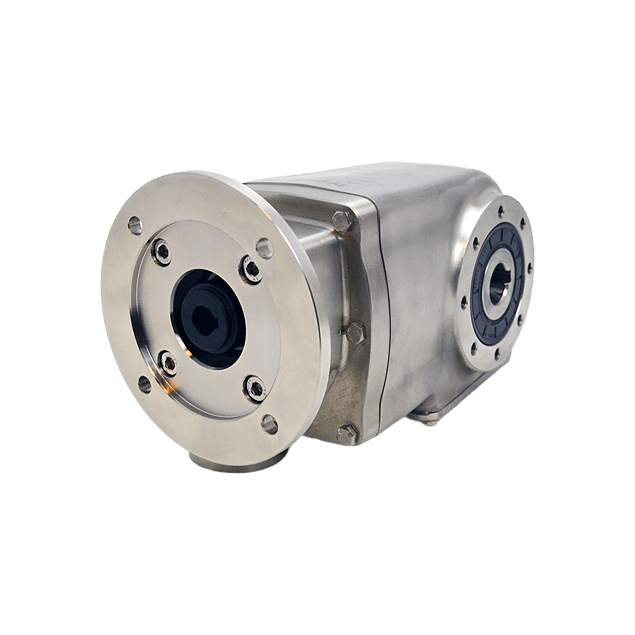

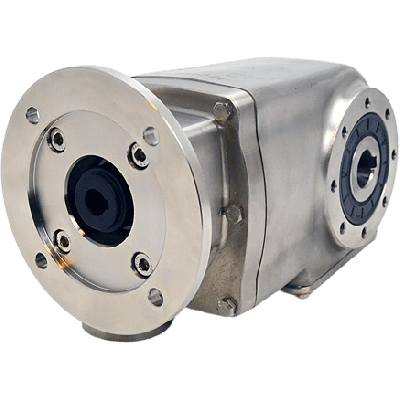

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 37,57:1, input 80B14, B3, stainless steel
HV82PX62NI11-EFBN-RB3-D-OFFeaturing a gear ratio of 37.57:1 and 2 gear stages, this unit ensures consistent torque transmission. It offers 96% efficiency, supported by a 19 mm gear input shaft and a 35 mm gear output shaft. The gear material is stainless steel AISI 316L, making it well-suited for corrosive or hygienically critical environments. The output is configured as Ø35H7 hollow shaft and the input interface is 80B14. The housing is classified under gear size X62N. The BCD input is 100 mm and the BCD output is 130 mm, allowing easy integration with standard motor and machine setups.
Specifications
Product description
Downloads
€3,044.00
In stock
Expected shipment:
Loading...

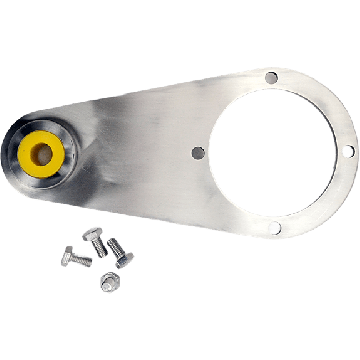

Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
37,57:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
37.3
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium European manufacturer specializing in designing and producing high-performance hygienic gearboxes for demanding industrial applications. Their products are engineered for reliability, corrosion resistance, and optimal performance in environments that require frequent washdowns, chemical exposure, or ultra-clean conditions. Built to meet the highest engineering standards, Clean-Geartech gearboxes are trusted across the food- and beverage industry, pharmaceutical manufacturing, and marine sector.Key Features and Application Benefits:
• Fully constructed in AISI 316L stainless steel, the gearbox offers excellent corrosion resistance, making it ideal for aggressive environments like food processing, chemical handling, or marine applications.
• Efficient two-stage helical-bevel gearing with a ratio of 37.57:1 ensures smooth torque conversion and accurate speed reduction, suitable for precision mechanical systems and conveyor applications.
• High energy-efficiency, rated at 96%, reduces operational costs and heat dissipation, supporting continuous-duty operations in energy-conscious industrial environments.
• Ø35 mm hollow output shaft with H7 tolerance ensures tight and reliable fits for driven elements, supporting applications requiring high axial and radial load capacities.
• 80B14 motor interface provides standardized integration with IEC motors, simplifying assembly and system retrofits for maintenance engineers and OEM designers.
• Compact footprint thanks to X62N housing allows installation in space-constrained layouts such as automated packaging lines or bottling systems.
• 19 mm input shaft with robust bearing arrangement ensures mechanical stability during dynamic loads, suitable for torque-intensive setups such as mixers or augers.
• Hygienic, crevice-free design supports clean-in-place (CIP) workflows, minimizing downtime in regulated environments like biotech or pharmaceutical plants.
• Double-stage reduction combined with rigid internal gearing construction ensures vibration resistance, essential for precision motion control applications.
• Trusted Clean-Geartech engineering ensures long service life and reduced maintenance intervals – ideal for engineers seeking low total cost of ownership in critical systems.
• Fully constructed in AISI 316L stainless steel, the gearbox offers excellent corrosion resistance, making it ideal for aggressive environments like food processing, chemical handling, or marine applications.
• Efficient two-stage helical-bevel gearing with a ratio of 37.57:1 ensures smooth torque conversion and accurate speed reduction, suitable for precision mechanical systems and conveyor applications.
• High energy-efficiency, rated at 96%, reduces operational costs and heat dissipation, supporting continuous-duty operations in energy-conscious industrial environments.
• Ø35 mm hollow output shaft with H7 tolerance ensures tight and reliable fits for driven elements, supporting applications requiring high axial and radial load capacities.
• 80B14 motor interface provides standardized integration with IEC motors, simplifying assembly and system retrofits for maintenance engineers and OEM designers.
• Compact footprint thanks to X62N housing allows installation in space-constrained layouts such as automated packaging lines or bottling systems.
• 19 mm input shaft with robust bearing arrangement ensures mechanical stability during dynamic loads, suitable for torque-intensive setups such as mixers or augers.
• Hygienic, crevice-free design supports clean-in-place (CIP) workflows, minimizing downtime in regulated environments like biotech or pharmaceutical plants.
• Double-stage reduction combined with rigid internal gearing construction ensures vibration resistance, essential for precision motion control applications.
• Trusted Clean-Geartech engineering ensures long service life and reduced maintenance intervals – ideal for engineers seeking low total cost of ownership in critical systems.
