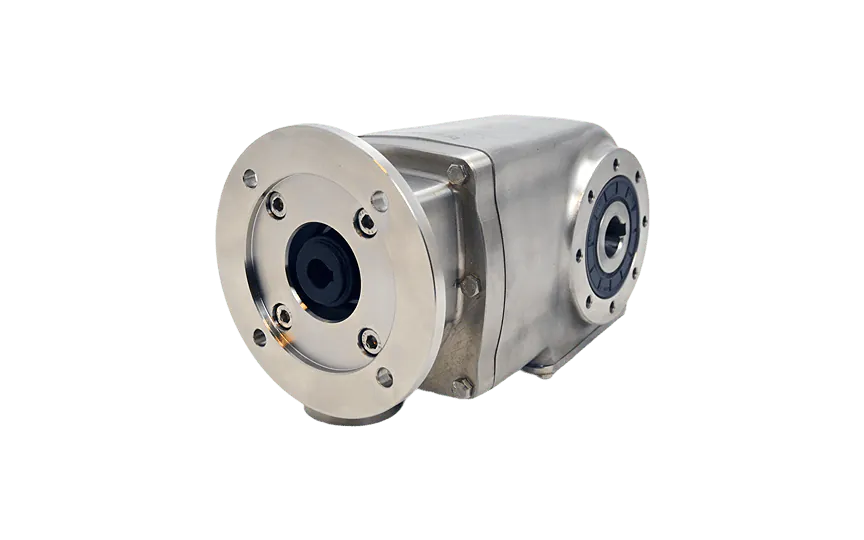

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 35,35:1, input 90B14, V5, stainless steel
HV82PX62NI10-EFBN-TV5-E-OFThis gear unit features a gear ratio of 35.35:1 and operates at an efficiency of 96%. It supports a 24 mm input shaft and provides a 35 mm output shaft in Ø35H7 hollow configuration. The gear size is X62N with two gear stages. The gear motor interface is 90B14, ensuring compatibility with standard motor mounts. Constructed with gears made from stainless steel AISI 316L, it offers high resistance in corrosive environments.BCD input: 115 mm, BCD output: 130 mm. Suitable for hygienic and corrosive applications where robust performance is required.
Specifications
Product description
Downloads
€3,179.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
35,35:1
BCD input
115
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X62N
Output speed at 1400 RPM
39.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.8
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a reliable and innovative manufacturer specializing in high-performance hygienic drive solutions for demanding industrial environments. With a strong focus on cleanability, material integrity, and long-lasting operation, Clean-Geartech gearboxes are trusted across the pharmaceutical, food processing, chemical, and marine sectors. Manufactured from high-grade materials like AISI 316L stainless steel, these gearboxes are designed for optimal resistance to corrosion, aggressive cleaning agents, and mechanical wear.Product Highlights and Application Possibilities:
• Housing made from corrosion-resistant AISI 316L stainless steel ensures exceptional durability and hygiene, ideal for food, beverage, and pharmaceutical applications requiring frequent washdowns.
• High efficiency of 96% reduces energy consumption and thermal losses, supporting sustainable and cost-effective system integration.
• 35,35:1 gear ratio offers precise torque multiplication, making it suitable for low-speed, high-torque operations such as automated conveyors, agitators, and precision manufacturing systems.
• Ø35H7 stainless steel hollow output shaft enables direct coupling with driven shafts for compact installation and enhanced torsional rigidity in mechanical systems.
• Designed with a 90B14 input flange, providing easy and standardized motor interfacing for flexible assembly and replacement in industrial setups.
• 2-stage bevel gear configuration within a compact X62N housing delivers smooth power transfer and reduced maintenance – suitable for dynamic load cycles and reversing operations.
• 24mm input shaft dimension supports compatibility with a wide range of drive motors, increasing design versatility in complex machinery.
• Ideal for use in cleanroom environments, food-grade machinery, or applications with strict sanitary requirements, due to the smooth surface finish and crevice-free design. With its hygienic design, robust construction, and engineering-grade precision, the Clean-Geartech X62N bevel gearbox provides long-term reliability and performance for critical industrial operations.
• Housing made from corrosion-resistant AISI 316L stainless steel ensures exceptional durability and hygiene, ideal for food, beverage, and pharmaceutical applications requiring frequent washdowns.
• High efficiency of 96% reduces energy consumption and thermal losses, supporting sustainable and cost-effective system integration.
• 35,35:1 gear ratio offers precise torque multiplication, making it suitable for low-speed, high-torque operations such as automated conveyors, agitators, and precision manufacturing systems.
• Ø35H7 stainless steel hollow output shaft enables direct coupling with driven shafts for compact installation and enhanced torsional rigidity in mechanical systems.
• Designed with a 90B14 input flange, providing easy and standardized motor interfacing for flexible assembly and replacement in industrial setups.
• 2-stage bevel gear configuration within a compact X62N housing delivers smooth power transfer and reduced maintenance – suitable for dynamic load cycles and reversing operations.
• 24mm input shaft dimension supports compatibility with a wide range of drive motors, increasing design versatility in complex machinery.
• Ideal for use in cleanroom environments, food-grade machinery, or applications with strict sanitary requirements, due to the smooth surface finish and crevice-free design. With its hygienic design, robust construction, and engineering-grade precision, the Clean-Geartech X62N bevel gearbox provides long-term reliability and performance for critical industrial operations.
