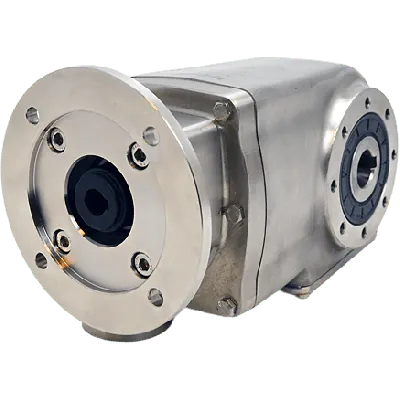

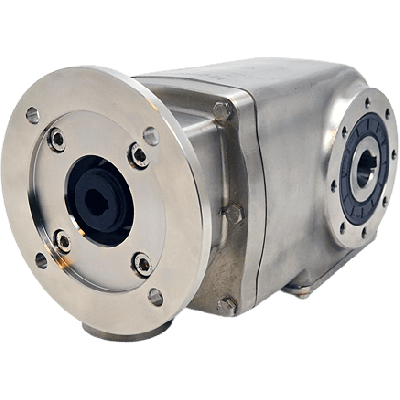

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 35,35:1, input 90B14, B3, stainless steel
HV82PX62NI10-EFBN-TB3-E-OFThis unit features a gear ratio of 35.35:1 and efficiency of 96%, delivering effective torque conversion across 2 gear stages. It has a Ø24 mm gear input shaft and a Ø35 mm hollow gear output shaft. The GEAR material is stainless steel AISI 316L for corrosion resistance in demanding applications. The gear motor interface is 90B14, suitable for standardized motor mounting. It is built in gear size X62N, with input code 115 and output code 130 for system integration.
Specifications
Product description
Downloads
€3,048.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
35,35:1
BCD input
115
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X62N
Output speed at 1400 RPM
39.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in advanced stainless steel transmission solutions. With a strong focus on hygienic design, reliability, and durability, Clean-Geartech products are widely used in food processing, pharmaceutical, chemical, and marine industries where corrosion resistance and cleanability are critical.Product Features, Benefits, and Applications:
✓ Bevel gear design ensures compact and efficient power transmission for applications requiring angular torque conversion, ideal for handling machinery and conveyors.
✓ Ratio of 35.35:1 enables precise speed reduction, providing optimal torque output for slow-moving, high-load industrial processes.
✓ High efficiency of 96% minimizes energy loss, lowers operational costs, and supports sustainability objectives in automation systems.
✓ Gear housing constructed from corrosion-resistant AISI 316L stainless steel ensures long service life in aggressive environments, particularly suited for wash-down and CIP areas.
✓ Ø35H7 hollow output shaft in stainless steel supports direct shaft mounting for simplified assembly and stable operation in sanitary applications.
✓ Ø24 mm input shaft compatible with standard motor sizes allows flexibility in drive system integration for custom OEM machinery or retrofits.
✓ 90B14 motor interface supports a wide range of IEC-standard electric motors, enabling plug-and-play installation and cross-brand motor compatibility.
✓ Two-stage gearing enhances torque multiplication and operational reliability under dynamic loads, suitable for high-performance bottling, packaging, and dosing systems.
✓ Compact gear size X62N allows installation in space-constrained arrangements while delivering industrial-grade power transmission performance.
✓ 130 mm BCD output flange and 115 mm BCD input flange ensure compatibility with standardized mechanical interfaces, simplifying system design.The Clean-Geartech X62N gearbox combines robust stainless steel construction with high-performance gearing, offering an optimal solution for harsh industrial conditions requiring hygiene, strength, and precision.
✓ Bevel gear design ensures compact and efficient power transmission for applications requiring angular torque conversion, ideal for handling machinery and conveyors.
✓ Ratio of 35.35:1 enables precise speed reduction, providing optimal torque output for slow-moving, high-load industrial processes.
✓ High efficiency of 96% minimizes energy loss, lowers operational costs, and supports sustainability objectives in automation systems.
✓ Gear housing constructed from corrosion-resistant AISI 316L stainless steel ensures long service life in aggressive environments, particularly suited for wash-down and CIP areas.
✓ Ø35H7 hollow output shaft in stainless steel supports direct shaft mounting for simplified assembly and stable operation in sanitary applications.
✓ Ø24 mm input shaft compatible with standard motor sizes allows flexibility in drive system integration for custom OEM machinery or retrofits.
✓ 90B14 motor interface supports a wide range of IEC-standard electric motors, enabling plug-and-play installation and cross-brand motor compatibility.
✓ Two-stage gearing enhances torque multiplication and operational reliability under dynamic loads, suitable for high-performance bottling, packaging, and dosing systems.
✓ Compact gear size X62N allows installation in space-constrained arrangements while delivering industrial-grade power transmission performance.
✓ 130 mm BCD output flange and 115 mm BCD input flange ensure compatibility with standardized mechanical interfaces, simplifying system design.The Clean-Geartech X62N gearbox combines robust stainless steel construction with high-performance gearing, offering an optimal solution for harsh industrial conditions requiring hygiene, strength, and precision.
