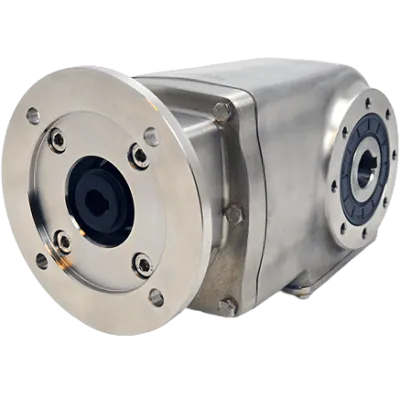

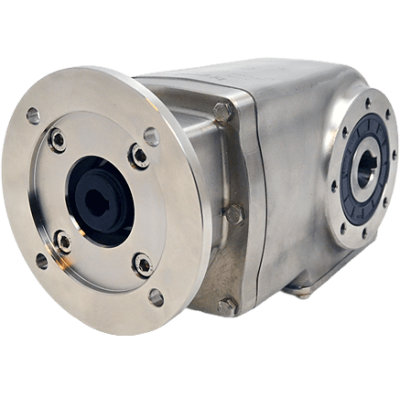

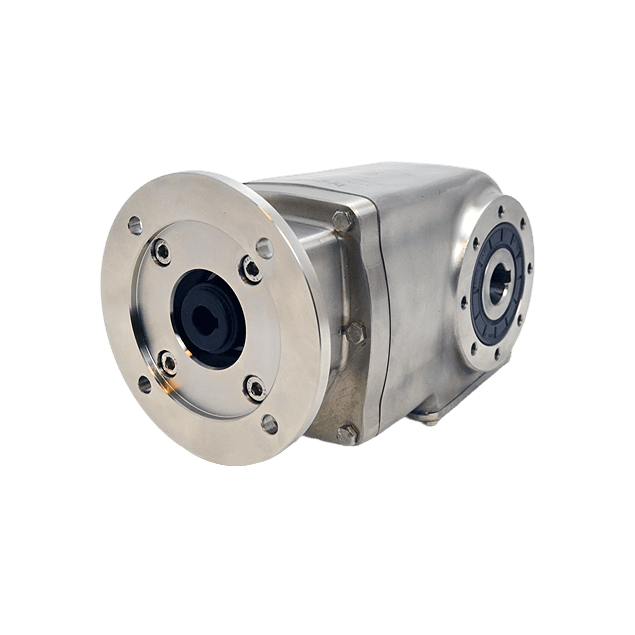

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 35,35:1, input 80B14, B3, stainless steel
HV82PX62NI10-EFBN-RB3-D-OFThis gear unit features a gear ratio of 35.35:1 and two gear stages for robust torque transmission. The gear input shaft measures 19 mm, while the output shaft is Ø35H7. Constructed with gears made of stainless steel AISI 316L, it offers improved durability in aggressive environments. The gear motor interface is 80B14 and the gear size is X62N. With a nominal efficiency of 96%, it ensures energy-efficient operation. The BCD input is 100 and the BCD output is 130, making it compatible with standard motor flanges and mounting setups.
Specifications
Product description
Downloads
€3,044.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
35,35:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
39.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X62N Bevel Gearbox is engineered for demanding industrial environments requiring durability, hygiene, and high performance. Manufactured by Clean-Geartech — a leading brand known for its innovative and robust stainless steel gearing solutions — this gearbox is ideal for sectors such as food processing, pharmaceuticals, cleanroom systems, marine, and chemical processing. Clean-Geartech specializes in corrosion-resistant gear technology, offering unmatched reliability in applications where cleanliness, durability, and precision are paramount.**Key Features and Application Benefits:**
Robust stainless steel AISI 316L construction ensures exceptional corrosion resistance, making it ideal for harsh chemical and washdown environments such as food production and pharmaceutical facilities.
High-efficiency rating of 96% reduces energy consumption and heat generation, delivering consistent performance with low energy loss, critical for continuous operation systems.
Stainless steel Ø35H7 hollow output shaft offers compatibility with various driven components while withstanding high loads and torque in hygienic applications.
Compact gear size X62N allows for space-saving integration in tight installations and automation systems without compromising power output.
Standard 80B14 input flange ensures seamless motor connectivity, facilitating easy integration with motors complying to IEC flange standards — simplifying system upgrades and replacements.
Two-stage bevel gear transmission with a precise 35.35:1 gear ratio provides high torque output with stable, vibration-free operation — suitable for conveyor systems, bottling plants, and mixer drives.
19 mm input shaft diameter provides robust torque transfer, supporting industrial motor coupling solutions and reducing misalignment risks.
Designed for industries demanding hygienic design, such as dairy, meat processing, pharmaceutical filling lines, and cleanroom conveyor systems, due to its smooth surfaces and fully stainless housing that eliminates contamination traps.
BCD Input: 100 mm and BCD Output: 130 mm ensures alignment compatibility with industry-standard mountings in automation environments.The Clean-Geartech X62N is a high-performance bevel gearbox built for engineers and technical professionals who require operational reliability and sanitary design in demanding applications.
Robust stainless steel AISI 316L construction ensures exceptional corrosion resistance, making it ideal for harsh chemical and washdown environments such as food production and pharmaceutical facilities.
High-efficiency rating of 96% reduces energy consumption and heat generation, delivering consistent performance with low energy loss, critical for continuous operation systems.
Stainless steel Ø35H7 hollow output shaft offers compatibility with various driven components while withstanding high loads and torque in hygienic applications.
Compact gear size X62N allows for space-saving integration in tight installations and automation systems without compromising power output.
Standard 80B14 input flange ensures seamless motor connectivity, facilitating easy integration with motors complying to IEC flange standards — simplifying system upgrades and replacements.
Two-stage bevel gear transmission with a precise 35.35:1 gear ratio provides high torque output with stable, vibration-free operation — suitable for conveyor systems, bottling plants, and mixer drives.
19 mm input shaft diameter provides robust torque transfer, supporting industrial motor coupling solutions and reducing misalignment risks.
Designed for industries demanding hygienic design, such as dairy, meat processing, pharmaceutical filling lines, and cleanroom conveyor systems, due to its smooth surfaces and fully stainless housing that eliminates contamination traps.
BCD Input: 100 mm and BCD Output: 130 mm ensures alignment compatibility with industry-standard mountings in automation environments.The Clean-Geartech X62N is a high-performance bevel gearbox built for engineers and technical professionals who require operational reliability and sanitary design in demanding applications.
