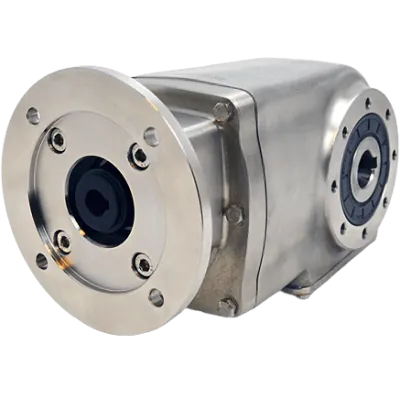

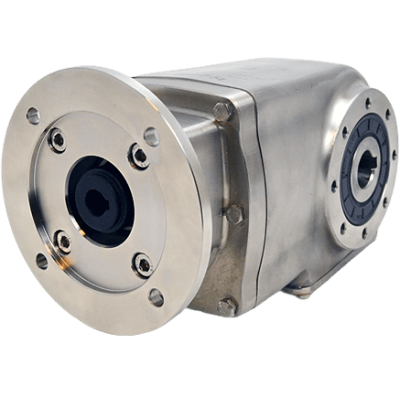

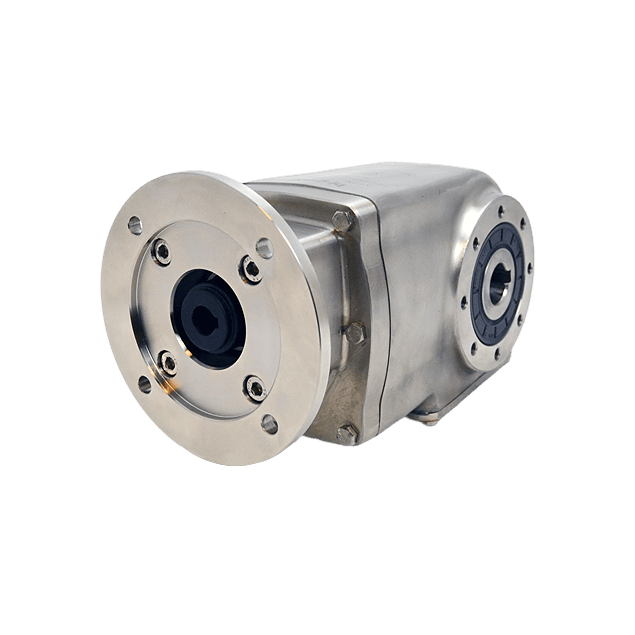

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 35,35:1, input 100/112B14, V5, stainless steel
HV82PX62NI10-EFBN-UV5-F-OFThe unit is equipped with a Ø35 mm hollow output shaft and a Ø28 mm input shaft. The gear housing and components are made from stainless steel AISI 316L for high durability in aggressive environments. It supports a motor interface of 100/112B14 and offers a mechanical efficiency of 96%. The system has BCD input and output dimensions of 130 mm and comes in a gear size X62N configuration. Ideal where hygiene and corrosion resistance are critical.
Specifications
Product description
Downloads
€3,203.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
35,35:1
BCD input
130
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
X62N
Output speed at 1400 RPM
39.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
1.8
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a high-performance manufacturer specializing in hygienic, stainless steel gear solutions engineered for demanding industrial environments. With a focus on durability, efficiency, and compliance with strict hygiene standards, Clean-Geartech gearboxes are widely trusted in food processing, pharmaceutical, chemical, and marine industries. Built from premium materials such as AISI 316L stainless steel, they ensure longevity, corrosion resistance, and optimal performance under intensive operating conditions.Key Features, Benefits, and Applications:
• Fabricated from corrosion-resistant AISI 316L stainless steel, the gear housing and hollow shaft offer exceptional durability in aggressive environments, making it ideal for food, pharmaceutical, and offshore applications.
• Ø35H7 stainless steel hollow output shaft ensures precision fit and reliability when integrated with driven components, reducing mechanical losses and improving system efficiency.
• High mechanical efficiency of 96% enhances energy savings and reduces operational costs in continuous-duty industrial installations.
• Gear ratio of 35.35:1 enables substantial torque multiplication, suitable for heavy-duty applications requiring controlled motion and high output torque at reduced speed.
• 2-stage bevel gearing system provides compact and robust torque transmission with minimal backlash, supporting applications requiring accurate positioning and smooth motion profiles.
• Input interface compatible with 100/112B14 motor flanges ensures plug-and-play integration with widely used IEC-standard motors for easy deployment across various systems.
• 28 mm input shaft crafted for smooth transmission and universal connectivity to standard motor drives, enhancing modularity and reducing lead time.
• Gear size X62N optimized for space-efficient power transmission without compromising structural integrity—well-suited for conveyor systems, mixers, and lifting equipment.
• Complete stainless steel build meets high hygiene demands, resisting frequent washdowns and chemical cleaning, critical in cleanroom and sanitary production environments.
• Designed for technical specialists and engineers seeking reliable, low-maintenance gear solutions with high resistance to wear, thermal variation, and contamination.
• Fabricated from corrosion-resistant AISI 316L stainless steel, the gear housing and hollow shaft offer exceptional durability in aggressive environments, making it ideal for food, pharmaceutical, and offshore applications.
• Ø35H7 stainless steel hollow output shaft ensures precision fit and reliability when integrated with driven components, reducing mechanical losses and improving system efficiency.
• High mechanical efficiency of 96% enhances energy savings and reduces operational costs in continuous-duty industrial installations.
• Gear ratio of 35.35:1 enables substantial torque multiplication, suitable for heavy-duty applications requiring controlled motion and high output torque at reduced speed.
• 2-stage bevel gearing system provides compact and robust torque transmission with minimal backlash, supporting applications requiring accurate positioning and smooth motion profiles.
• Input interface compatible with 100/112B14 motor flanges ensures plug-and-play integration with widely used IEC-standard motors for easy deployment across various systems.
• 28 mm input shaft crafted for smooth transmission and universal connectivity to standard motor drives, enhancing modularity and reducing lead time.
• Gear size X62N optimized for space-efficient power transmission without compromising structural integrity—well-suited for conveyor systems, mixers, and lifting equipment.
• Complete stainless steel build meets high hygiene demands, resisting frequent washdowns and chemical cleaning, critical in cleanroom and sanitary production environments.
• Designed for technical specialists and engineers seeking reliable, low-maintenance gear solutions with high resistance to wear, thermal variation, and contamination.
