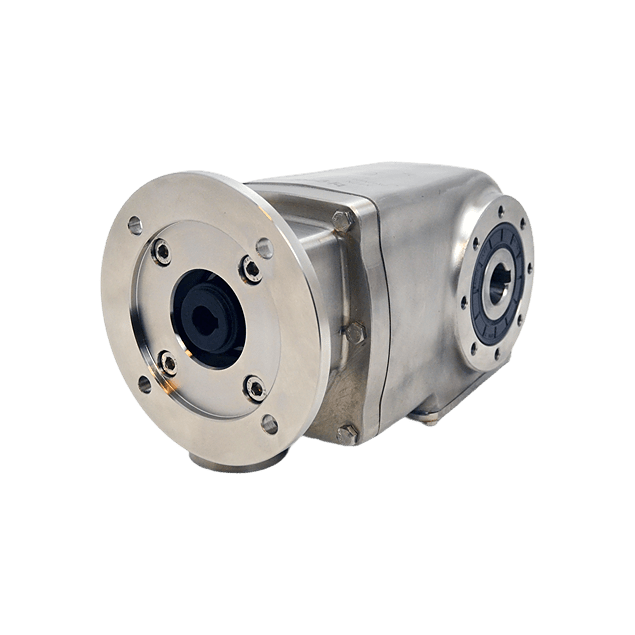

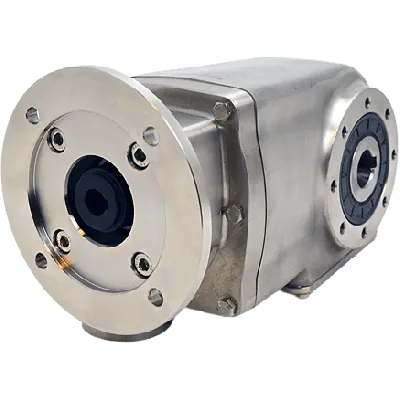

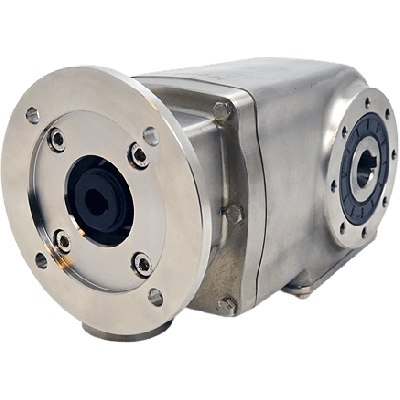

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 30,69:1, input 90B14, B3, stainless steel
HV82PX62NI09-EFBN-TB3-E-OFThis unit features a gear ratio of 30.69:1 and a 96% efficiency. The gear size is X62N with 2 gear stages, designed for compact yet powerful performance. It comes with a 90B14 gear motor interface and a 24 mm gear input shaft. The hollow output shaft is Ø35H7 mm, providing reliable torque transmission. The internal gearing is made from stainless steel AISI 316L, ensuring resistance to aggressive cleaning processes and corrosion. Input and output BCD dimensions are 115 mm and 130 mm respectively, supporting standard mounting compatibility.
Specifications
Product description
Downloads
€3,048.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
30,69:1
BCD input
115
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X62N
Output speed at 1400 RPM
45.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted manufacturer known for its high-performance, corrosion-resistant drive components designed specifically for demanding industrial applications. Renowned for precision engineering and exceptional durability, Clean-Geartech provides gearbox solutions ideal for use in harsh environments where hygiene, robustness, and performance are critical.The Clean-Geartech X62N is a stainless steel right-angle bevel gearbox engineered with a focus on reliability, cleanability, and efficiency. It offers optimal performance in applications requiring improved durability, hygiene, and compact installation. Below are the key applications, benefits, and technical features of the X62N gearbox:
Stainless steel housing (AISI 316L) provides maximum resistance to corrosion and chemicals, making it ideal for industries requiring frequent washdowns such as food processing, pharmaceuticals, and marine applications.
High efficiency of up to 96% ensures reduced energy loss and lower operating costs, even in continuous duty applications under demanding conditions.
Bevel gear construction (two-stage) enables compact, right-angle power transmission, perfect for space-constrained installation settings and optimized mechanical layouts.
Large Ø35H7 stainless steel hollow output shaft ensures precise torque transmission and enhanced resistance to wear in harsh mechanical environments.
Compatible with IEC 90B14 motor interface for easy integration with standard motor configurations used in industrial automation systems.
Precise gear ratio of 30.69:1 allows for controlled speed reduction and torque multiplication in conveyor systems, mixers, and rotary actuators.
Input shaft Ø24 mm provides high mechanical compatibility with various motor types, supporting seamless retrofitting or upgrades.
Compact X62N size and 2-stage gearing offer optimal balance between performance and size, ideal for OEM machine builders and automation systems.Whether deployed in hygienic conveyor lines, corrosive industrial environments, or precision drive systems, the Clean-Geartech X62N bevel gearbox delivers long-term efficiency, low maintenance, and premium mechanical performance.
Stainless steel housing (AISI 316L) provides maximum resistance to corrosion and chemicals, making it ideal for industries requiring frequent washdowns such as food processing, pharmaceuticals, and marine applications.
High efficiency of up to 96% ensures reduced energy loss and lower operating costs, even in continuous duty applications under demanding conditions.
Bevel gear construction (two-stage) enables compact, right-angle power transmission, perfect for space-constrained installation settings and optimized mechanical layouts.
Large Ø35H7 stainless steel hollow output shaft ensures precise torque transmission and enhanced resistance to wear in harsh mechanical environments.
Compatible with IEC 90B14 motor interface for easy integration with standard motor configurations used in industrial automation systems.
Precise gear ratio of 30.69:1 allows for controlled speed reduction and torque multiplication in conveyor systems, mixers, and rotary actuators.
Input shaft Ø24 mm provides high mechanical compatibility with various motor types, supporting seamless retrofitting or upgrades.
Compact X62N size and 2-stage gearing offer optimal balance between performance and size, ideal for OEM machine builders and automation systems.Whether deployed in hygienic conveyor lines, corrosive industrial environments, or precision drive systems, the Clean-Geartech X62N bevel gearbox delivers long-term efficiency, low maintenance, and premium mechanical performance.
