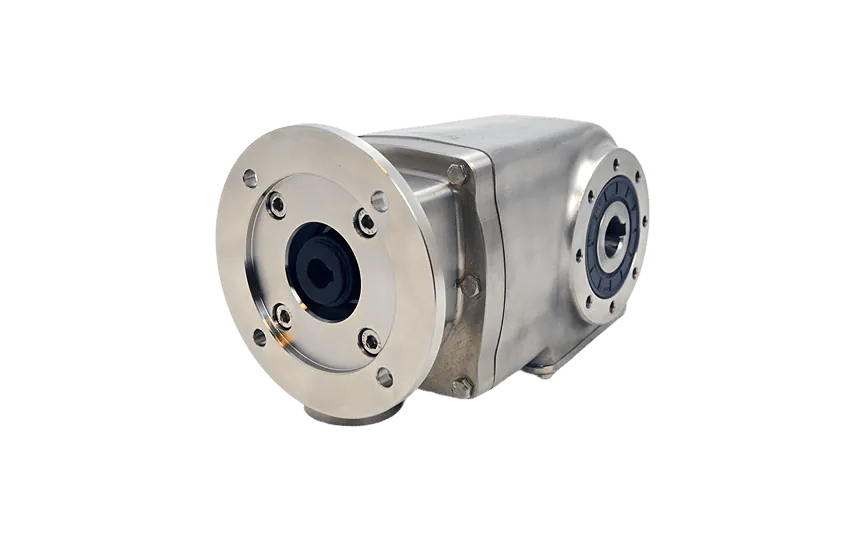

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 30,69:1, input 80B14, V5, stainless steel
HV82PX62NI09-EFBN-RV5-D-OFThe Clean-Geartech X62N, bevel gear Ø35H7 hollow shaft, 30.69:1, input 80B14, stainless steel, is designed for demanding industrial environments where hygiene, corrosion resistance, and durability are critical. This gear unit features a gear ratio of 30.69:1 and delivers 96% efficiency across its 2-stage transmission. It is built with gears made of stainless steel AISI 316L and fitted with a Ø35 mm hollow output shaft and Ø19 mm input shaft. The unit interfaces via a gear motor flange size 80B14 and has a gear size designation X62N. Both the housing and key components are corrosion-resistant, supporting operation in washdown or hygienic zones. The BCD input is 100 mm, and the BCD output is 130 mm.
Specifications
Product description
Downloads
€3,176.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
30,69:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
45.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
2
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in premium-grade, corrosion-resistant gear solutions designed for demanding industrial environments. Known for precision engineering and hygienic design, Clean-Geartech products are trusted by engineers and technical specialists working in sectors such as food & beverage processing, pharmaceuticals, marine, and chemical processing.
High-Quality Stainless Steel Housing (AISI 316L): Offers exceptional resistance to corrosion, chemicals, and aggressive cleaning agents—ideal for hygienic and washdown applications in food, beverage, and pharmaceutical industries.
Stainless Steel Ø35H7 Hollow Output Shaft: The hollow shaft allows for easy integration with driven shafts while the stainless steel material ensures superior strength and corrosion resistance—perfect for sanitary and marine environments.
Input Interface: IEC 80B14 Flange: Standardized motor interface ensures quick and secure connection to IEC-standard motors, minimizing downtime during maintenance and enabling flexible motor selection.
High Mechanical Efficiency (96%): Delivers efficient power transmission and reduced energy loss—suitable for energy-conscious automation and continuous operation systems.
Precision Ratio of 30.69:1: Provides accurate speed reduction and increased torque output, well-suited for lifting, mixing, and conveying applications where precise motion control is essential.
Robust Two-Stage Bevel Gear Design: Ensures smooth torque transmission and low noise in compact form factor—beneficial for confined machine layouts and high-cycle industrial automation processes.
Compact Frame Size (X62N): Optimized space efficiency without compromising power density; ideal for OEMs and system integrators facing footprint constraints.
Universal Application Range: Designed for use in sterile production lines, offshore equipment, chemical dosing systems, robotic assemblies, and more.Clean-Geartech’s X62N bevel gearbox sets the standard for industrial gear units by combining hygienic design with high performance, making it the go-to choice for engineers looking for long-lasting and flexible power transmission solutions in harsh or regulated environments.
High-Quality Stainless Steel Housing (AISI 316L): Offers exceptional resistance to corrosion, chemicals, and aggressive cleaning agents—ideal for hygienic and washdown applications in food, beverage, and pharmaceutical industries.
Stainless Steel Ø35H7 Hollow Output Shaft: The hollow shaft allows for easy integration with driven shafts while the stainless steel material ensures superior strength and corrosion resistance—perfect for sanitary and marine environments.
Input Interface: IEC 80B14 Flange: Standardized motor interface ensures quick and secure connection to IEC-standard motors, minimizing downtime during maintenance and enabling flexible motor selection.
High Mechanical Efficiency (96%): Delivers efficient power transmission and reduced energy loss—suitable for energy-conscious automation and continuous operation systems.
Precision Ratio of 30.69:1: Provides accurate speed reduction and increased torque output, well-suited for lifting, mixing, and conveying applications where precise motion control is essential.
Robust Two-Stage Bevel Gear Design: Ensures smooth torque transmission and low noise in compact form factor—beneficial for confined machine layouts and high-cycle industrial automation processes.
Compact Frame Size (X62N): Optimized space efficiency without compromising power density; ideal for OEMs and system integrators facing footprint constraints.
Universal Application Range: Designed for use in sterile production lines, offshore equipment, chemical dosing systems, robotic assemblies, and more.Clean-Geartech’s X62N bevel gearbox sets the standard for industrial gear units by combining hygienic design with high performance, making it the go-to choice for engineers looking for long-lasting and flexible power transmission solutions in harsh or regulated environments.
