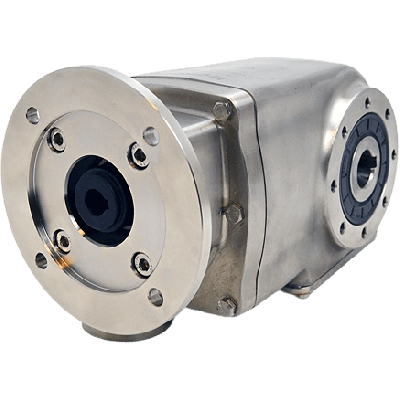

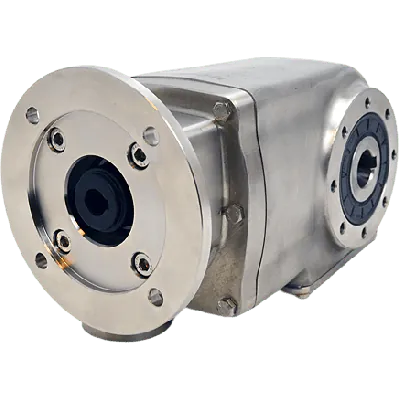

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 30,69:1, input 80B14, B3, stainless steel
HV82PX62NI09-EFBN-RB3-D-OFThis gear unit features a gear size of X62N and a gear ratio of 30.69:1. It has a BCD input of 100 mm and a BCD output of 130 mm, with a gear input shaft diameter of 19 mm and a gear output shaft Ø35H7 mm. The gearbox is built with 2 gear stages and offers a mechanical efficiency of 96%. It is equipped with a gear motor interface of type 80B14. All gear components are made from stainless steel AISI 316L for enhanced corrosion protection.
Specifications
Product description
Downloads
€3,044.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
30,69:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
45.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a recognized manufacturer of high-performance, hygienic gear solutions tailored for demanding industrial environments. Specializing in stainless steel gearboxes, Clean-Geartech supplies durable and corrosion-resistant components ideal for applications in the food, pharmaceutical, and chemical industries, where reliability and sanitary conditions are top priorities.Key Features, Benefits, and Applications:
High-performance bevel gearbox with precision 2-stage reduction (ratio 30.69:1) offering efficient torque conversion for motion control systems requiring compact angular transmission.
Full housing constructed from AISI 316L stainless steel, ensuring excellent corrosion resistance and optimal performance in aggressive or hygienic environments such as pharmaceutical plants and food processing lines.
Ø35H7 stainless steel hollow output shaft (SS hollow shaft) allows for easy integration in direct drive applications and supports corrosion resistance for marine or high-humidity installations.
Highly efficient power transmission design with up to 96% mechanical efficiency, reducing energy consumption and lowering operating costs, ideal for continuous-duty industrial applications.
19 mm input shaft compatible with standardized IEC 80B14 motor interface for rapid integration with a wide range of servo, asynchronous or explosion-proof motors.
Compact X62N gear size with optimized internal gearing enables high load endurance with minimal space requirement, suitable for both retrofitting and OEM machine designs.
Clean, maintenance-friendly design minimizes crevices and surface retention of debris, making it perfect for CIP (Clean-in-Place) processes and environments with strict sanitary regulations.
Torque transmission through bevel gear configuration ensures precise 90° output rotation, suitable for conveyors, mixers, robotics, and compact drive units in space-constrained installations.
Robust 2-stage gearing reduces mechanical stress and vibration, enhancing service life and performance stability in dynamic industrial operations such as packaging machinery and planetary mixers.This gear unit is a premium solution tailored to engineers and system integrators requiring durable, energy-efficient, and hygienic gearing technologies. Clean-Geartech continues to set industry standards for stainless steel drive components where cleanliness and reliability are paramount.
High-performance bevel gearbox with precision 2-stage reduction (ratio 30.69:1) offering efficient torque conversion for motion control systems requiring compact angular transmission.
Full housing constructed from AISI 316L stainless steel, ensuring excellent corrosion resistance and optimal performance in aggressive or hygienic environments such as pharmaceutical plants and food processing lines.
Ø35H7 stainless steel hollow output shaft (SS hollow shaft) allows for easy integration in direct drive applications and supports corrosion resistance for marine or high-humidity installations.
Highly efficient power transmission design with up to 96% mechanical efficiency, reducing energy consumption and lowering operating costs, ideal for continuous-duty industrial applications.
19 mm input shaft compatible with standardized IEC 80B14 motor interface for rapid integration with a wide range of servo, asynchronous or explosion-proof motors.
Compact X62N gear size with optimized internal gearing enables high load endurance with minimal space requirement, suitable for both retrofitting and OEM machine designs.
Clean, maintenance-friendly design minimizes crevices and surface retention of debris, making it perfect for CIP (Clean-in-Place) processes and environments with strict sanitary regulations.
Torque transmission through bevel gear configuration ensures precise 90° output rotation, suitable for conveyors, mixers, robotics, and compact drive units in space-constrained installations.
Robust 2-stage gearing reduces mechanical stress and vibration, enhancing service life and performance stability in dynamic industrial operations such as packaging machinery and planetary mixers.This gear unit is a premium solution tailored to engineers and system integrators requiring durable, energy-efficient, and hygienic gearing technologies. Clean-Geartech continues to set industry standards for stainless steel drive components where cleanliness and reliability are paramount.
