Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 30,69:1, input 100/112B14, B3, stainless steel
HV82PX62NI09-EFBN-UB3-F-OFThis gearbox features a 30.69:1 gear ratio and a 2-stage bevel gear configuration, delivering an efficiency of 96%. It is constructed with AISI 316L stainless steel gears and housing for high corrosion resistance. The Ø35H7 hollow output shaft and Ø28 mm solid input shaft ensure compatibility with standard industrial components. Designed for integration with IEC motors, it supports a 100/112B14 motor interface. The BCD input and output are both 130 mm, and it comes in Gear Size X62N.
Specifications
Product description
Downloads
€3,072.00
In stock
Expected shipment:
Loading...

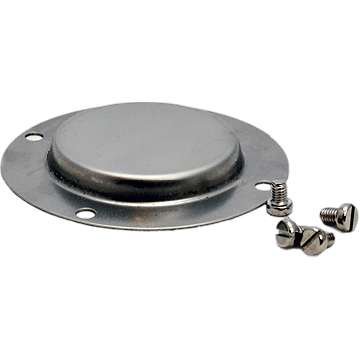

Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
30,69:1
BCD input
130
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
X62N
Output speed at 1400 RPM
45.6
Max output torque (Nm)
410
Max kW input at 1400 rpm
2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in high-performance stainless steel gear solutions designed for demanding industrial environments. With a focus on hygiene, durability, and mechanical precision, Clean-Geartech products are widely used in the food, pharmaceutical, chemical, and marine industries. Their X62N bevel gearbox showcases the brand’s commitment to quality engineering and reliability in corrosive and washdown applications.Main features, benefits, and applications:
Robust stainless steel AISI 316L housing resists corrosion, making the gearbox ideal for applications in aggressive environments such as food processing, chemical plants, and offshore installations.
High efficiency rating of 96% ensures energy-efficient power transmission and optimized system performance, particularly beneficial in continuous-duty automation processes.
The 30.69:1 gear ratio provides high torque output at low speeds, ideal for heavy-duty conveyors, mixers, and lifting applications that require precise torque control.
Equipped with a Ø35H7 stainless steel hollow output shaft, supporting easy and hygienic connection to driven machinery while minimizing contamination risk in sanitary environments.
Designed with a standard 100/112B14 motor interface for easy integration with IEC standard motors, facilitating modular machine designs and faster maintenance.
High-strength Ø28 mm input shaft supports dynamic applications with high radial and axial load demands, common in packaging, automation, and filling systems.
Two-stage bevel gear design provides compact power transmission with low backlash, suited for robotics, process line drives, and dynamic load handling.
Gear size X62N offers a compact footprint without compromising power, ideal for OEM machinery designs with space constraints but high performance requirements.
SS hollow shaft ensures full corrosion protection and complies with hygienic design standards, essential in CIP/SIP environments within food and pharmaceutical industries.
BCD input/output flange dimensions (130 mm) ensure compatibility with a wide range of industrial components and mechanical adapters, streamlining assembly processes.
Robust stainless steel AISI 316L housing resists corrosion, making the gearbox ideal for applications in aggressive environments such as food processing, chemical plants, and offshore installations.
High efficiency rating of 96% ensures energy-efficient power transmission and optimized system performance, particularly beneficial in continuous-duty automation processes.
The 30.69:1 gear ratio provides high torque output at low speeds, ideal for heavy-duty conveyors, mixers, and lifting applications that require precise torque control.
Equipped with a Ø35H7 stainless steel hollow output shaft, supporting easy and hygienic connection to driven machinery while minimizing contamination risk in sanitary environments.
Designed with a standard 100/112B14 motor interface for easy integration with IEC standard motors, facilitating modular machine designs and faster maintenance.
High-strength Ø28 mm input shaft supports dynamic applications with high radial and axial load demands, common in packaging, automation, and filling systems.
Two-stage bevel gear design provides compact power transmission with low backlash, suited for robotics, process line drives, and dynamic load handling.
Gear size X62N offers a compact footprint without compromising power, ideal for OEM machinery designs with space constraints but high performance requirements.
SS hollow shaft ensures full corrosion protection and complies with hygienic design standards, essential in CIP/SIP environments within food and pharmaceutical industries.
BCD input/output flange dimensions (130 mm) ensure compatibility with a wide range of industrial components and mechanical adapters, streamlining assembly processes.
