Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 24,45:1, input 100/112B14, V5, stainless steel
HV82PX62NI08-EFBN-UV5-F-OFThis bevel gear unit features a gear size X62N and a ratio of 24.45:1, offering stable transmission with high efficiency at 96%. The system is built with 2 gear stages and incorporates a 28 mm input shaft and a Ø35H7 hollow output shaft.Constructed from stainless steel AISI 316L, all mechanical components including the internal gearing are corrosion-resistant. The input and output BCDs are both 130 mm, and the unit supports gear motor interface 100/112B14, ensuring compatibility with standard motors. Suitable for hygienic and corrosive production environments.
Specifications
Product description
Downloads
€3,203.00
In stock
Expected shipment:
Loading...

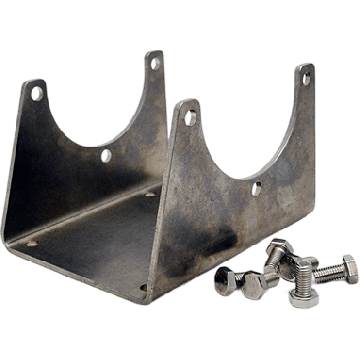

Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
24,45:1
BCD input
130
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
X62N
Output speed at 1400 RPM
57
Max output torque (Nm)
410
Max kW input at 1400 rpm
2.6
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a trusted European manufacturer specializing in high-performance gearboxes tailored for industries with stringent hygiene, corrosion resistance, and durability requirements. Known for their precision-engineered stainless steel solutions, Clean-Geartech products are extensively used in sectors such as food processing, pharmaceuticals, marine, chemical, and cleanroom environments.Key Features & Application Advantages:
• Manufactured entirely from corrosion-resistant AISI 316L stainless steel, ensuring long service life in aggressive, wash-down, and hygienic environments.
• Hollow output shaft with Ø35H7 tolerance made of stainless steel (SS), ideal for seamless and backlash-free integration with process machinery shafts.
• Direct input mounting interface 100/112B14 is compatible with IEC standard motors, simplifying installation and reducing integration time for OEM applications.
• High efficiency of 96% across the two-stage bevel gear design minimizes energy losses and supports sustainable system operation with lower heat generation.
• Ratio of 24.45:1 enables significant torque increase while maintaining precision speed control, ideal for dosing, conveying, and positioning systems in technical industrial environments.
• Solid input shaft Ø28 mm accommodates various types of couplings for adaptable motor connection in both standard and custom drive systems.
• Two-stage bevel gear system provides compact design and reliable power transmission, particularly useful in space-constrained installations and automation cells.
• Gear size X62N offers optimized power density, making it suitable for medium-load applications with high demands on hygiene and mechanical resistance.
• Fully enclosed and smooth-surface housing prevents contamination buildup and simplifies CIP (Clean-in-Place) protocols in regulated production environments.
• Ideal for industries such as food and beverage, pharmaceutical manufacturing, biotechnology, chemical processing, and offshore systems requiring uncompromising material resilience and mechanical integrity.
• Manufactured entirely from corrosion-resistant AISI 316L stainless steel, ensuring long service life in aggressive, wash-down, and hygienic environments.
• Hollow output shaft with Ø35H7 tolerance made of stainless steel (SS), ideal for seamless and backlash-free integration with process machinery shafts.
• Direct input mounting interface 100/112B14 is compatible with IEC standard motors, simplifying installation and reducing integration time for OEM applications.
• High efficiency of 96% across the two-stage bevel gear design minimizes energy losses and supports sustainable system operation with lower heat generation.
• Ratio of 24.45:1 enables significant torque increase while maintaining precision speed control, ideal for dosing, conveying, and positioning systems in technical industrial environments.
• Solid input shaft Ø28 mm accommodates various types of couplings for adaptable motor connection in both standard and custom drive systems.
• Two-stage bevel gear system provides compact design and reliable power transmission, particularly useful in space-constrained installations and automation cells.
• Gear size X62N offers optimized power density, making it suitable for medium-load applications with high demands on hygiene and mechanical resistance.
• Fully enclosed and smooth-surface housing prevents contamination buildup and simplifies CIP (Clean-in-Place) protocols in regulated production environments.
• Ideal for industries such as food and beverage, pharmaceutical manufacturing, biotechnology, chemical processing, and offshore systems requiring uncompromising material resilience and mechanical integrity.
