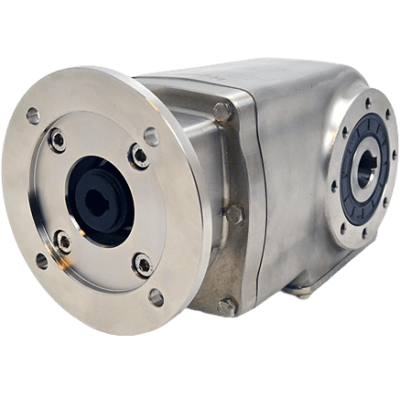

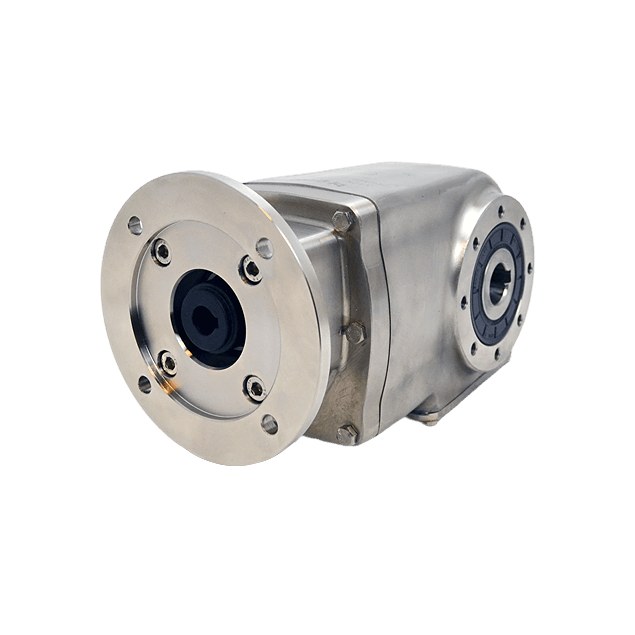

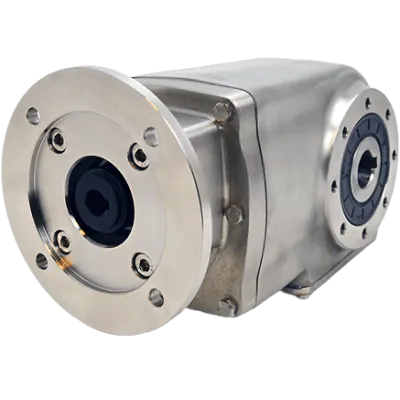

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 23,6:1, input 80B14, V5, stainless steel
HV82PX62NI07-EFBN-RV5-D-OFThis model features a gear ratio of 23.6:1 and a two-stage gear configuration. The gear housing and internals are made from stainless steel AISI 316L, ensuring compatibility with demanding hygienic and corrosive applications. It has a BCD input of 100 and a BCD output of 130. The input shaft diameter is 19 mm and the hollow output shaft is Ø35H7 mm. The unit fits gear motor interface size 80B14 and delivers 96% efficiency. The gearbox size is X62N.
Specifications
Product description
Downloads
€3,176.00
In stock
Expected shipment:
Loading...

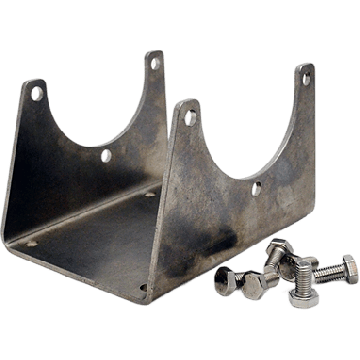

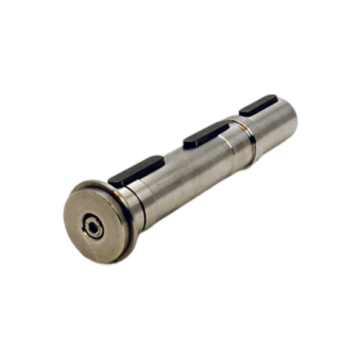

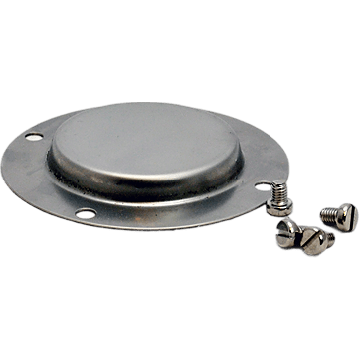

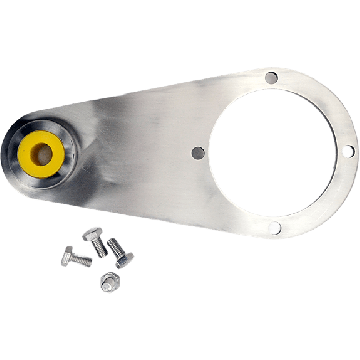

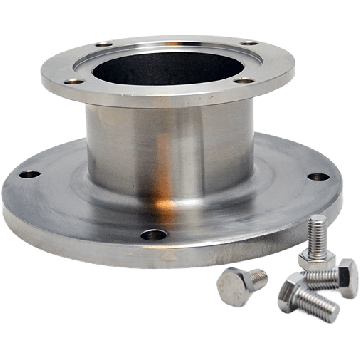

Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
23,6:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
59
Max output torque (Nm)
410
Max kW input at 1400 rpm
2.7
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading European brand specializing in hygienic and corrosion-resistant transmission solutions for demanding industrial sectors. All Clean-Geartech products are engineered for high performance in challenging environments such as food processing, pharmaceuticals, chemical manufacturing, and marine applications. Engineered with durability, hygiene, and precision in mind, Clean-Geartech gearboxes deliver reliable and efficient power transmission under rigorous conditions.**Key Features, Benefits & Application Possibilities:**
• Made entirely from corrosion-resistant AISI 316L stainless steel – ideal for use in hygienic and washdown environments such as food & beverage, chemical, and pharmaceutical industries.
• Precision-engineered 2-stage bevel gear system ensures high torque transfer with minimal space requirements – perfect for compact installations with high mechanical loads.
• Exceptional efficiency of 96% minimizes energy loss and heat generation – beneficial for continuous-duty applications in energy-sensitive operations.
• Ø35H7 hollow output shaft in stainless steel (SS) allows for direct drive shaft connection – reducing coupling complexity and improving system integrity.
• Input shaft interface: IEC 80B14 – offering standardized and seamless integration with a wide range of IEC-standard motors and automation systems.
• Input shaft diameter Ø19 mm ensures compatibility with typical motor shaft dimensions – helpful for retrofit applications or OEM-specific equipment.
• Transmission ratio of 23.6:1 – delivers stable output speeds and enhances torque transmission for process control equipment, conveyors, and mixers.
• Gearbox size X62N with compact dimensions and robust mechanical design – optimized for tight installation spaces in automated production lines.
• Designed for cleanroom readiness and easy disinfection in compliance with EHEDG and FDA guidelines – key advantage in hygienic processing environments.
• Ideal for high-torque, low-speed operations such as auger feeders, agitator drives, and lift systems in highly corrosive or sanitary conditions.
• Made entirely from corrosion-resistant AISI 316L stainless steel – ideal for use in hygienic and washdown environments such as food & beverage, chemical, and pharmaceutical industries.
• Precision-engineered 2-stage bevel gear system ensures high torque transfer with minimal space requirements – perfect for compact installations with high mechanical loads.
• Exceptional efficiency of 96% minimizes energy loss and heat generation – beneficial for continuous-duty applications in energy-sensitive operations.
• Ø35H7 hollow output shaft in stainless steel (SS) allows for direct drive shaft connection – reducing coupling complexity and improving system integrity.
• Input shaft interface: IEC 80B14 – offering standardized and seamless integration with a wide range of IEC-standard motors and automation systems.
• Input shaft diameter Ø19 mm ensures compatibility with typical motor shaft dimensions – helpful for retrofit applications or OEM-specific equipment.
• Transmission ratio of 23.6:1 – delivers stable output speeds and enhances torque transmission for process control equipment, conveyors, and mixers.
• Gearbox size X62N with compact dimensions and robust mechanical design – optimized for tight installation spaces in automated production lines.
• Designed for cleanroom readiness and easy disinfection in compliance with EHEDG and FDA guidelines – key advantage in hygienic processing environments.
• Ideal for high-torque, low-speed operations such as auger feeders, agitator drives, and lift systems in highly corrosive or sanitary conditions.
