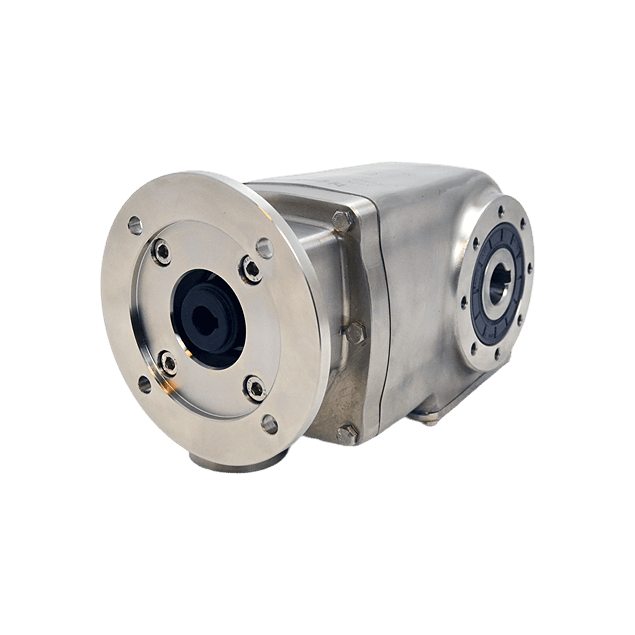

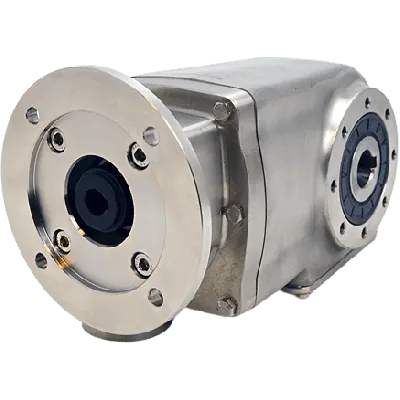

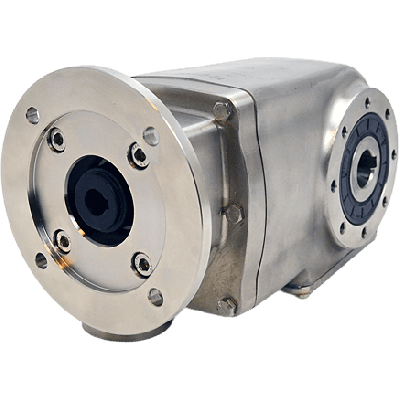

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 23,6:1, input 80B14, B3, stainless steel
HV82PX62NI07-EFBN-RB3-D-OFIt features a gear ratio of 23.6:1 and a 2-stage bevel gear configuration, delivering 96% efficiency. The input shaft diameter is 19 mm, while the output shaft is a Ø35H7 hollow shaft for versatile coupling. The gear housing and internal components are made from stainless steel AISI 316L, ensuring corrosion resistance in demanding environments. The gear motor interface is standardised to 80B14, and the gear size is X62N. BCD dimensions are 100 mm on input and 130 mm on output.
Specifications
Product description
Downloads
€3,044.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
23,6:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
59
Max output torque (Nm)
410
Max kW input at 1400 rpm
2.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium manufacturer specializing in high-performance gearboxes engineered from high-grade stainless steel. Known for their durability, corrosion resistance, and hygienic design, Clean-Geartech products are ideal for demanding industrial environments such as food processing, pharmaceutical manufacturing, chemical production, and offshore applications.**Product Name:** Clean-Geartech X62N, Bevel Gearbox Ø35H7 Hollow Shaft, 23.6:1 Ratio, Input 80B14, Stainless Steel**Key Features, Benefits & Applications:**
• Manufactured from corrosion-resistant AISI 316L stainless steel, making it exceptionally suitable for hygienically critical and aggressive environments including food, beverage, and pharmaceutical industries.
• Features a Ø35H7 stainless steel hollow output shaft (SS hollow shaft), providing robust torque transmission with high durability for demanding applications requiring frequent washdowns.
• Precisely machined 2-stage bevel gear with a gear ratio of 23.6:1 enables efficient torque amplification while maintaining a compact design — ideal for space-critical mechanical systems.
• Highly efficient power transmission with 96% efficiency ensures energy savings and minimizes heat development, improving overall system reliability.
• Equipped with an 80B14 gear motor interface, ensuring easy coupling with standardized IEC motors for flexible system integration across automation platforms.
• Input shaft dimension Ø19 mm and robust X62N gear size allow for seamless adaptation in bulk material handling, conveyors, and mixing equipment under heavy load conditions.
• BCD input: 100 mm and BCD output: 130 mm provide broad mounting compatibility for quick replacement or integration into new and existing OEM designs.
• Dual-stage gearing enhances load distribution and reduces gear wear, extending equipment lifespan even in round-the-clock operation scenarios.
• Clean, crevice-free housing design resists bacterial build-up and simplifies cleaning procedures, ideal for applications with strict hygienic standards (e.g., dairy, meat processing, cleanrooms).
• Designed and engineered by Clean-Geartech — a trusted supplier of stainless steel drive technology, known for reliability, high-performance standards and tailored solutions for process-critical industries.
• Manufactured from corrosion-resistant AISI 316L stainless steel, making it exceptionally suitable for hygienically critical and aggressive environments including food, beverage, and pharmaceutical industries.
• Features a Ø35H7 stainless steel hollow output shaft (SS hollow shaft), providing robust torque transmission with high durability for demanding applications requiring frequent washdowns.
• Precisely machined 2-stage bevel gear with a gear ratio of 23.6:1 enables efficient torque amplification while maintaining a compact design — ideal for space-critical mechanical systems.
• Highly efficient power transmission with 96% efficiency ensures energy savings and minimizes heat development, improving overall system reliability.
• Equipped with an 80B14 gear motor interface, ensuring easy coupling with standardized IEC motors for flexible system integration across automation platforms.
• Input shaft dimension Ø19 mm and robust X62N gear size allow for seamless adaptation in bulk material handling, conveyors, and mixing equipment under heavy load conditions.
• BCD input: 100 mm and BCD output: 130 mm provide broad mounting compatibility for quick replacement or integration into new and existing OEM designs.
• Dual-stage gearing enhances load distribution and reduces gear wear, extending equipment lifespan even in round-the-clock operation scenarios.
• Clean, crevice-free housing design resists bacterial build-up and simplifies cleaning procedures, ideal for applications with strict hygienic standards (e.g., dairy, meat processing, cleanrooms).
• Designed and engineered by Clean-Geartech — a trusted supplier of stainless steel drive technology, known for reliability, high-performance standards and tailored solutions for process-critical industries.
