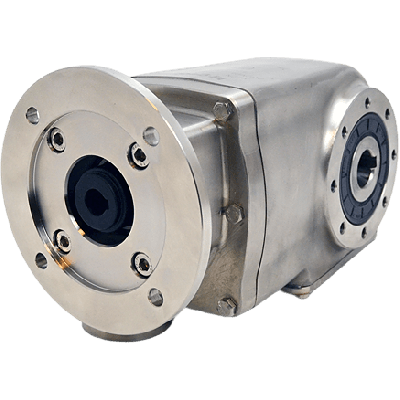

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 19,97:1, input 80B14, B3, stainless steel
HV82PX62NI06-EFBN-RB3-D-OFFeaturing a 19.97:1 gear ratio and two-stage bevel gear configuration, it delivers efficient torque transmission with a 96% efficiency rating. The gear input shaft diameter is 19 mm, while the gear output shaft is Ø35 mm (H7 fit).This gearbox is built with gearing in stainless steel AISI 316L and includes a stainless steel hollow output shaft for enhanced corrosion resistance. It is designed for integration via a motor interface type 80B14 and uses the X62N housing size. The unit offers a BCD input of 100 mm and a BCD output of 130 mm, supporting versatile mounting configurations.
Specifications
Product description
Downloads
€3,044.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
19,97:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
70
Max output torque (Nm)
410
Max kW input at 1400 rpm
3.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of hygienic and high-performance gearboxes tailored for demanding industrial applications. With a strong focus on corrosion-resistant designs, Clean-Geartech gear units are engineered to meet the strict hygiene and durability requirements of industries such as food and beverage, pharmaceuticals, and chemical processing.Key Features, Benefits, and Application Possibilities:
Made from AISI 316L stainless steel, the gearbox housing delivers outstanding resistance to corrosion and harsh cleaning agents, making it ideal for hygienic applications in food, pharma, and marine environments.
The Ø35H7 stainless steel hollow output shaft ensures precision coupling with driven equipment while providing high resistance to wear and chemical exposure.
High mechanical efficiency of 96% ensures minimal energy loss and optimized performance in continuous-duty applications, reducing overall power consumption.
Equipped with a standard IEC 80B14 motor interface, offering broad compatibility with a wide range of electric motors for simple integration and maintenance.
Compact gear size (X62N) with 2-stage bevel gear transmission delivers a precise 19.97:1 ratio, ideal for applications requiring high torque in confined spaces.
Input shaft diameter of 19 mm allows for direct drive compatibility and smooth power transfer, suitable for conveyors, mixers, and processing machinery.
Robust stainless bevel gear design enables quiet and reliable torque transmission at varying loads and speeds, reducing mechanical stresses and downtime.
Suitable for vertical and horizontal mounting, allowing flexible installation in production lines, CIP/SIP systems, and automated processing cells.
Optimized for washdown environments thanks to hygienic design elements and smooth, polished surfaces that prevent bacterial accumulation and simplify cleaning routines.Applications: This bevel gear unit is commonly employed in high-standard processing environments including dairy plants, pharmaceutical filling lines, automated packaging systems, and offshore production units — where hygiene, durability, and reliability are critical factors.
Made from AISI 316L stainless steel, the gearbox housing delivers outstanding resistance to corrosion and harsh cleaning agents, making it ideal for hygienic applications in food, pharma, and marine environments.
The Ø35H7 stainless steel hollow output shaft ensures precision coupling with driven equipment while providing high resistance to wear and chemical exposure.
High mechanical efficiency of 96% ensures minimal energy loss and optimized performance in continuous-duty applications, reducing overall power consumption.
Equipped with a standard IEC 80B14 motor interface, offering broad compatibility with a wide range of electric motors for simple integration and maintenance.
Compact gear size (X62N) with 2-stage bevel gear transmission delivers a precise 19.97:1 ratio, ideal for applications requiring high torque in confined spaces.
Input shaft diameter of 19 mm allows for direct drive compatibility and smooth power transfer, suitable for conveyors, mixers, and processing machinery.
Robust stainless bevel gear design enables quiet and reliable torque transmission at varying loads and speeds, reducing mechanical stresses and downtime.
Suitable for vertical and horizontal mounting, allowing flexible installation in production lines, CIP/SIP systems, and automated processing cells.
Optimized for washdown environments thanks to hygienic design elements and smooth, polished surfaces that prevent bacterial accumulation and simplify cleaning routines.Applications: This bevel gear unit is commonly employed in high-standard processing environments including dairy plants, pharmaceutical filling lines, automated packaging systems, and offshore production units — where hygiene, durability, and reliability are critical factors.
