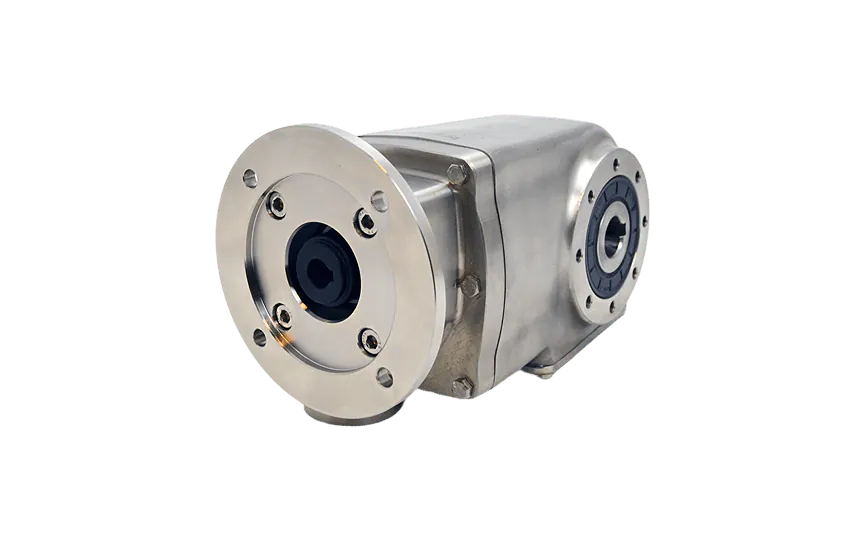

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 15,36:1, input 90B14, B3, stainless steel
HV82PX62NI04-EFBN-TB3-E-OFIt features a gear ratio of 15.36:1 and operates with 96% efficiency. The gear size is X62N with 2 gear stages, and a 24 mm input shaft. The output shaft is a Ø35H7 stainless steel hollow shaft, designed for precise torque transmission in hygienic or corrosive environments.The entire gear assembly is constructed from stainless steel AISI 316L, ensuring high chemical resistance. It has a 90B14 input motor interface, supporting easy integration with standard motors.
Specifications
Product description
Downloads
€3,048.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
15,36:1
BCD input
115
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X62N
Output speed at 1400 RPM
91
Max output torque (Nm)
385
Max kW input at 1400 rpm
3.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-GeartechClean-Geartech is a premium European manufacturer known for producing advanced stainless steel gear solutions specifically designed for demanding industrial environments. Their gearboxes ensure reliability, hygiene, and durability, making them the preferred choice for food processing, pharmaceutical, and chemical industries. Manufactured with precision and high-grade AISI 316L stainless steel, Clean-Geartech products combine engineering excellence with uncompromising quality.Key Features, Benefits & Application Opportunities:
High-grade AISI 316L stainless steel housing provides exceptional corrosion resistance, ideal for harsh environments including wash-down applications in food, beverage, pharmaceutical, and offshore industries.
Stainless steel Ø35H7 hollow output shaft (SS) ensures hygienic compatibility and longevity in corrosive applications, simplifying coupling with driven components like mixers, conveyors and dosing equipment.
Precision 2-stage bevel gear set delivers a ratio of 15.36:1, enabling high torque transmission with compact installation dimensions—optimal for space-constrained systems requiring high power density.
High mechanical efficiency of 96% reduces energy losses, enhances system output, and lowers operational costs—beneficial for continuous-duty industrial automation processes.
Input flange compatible with IEC standard 90B14 motors for easy integration with a range of standard motor systems, allowing flexible drive configurations and fast replacement.
24 mm input shaft diameter designed for robust torque transfer from motor to gearbox, optimized for medium- to heavy-duty applications in manufacturing equipment and process machinery.
Backlash-optimized bevel gearing ensures precise motion control, supporting applications such as positioning systems, filling machines, and high-accuracy transport mechanisms.
Gear size X62N designed for modular installation in OEM systems, enclosure integrations, and hygienic machine builds, compliant with process industry standards.
Wide compatibility between BCD input 115 mm and BCD output 130 mm enables flexible mounting across a variety of mechanical configurations while maintaining structural rigidity under load.
High-grade AISI 316L stainless steel housing provides exceptional corrosion resistance, ideal for harsh environments including wash-down applications in food, beverage, pharmaceutical, and offshore industries.
Stainless steel Ø35H7 hollow output shaft (SS) ensures hygienic compatibility and longevity in corrosive applications, simplifying coupling with driven components like mixers, conveyors and dosing equipment.
Precision 2-stage bevel gear set delivers a ratio of 15.36:1, enabling high torque transmission with compact installation dimensions—optimal for space-constrained systems requiring high power density.
High mechanical efficiency of 96% reduces energy losses, enhances system output, and lowers operational costs—beneficial for continuous-duty industrial automation processes.
Input flange compatible with IEC standard 90B14 motors for easy integration with a range of standard motor systems, allowing flexible drive configurations and fast replacement.
24 mm input shaft diameter designed for robust torque transfer from motor to gearbox, optimized for medium- to heavy-duty applications in manufacturing equipment and process machinery.
Backlash-optimized bevel gearing ensures precise motion control, supporting applications such as positioning systems, filling machines, and high-accuracy transport mechanisms.
Gear size X62N designed for modular installation in OEM systems, enclosure integrations, and hygienic machine builds, compliant with process industry standards.
Wide compatibility between BCD input 115 mm and BCD output 130 mm enables flexible mounting across a variety of mechanical configurations while maintaining structural rigidity under load.
