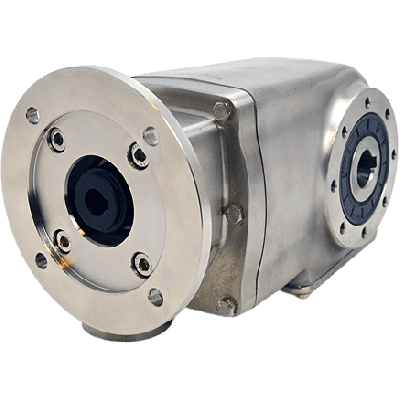

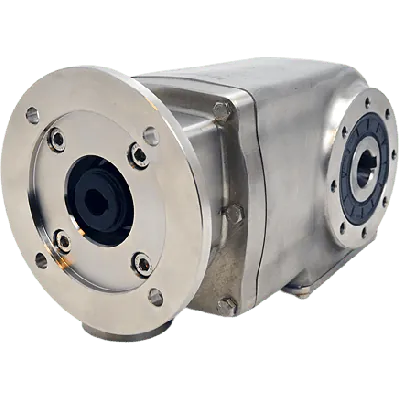

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 15,36:1, input 80B14, V5, stainless steel
HV82PX62NI04-EFBN-RV5-D-OFThis unit offers a gear ratio of 15.36:1 and operates with 96% efficiency. It features a 35 mm output shaft and a 19 mm input shaft. The gear housing is defined as size X62N with 2 gear stages and is suitable for a 80B14 motor interface.Constructed with stainless steel AISI 316L gears, it ensures durability in harsh environments. The BCD input is 100 mm, and the BCD output is 130 mm, making it compatible with standardized flange dimensions across various setups.
Specifications
Product description
Downloads
€3,176.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
15,36:1
BCD input
100
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X62N
Output speed at 1400 RPM
91
Max output torque (Nm)
385
Max kW input at 1400 rpm
3.8
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X62N is a precision-engineered bevel gearbox specifically designed for use in demanding industrial and hygienic environments. Developed by Clean-Geartech, a leading European manufacturer renowned for high-performance, corrosion-resistant drive solutions, this gearbox features a robust, stainless steel construction tailored for applications in the food, pharmaceutical, chemical, and marine industries.Key Features and Application Benefits:
• High-efficiency two-stage bevel gearbox (96%): Ensures minimal energy loss and maximum power transmission, ideal for continuous-duty applications in energy-conscious systems.
• Fully constructed from AISI 316L stainless steel: Exceptional resistance to corrosion, acids, and cleaning agents, making it perfect for applications with frequent washdowns or exposure to harsh chemicals.
• Ø35H7 stainless steel hollow output shaft: Precision-engineered for torque transfer in processing, packaging, and conveying systems under hygienic requirements.
• Gear ratio 15.36:1: Provides consistent torque output and optimized speed reduction for heavy-duty motion control in automation and machine building sectors.
• Compact size – Gear size X62N: Facilitates space-saving installation in confined systems such as bottling lines, mixers, or mobile equipment.
• B14 motor interface (size 80): Compatible with standard IEC motors, simplifying integration with existing motor setups used in industrial production lines.
• Input shaft diameter Ø19 mm: Suits commonly used drive shaft configurations in OEM and retrofit systems. Typical Applications:
• Food processing lines needing stainless gearboxes for direct contact zones and CIP/SIP cycles.
• Pharmaceutical manufacturing environments requiring high hygiene and corrosion resistance.
• Marine and offshore equipment exposed to salt, humidity, and demanding conditions.
• Chemical handling and agitator systems with aggressive cleaning media and long operating cycles. Clean-Geartech delivers technical excellence and hygienic innovation – the X62N series stands out as a reliable and efficient power transmission solution in the most challenging industrial settings.
• High-efficiency two-stage bevel gearbox (96%): Ensures minimal energy loss and maximum power transmission, ideal for continuous-duty applications in energy-conscious systems.
• Fully constructed from AISI 316L stainless steel: Exceptional resistance to corrosion, acids, and cleaning agents, making it perfect for applications with frequent washdowns or exposure to harsh chemicals.
• Ø35H7 stainless steel hollow output shaft: Precision-engineered for torque transfer in processing, packaging, and conveying systems under hygienic requirements.
• Gear ratio 15.36:1: Provides consistent torque output and optimized speed reduction for heavy-duty motion control in automation and machine building sectors.
• Compact size – Gear size X62N: Facilitates space-saving installation in confined systems such as bottling lines, mixers, or mobile equipment.
• B14 motor interface (size 80): Compatible with standard IEC motors, simplifying integration with existing motor setups used in industrial production lines.
• Input shaft diameter Ø19 mm: Suits commonly used drive shaft configurations in OEM and retrofit systems. Typical Applications:
• Food processing lines needing stainless gearboxes for direct contact zones and CIP/SIP cycles.
• Pharmaceutical manufacturing environments requiring high hygiene and corrosion resistance.
• Marine and offshore equipment exposed to salt, humidity, and demanding conditions.
• Chemical handling and agitator systems with aggressive cleaning media and long operating cycles. Clean-Geartech delivers technical excellence and hygienic innovation – the X62N series stands out as a reliable and efficient power transmission solution in the most challenging industrial settings.
