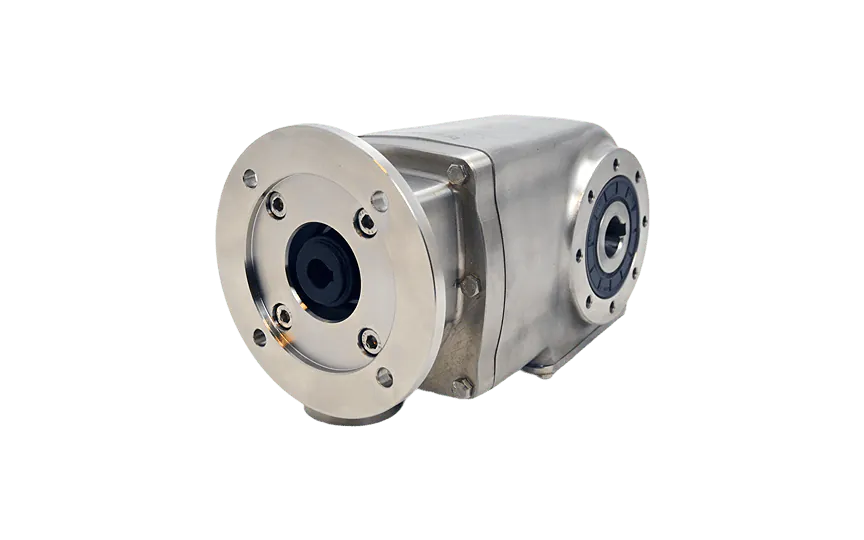

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 15,36:1, input 100/112B14, B3, stainless steel
HV82PX62NI04-EFBN-UB3-F-OFFeaturing a gear ratio of 15.36:1 and two-stage bevel gear configuration, it ensures stable power transfer. The input shaft diameter is 28 mm, and it is compatible with a 100/112B14 motor interface. The output shaft is a Ø35H7 hollow shaft.Constructed from stainless steel AISI 316L, the gear material guarantees high resistance to aggressive environments. It offers a mechanical efficiency of 96% and is categorized under gear size X62N. Both the input and output BCD are 130 mm, ensuring compatibility with standard mounting patterns.
Specifications
Product description
Downloads
€3,072.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
15,36:1
BCD input
130
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
X62N
Output speed at 1400 RPM
91
Max output torque (Nm)
385
Max kW input at 1400 rpm
3.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized manufacturer known for producing high-performance, hygienic gear units tailored to demanding industrial environments. Their gearboxes are engineered with premium materials, such as AISI 316L stainless steel, to meet the strictest hygiene, durability, and corrosion resistance requirements. Ideal for technical specialists in sectors like food processing, pharmaceuticals, chemical engineering, and marine applications.Application Benefits and Key Features:
Constructed entirely of AISI 316L stainless steel, making it highly corrosion-resistant and ideal for harsh and hygienic environments including food, pharmaceutical, and offshore applications.
Equipped with a Ø35H7 hollow output shaft in stainless steel, simplifying integration into existing shaft-driven systems while ensuring superior cleaning access and longevity.
The gear input shaft diameter of Ø28 mm provides compatibility with a wide range of IEC motors, creating a flexible drivetrain setup.
Optimized gear ratio of 15.36:1 enables precise speed reduction and torque increase, making it suitable for both high-load and low-speed automation applications.
Two-stage gear reduction allows for increased load handling and reliability in continuous operation cycles, reducing mechanical stress and wear.
High operational efficiency of 96% ensures minimal energy loss during transmission, supporting energy-conscious engineering designs and lowering operational costs.
Mounting interface compatible with IEC 100/112B14 motor flanges, allowing seamless integration into standardized drive systems without the need for custom adapters.
Compact housing size X62N with BCD input/output 130 mm makes the gearbox ideal for space-limited systems and modular industrial setups.
Smooth surface design prevents accumulation of debris and is resistant to aggressive cleaning agents, compliant with CIP (Clean-In-Place) standards critical in sensitive process environments.
Reliable performance in high humidity or wet zones, ideal for production lines requiring regular washdowns or exposure to sanitary-grade environments.
Constructed entirely of AISI 316L stainless steel, making it highly corrosion-resistant and ideal for harsh and hygienic environments including food, pharmaceutical, and offshore applications.
Equipped with a Ø35H7 hollow output shaft in stainless steel, simplifying integration into existing shaft-driven systems while ensuring superior cleaning access and longevity.
The gear input shaft diameter of Ø28 mm provides compatibility with a wide range of IEC motors, creating a flexible drivetrain setup.
Optimized gear ratio of 15.36:1 enables precise speed reduction and torque increase, making it suitable for both high-load and low-speed automation applications.
Two-stage gear reduction allows for increased load handling and reliability in continuous operation cycles, reducing mechanical stress and wear.
High operational efficiency of 96% ensures minimal energy loss during transmission, supporting energy-conscious engineering designs and lowering operational costs.
Mounting interface compatible with IEC 100/112B14 motor flanges, allowing seamless integration into standardized drive systems without the need for custom adapters.
Compact housing size X62N with BCD input/output 130 mm makes the gearbox ideal for space-limited systems and modular industrial setups.
Smooth surface design prevents accumulation of debris and is resistant to aggressive cleaning agents, compliant with CIP (Clean-In-Place) standards critical in sensitive process environments.
Reliable performance in high humidity or wet zones, ideal for production lines requiring regular washdowns or exposure to sanitary-grade environments.
