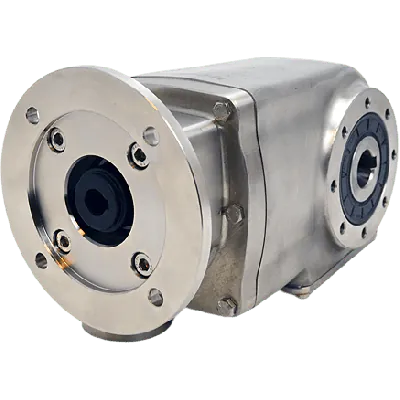

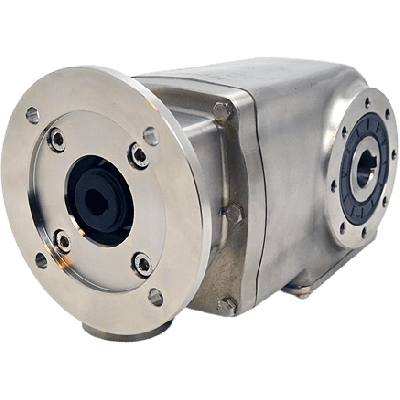

Clean-Geartech X62N, helical bevel gear Ø35H7 hollow shaft, 11,36:1, input 100/112B14, V5, stainless steel
HV82PX62NI03-EFBN-UV5-F-OFThis unit features a gear ratio of 11.36:1 and a two-stage bevel gear configuration for efficient power transfer. It offers a 96% efficiency and supports a BCD input of 130 mm with a matching BCD output of 130 mm. The input shaft diameter is 28 mm, and the output Ø35 mm hollow shaft is machined to H7 tolerance.Constructed from stainless steel AISI 316L, including the geartrain, it is suitable for washdown and hygienic applications. The gear motor interface is compatible with 100/112B14 flanges. Gear size: X62N.
Specifications
Product description
Downloads
€3,203.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
11,36:1
BCD input
130
BCD output
130
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
X62N
Output speed at 1400 RPM
123
Max output torque (Nm)
350
Max kW input at 1400 rpm
4.7
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium manufacturer specializing in high-performance stainless steel gearboxes tailored for demanding industrial environments. With a commitment to hygiene, corrosion resistance and durable performance, Clean-Geartech products are widely trusted in sectors such as food processing, pharmaceuticals, chemicals, and marine applications. The X62N series upholds the brand’s reputation for precision engineering and exceptional reliability.Product Features and Application Benefits:
Constructed entirely from AISI 316L stainless steel – ensuring exceptional corrosion resistance in harsh or washdown environments such as food, beverage, chemical, and pharmaceutical processing.
Stainless Steel Ø35H7 hollow output shaft (SS) – allows for secure and hygienic torque transmission with easy integration into processing equipment and conveyor systems.
Input flange compatible with IEC motor sizes 100/112B14 – supports standardized motor mounting, enabling flexible system integration and fast replacement or upgrades.
11.36:1 gear ratio – ideal for applications requiring speed reduction with high precision torque output, suitable for mixers, agitators, and packaging machinery.
Two-stage bevel gear design – delivers smooth, efficient torque transfer with reduced noise and vibration, enhancing durability and operational stability.
High mechanical efficiency of 96% – minimizes energy loss and contributes to lower operating costs, especially in continuous run-time industrial applications.
Integrated hygienic design with smooth surfaces – simplifies cleaning procedures and meets stringent sanitary standards required in cleanroom environments and FDA-compliant systems.
Compact housing size X62N – optimal for space-constrained installations while maintaining mechanical robustness and high-performance output capability.
Output configuration suitable for high dynamic loads – supports use in intelligent automation systems, robotic arms, and precision handling equipment.
Ideal for industries demanding both mechanical strength and hygiene – such as food production lines, dairy installations, bottling plants, pharmaceutical conveyors, and offshore equipment exposed to saline environments.
Constructed entirely from AISI 316L stainless steel – ensuring exceptional corrosion resistance in harsh or washdown environments such as food, beverage, chemical, and pharmaceutical processing.
Stainless Steel Ø35H7 hollow output shaft (SS) – allows for secure and hygienic torque transmission with easy integration into processing equipment and conveyor systems.
Input flange compatible with IEC motor sizes 100/112B14 – supports standardized motor mounting, enabling flexible system integration and fast replacement or upgrades.
11.36:1 gear ratio – ideal for applications requiring speed reduction with high precision torque output, suitable for mixers, agitators, and packaging machinery.
Two-stage bevel gear design – delivers smooth, efficient torque transfer with reduced noise and vibration, enhancing durability and operational stability.
High mechanical efficiency of 96% – minimizes energy loss and contributes to lower operating costs, especially in continuous run-time industrial applications.
Integrated hygienic design with smooth surfaces – simplifies cleaning procedures and meets stringent sanitary standards required in cleanroom environments and FDA-compliant systems.
Compact housing size X62N – optimal for space-constrained installations while maintaining mechanical robustness and high-performance output capability.
Output configuration suitable for high dynamic loads – supports use in intelligent automation systems, robotic arms, and precision handling equipment.
Ideal for industries demanding both mechanical strength and hygiene – such as food production lines, dairy installations, bottling plants, pharmaceutical conveyors, and offshore equipment exposed to saline environments.
