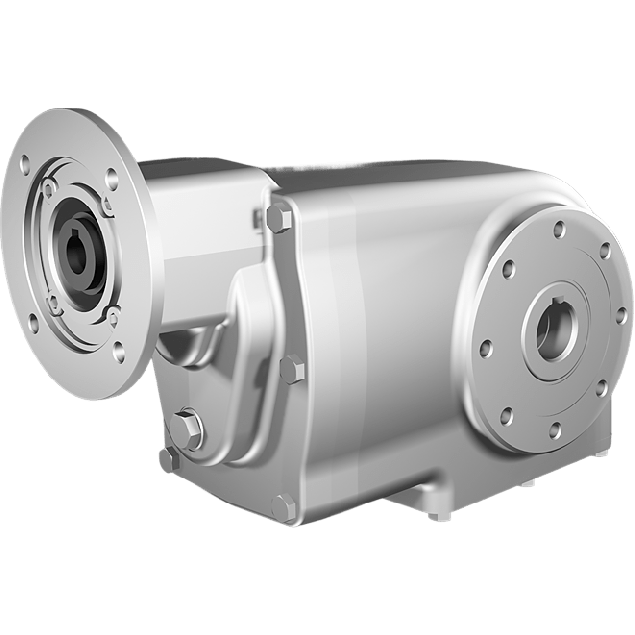

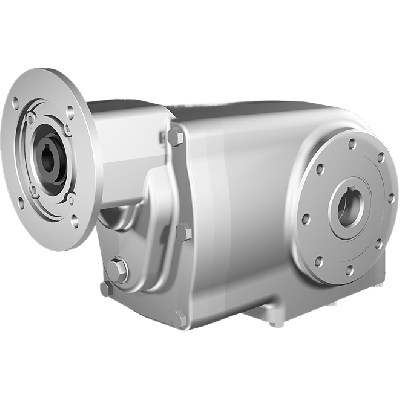

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 95,03:1, input 71B14, V5, stainless steel
HV82PX43NI08-CFBN-QV5-C-OFThis unit features a gear ratio of 95.03:1 and a 3-stage gear configuration, offering efficient torque conversion with an efficiency of 94%. The gear input shaft diameter is 14 mm, and the output shaft is Ø25 mm (H7 tolerance). It fits motors with a 71B14 interface.The gearing is made from stainless steel AISI 316L, suited for corrosion-prone or hygienic environments. With a compact gear size of X43N, this unit provides robust performance with minimal footprint.The input BCD is 85 mm and output BCD is 90 mm.
Specifications
Product description
Downloads
€2,155.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
95,03:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
14.7
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.21
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Produced by Clean-Geartech, a leading European manufacturer of hygienic gear solutions, known for delivering high-efficiency, corrosion-resistant gear units designed for demanding industrial environments. Their products are widely used in food processing, pharmaceutical, and chemical industries where cleanliness, durability, and reliability are crucial. Clean-Geartech blends precision engineering with hygienic design, ensuring performance and compliance with strict industry standards.
High-grade AISI 316L stainless steel housing: Outstanding corrosion resistance for use in aggressive environments such as food production, pharmaceuticals, marine, and chemical processing. Ensures long service life even under frequent washdowns.
Precision-engineered bevel gear with 95.03:1 ratio: Supports high torque transmission with compact dimensions, ideal for low-speed, high-force applications such as conveyors, mixers, and agitators.
Output shaft Ø25H7 hollow bore (stainless steel): Facilitates direct shaft integration, reducing the need for couplings and minimizing alignment issues in custom machinery setups.
Input shaft Ø14 mm and B14 flange connection (size 71): Enables easy motor mounting via a standardized IEC 71B14 interface, simplifying assembly processes and motor interchangeability.
Three-stage gear configuration: Optimized for high reduction ratios while maintaining gear efficiency and reliability. Suitable for compact installations with demanding torque requirements and precise motion control.
Exceptional efficiency of 94%: Reduces energy losses and operational costs, making it suitable for continuous operation in energy-critical applications.
Gear size X43N: Represents a compact and modular design that adapts easily across multiple engineering applications, from automated systems to sanitary material handling.
Robust stainless steel build including housing and hollow shaft: Designed for harsh cleaning protocols, including CIP (Clean-In-Place), ensuring compliance with hygiene and safety standards in regulated production areas.
Targeted at engineers and technical professionals: A precision solution for system integrators and OEMs seeking longevity, hygiene, and performance in motion control applications within complex industrial systems.
High-grade AISI 316L stainless steel housing: Outstanding corrosion resistance for use in aggressive environments such as food production, pharmaceuticals, marine, and chemical processing. Ensures long service life even under frequent washdowns.
Precision-engineered bevel gear with 95.03:1 ratio: Supports high torque transmission with compact dimensions, ideal for low-speed, high-force applications such as conveyors, mixers, and agitators.
Output shaft Ø25H7 hollow bore (stainless steel): Facilitates direct shaft integration, reducing the need for couplings and minimizing alignment issues in custom machinery setups.
Input shaft Ø14 mm and B14 flange connection (size 71): Enables easy motor mounting via a standardized IEC 71B14 interface, simplifying assembly processes and motor interchangeability.
Three-stage gear configuration: Optimized for high reduction ratios while maintaining gear efficiency and reliability. Suitable for compact installations with demanding torque requirements and precise motion control.
Exceptional efficiency of 94%: Reduces energy losses and operational costs, making it suitable for continuous operation in energy-critical applications.
Gear size X43N: Represents a compact and modular design that adapts easily across multiple engineering applications, from automated systems to sanitary material handling.
Robust stainless steel build including housing and hollow shaft: Designed for harsh cleaning protocols, including CIP (Clean-In-Place), ensuring compliance with hygiene and safety standards in regulated production areas.
Targeted at engineers and technical professionals: A precision solution for system integrators and OEMs seeking longevity, hygiene, and performance in motion control applications within complex industrial systems.
