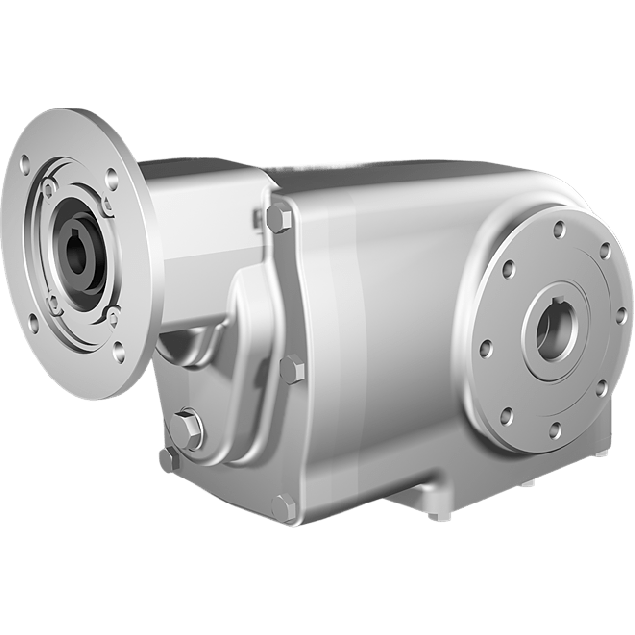

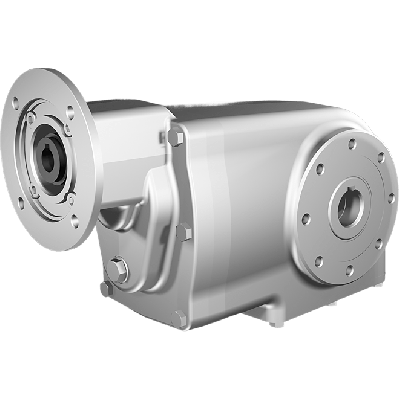

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 95,03:1, input 71B14, B3, stainless steel
HV82PX43NI08-CFBN-QB3-C-OFThis gear unit features a gear ratio of 95.03:1 and a gear efficiency of 94%, making it suitable for applications with high torque and low output speed. It has a gear input shaft diameter of 14 mm and a gear output shaft diameter of 25 mm. The gear housing size is X43N and it is configured with 3 gear stages.The gear motor interface is 71B14, ensuring compatibility with standard IEC motors. Constructed with stainless steel AISI 316L gears, it offers high durability in aggressive environments. This unit also includes a stainless steel hollow output shaft for enhanced corrosion resistance.
Specifications
Product description
Downloads
€2,124.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
95,03:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
14.7
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.21
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Overview: Clean-Geartech is a trusted name in high-performance gear technology, known for producing advanced, high-quality gearboxes engineered for use in demanding industrial environments. Specializing in hygienic, corrosion-resistant solutions, Clean-Geartech provides gear units ideal for food processing, pharmaceuticals, chemical industries, and marine applications—anywhere durability and hygiene are paramount.Key Product Features and Application Benefits:
✔ Made entirely from stainless steel AISI 316L, ensuring maximum corrosion resistance, making it ideal for applications in aggressive, corrosive, or hygienic environments such as food, chemical or marine industries.
✔ High gear ratio of 95.03:1 delivers excellent torque multiplication and speed reduction, suitable for slow-speed, high-torque applications like conveyors, mixers, and processing machinery.
✔ 3-stage transmission system provides smooth and efficient power delivery while minimizing backlash, ensuring reliable long-term performance in precision systems.
✔ Efficiency rating of 94% enhances energy performance, reducing thermal losses and operational costs in continuous-duty applications.
✔ Compact X43N housing design offers space-saving installation, perfect for integration into tight machinery setups where footprint is critical.
✔ Ø25H7 hollow output shaft in stainless steel (SS) allows for direct shaft mounting and easy integration with driven equipment, increasing installation flexibility.
✔ Stainless steel 14 mm input shaft ensures robust input performance under heavy loads and harsh environments, supporting direct coupling with IEC motor flanges.
✔ Compatible with IEC 71B14 gear motor interface, making it easy to pair with a wide range of standard electric motors from various manufacturers.
✔ Designed for hygienic zones—smooth surface design supports washdown and CIP (Clean-in-Place) practices, minimizing risks of contamination in FDA- and EHEDG-compliant processes.
✔ Ideal for technical specialists and mechanical engineers looking for maintenance-free, stainless-steel gearboxes that ensure uptime in critical industrial and automation systems.
✔ Made entirely from stainless steel AISI 316L, ensuring maximum corrosion resistance, making it ideal for applications in aggressive, corrosive, or hygienic environments such as food, chemical or marine industries.
✔ High gear ratio of 95.03:1 delivers excellent torque multiplication and speed reduction, suitable for slow-speed, high-torque applications like conveyors, mixers, and processing machinery.
✔ 3-stage transmission system provides smooth and efficient power delivery while minimizing backlash, ensuring reliable long-term performance in precision systems.
✔ Efficiency rating of 94% enhances energy performance, reducing thermal losses and operational costs in continuous-duty applications.
✔ Compact X43N housing design offers space-saving installation, perfect for integration into tight machinery setups where footprint is critical.
✔ Ø25H7 hollow output shaft in stainless steel (SS) allows for direct shaft mounting and easy integration with driven equipment, increasing installation flexibility.
✔ Stainless steel 14 mm input shaft ensures robust input performance under heavy loads and harsh environments, supporting direct coupling with IEC motor flanges.
✔ Compatible with IEC 71B14 gear motor interface, making it easy to pair with a wide range of standard electric motors from various manufacturers.
✔ Designed for hygienic zones—smooth surface design supports washdown and CIP (Clean-in-Place) practices, minimizing risks of contamination in FDA- and EHEDG-compliant processes.
✔ Ideal for technical specialists and mechanical engineers looking for maintenance-free, stainless-steel gearboxes that ensure uptime in critical industrial and automation systems.
