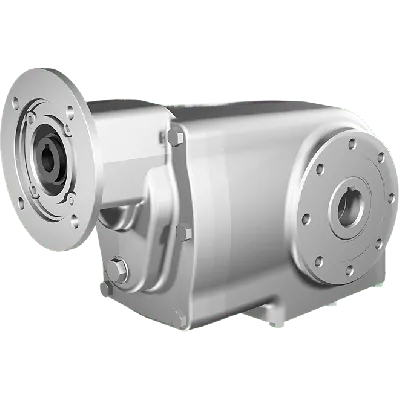

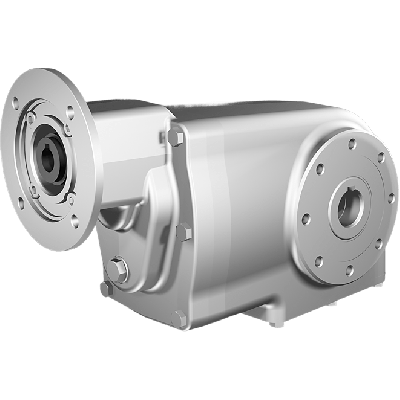

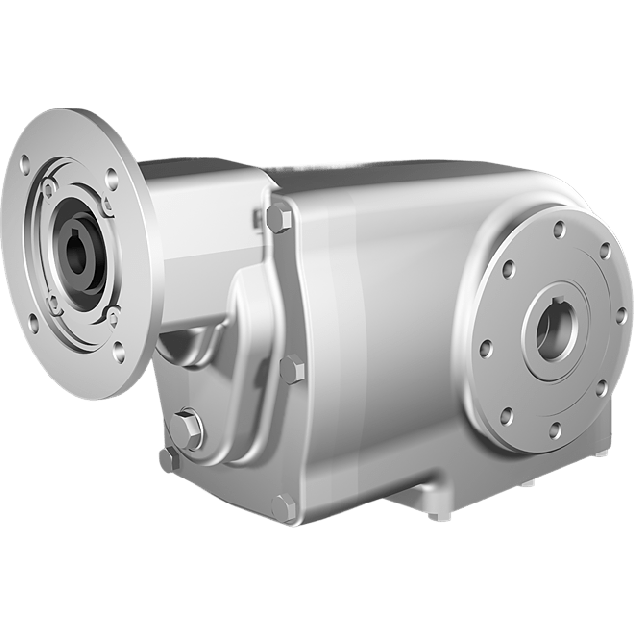

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 92,08:1, input 71B14, V5, stainless steel
HV82PX43NI07-CFBN-QV5-C-OFFeaturing a gear ratio of 92.08:1 and 94% efficiency, this unit offers reliable torque transmission with minimal energy loss. The gear material is stainless steel AISI 316L, suitable for corrosive or washdown environments. It is equipped with a 71B14 motor interface, 14 mm input shaft, and a 25 mm Ø25H7 output hollow shaft. With three gear stages and a gear size of X43N, it is optimized for compact installations. The BCD input is 85 mm and the BCD output is 90 mm, supporting consistent mechanical integration.
Specifications
Product description
Downloads
€2,155.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
92,08:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
15.2
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.22
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X43N is a premium bevel gear reducer designed for demanding industrial applications where durability, hygiene, and performance are critical. With a high-efficiency rating of 94%, AISI 316L stainless steel housing, and a robust three-stage design, this gearbox is tailored for industries such as food and beverage, pharmaceutical, chemical, and marine, where resistance to corrosion and strict hygiene standards are mandatory.Manufacturer: Clean-Geartech is a respected manufacturer specializing in hygienic and robust gear solutions for the most challenging environments. Their stainless-steel gear units are engineered for durability, wash-down compatibility, and precise motion control, meeting the high expectations of modern engineers and technical specialists across various industries.Key Features, Benefits, and Application Possibilities:
• Constructed from AISI 316L stainless steel – offers excellent corrosion resistance, ideal for aggressive wash-down environments such as food processing and marine applications.
• Hollow output shaft Ø25H7 in stainless steel – simplifies integration with driven equipment and ensures hygienic and corrosion-resistant power transmission.
• Efficient 3-stage bevel gear design – provides smooth torque transmission and a compact form factor, suitable for space-constrained automation systems.
• High gear ratio of 92.08:1 – supports low-speed, high-torque applications, perfect for conveyors, mixers, or dosing lines that require precise motion control.
• Gear motor interface 71B14 – compatible with standard IEC motors, allowing flexibility for quick motor installation and replacement.
• Input shaft Ø14 mm – ensures compatibility with a wide range of motor couplings and allows straightforward mechanical integration.
• Compact gear size (X43N) – supports installation in limited-space environments without sacrificing performance.
• High mechanical efficiency at 94% – reduces energy consumption and operating costs in continuous-duty applications.
• Seamless match for hygienic production environments – eliminates contamination risks in pharmaceutical, biotech, and dairy sectors.
• Ideal for OEMs and system integrators – offering a reliable, standardized solution for customized equipment builds and retrofits.
• Constructed from AISI 316L stainless steel – offers excellent corrosion resistance, ideal for aggressive wash-down environments such as food processing and marine applications.
• Hollow output shaft Ø25H7 in stainless steel – simplifies integration with driven equipment and ensures hygienic and corrosion-resistant power transmission.
• Efficient 3-stage bevel gear design – provides smooth torque transmission and a compact form factor, suitable for space-constrained automation systems.
• High gear ratio of 92.08:1 – supports low-speed, high-torque applications, perfect for conveyors, mixers, or dosing lines that require precise motion control.
• Gear motor interface 71B14 – compatible with standard IEC motors, allowing flexibility for quick motor installation and replacement.
• Input shaft Ø14 mm – ensures compatibility with a wide range of motor couplings and allows straightforward mechanical integration.
• Compact gear size (X43N) – supports installation in limited-space environments without sacrificing performance.
• High mechanical efficiency at 94% – reduces energy consumption and operating costs in continuous-duty applications.
• Seamless match for hygienic production environments – eliminates contamination risks in pharmaceutical, biotech, and dairy sectors.
• Ideal for OEMs and system integrators – offering a reliable, standardized solution for customized equipment builds and retrofits.
