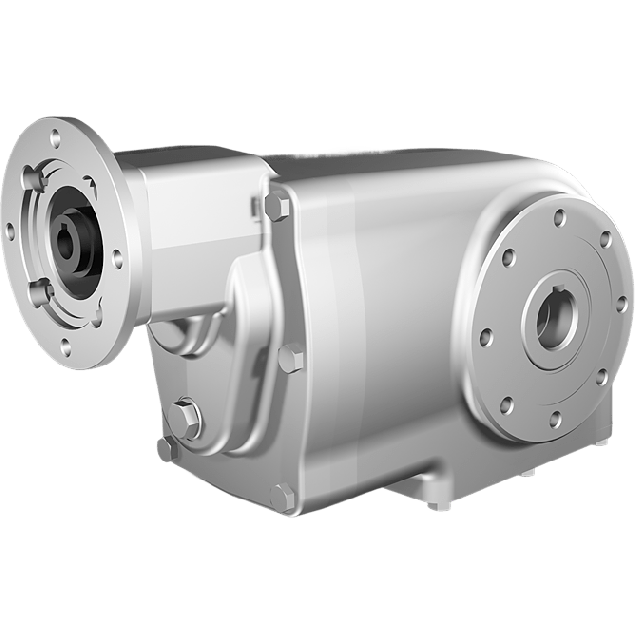

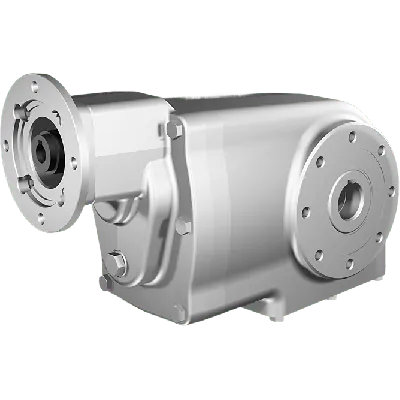

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 92,08:1, input 63B14, V5, stainless steel
HV82PX43NI07-CFBN-PV5-B-OFIt features a gear ratio of 92.08:1 and a 3-stage gear configuration, delivering efficient torque conversion. The gear efficiency is 94%, minimizing power loss. The input shaft diameter is 11 mm, while the output shaft is a Ø25H7 hollow shaft for compatibility with standard components. Equipped with a 63B14 motor interface, it allows easy coupling with IEC standard motors.All gearing is manufactured from stainless steel AISI 316L, ensuring high resistance to chemical exposure and washdown conditions. The gear size is X43N, offering a compact form factor with reliable mechanical performance.
Specifications
Product description
Downloads
€2,150.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
92,08:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
15.2
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.22
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a renowned manufacturer specializing in premium hygienic stainless steel gearboxes for demanding industrial applications. Known for innovative design and resistance to corrosion, Clean-Geartech delivers products that meet the highest standards in food, pharmaceutical, and chemical industries where cleanliness, durability, and reliability are critical.Product Description & Key Features:
High-grade stainless steel AISI 316L gear housing offers exceptional corrosion resistance, making the gearbox ideal for hygienic zones in the food, beverage, and pharmaceutical industries.
Compact design with gear size X43N allows for easy integration into space-constrained systems while providing robust power transmission.
The Ø25H7 hollow output shaft, also made of stainless steel, enables direct shaft-mounting and ensures compatibility with a wide range of mechanical interfaces.
Three-stage gear transmission ensures high torque at low speeds — ideal for applications requiring precise control and load handling, such as conveyors, mixers, and rotary tables.
High efficiency of 94% reduces energy loss and operating costs, making the gearbox suitable for continuous-duty industrial applications.
Gear ratio of 92.08:1 delivers significant torque multiplication, allowing the unit to perform effectively in high-load, low-speed scenarios.
Modified input BCD 75 and output BCD 90 enable seamless integration into existing machinery with customized mounting needs.
Standardized 63B14 motor flange interface allows compatibility with a wide range of IEC standard motors, simplifying maintenance and installation.
11 mm input shaft dimension supports efficient torque transfer from various motor sizes, enhancing gearbox versatility across automation solutions.
IP-rated smooth stainless-steel surfaces prevent bacterial accumulation and enable high-pressure washdown, making it ideal for clean-in-place operations. Applications:
Perfectly suited for use in hygienic conveyor systems in food production lines that require frequent cleaning.
Suitable for pharmaceutical dosing and packaging systems where contamination control and mechanical precision are critical.
Engineered for corrosive environments such as marine, chemical processing, and salt-handling equipment.
Optimized for use in mixers, agitators, and other load-intensive applications in the biotech and dairy industries. The Clean-Geartech X43N is a premium solution when reliability, cleanliness, and performance must converge in the most demanding environments.
High-grade stainless steel AISI 316L gear housing offers exceptional corrosion resistance, making the gearbox ideal for hygienic zones in the food, beverage, and pharmaceutical industries.
Compact design with gear size X43N allows for easy integration into space-constrained systems while providing robust power transmission.
The Ø25H7 hollow output shaft, also made of stainless steel, enables direct shaft-mounting and ensures compatibility with a wide range of mechanical interfaces.
Three-stage gear transmission ensures high torque at low speeds — ideal for applications requiring precise control and load handling, such as conveyors, mixers, and rotary tables.
High efficiency of 94% reduces energy loss and operating costs, making the gearbox suitable for continuous-duty industrial applications.
Gear ratio of 92.08:1 delivers significant torque multiplication, allowing the unit to perform effectively in high-load, low-speed scenarios.
Modified input BCD 75 and output BCD 90 enable seamless integration into existing machinery with customized mounting needs.
Standardized 63B14 motor flange interface allows compatibility with a wide range of IEC standard motors, simplifying maintenance and installation.
11 mm input shaft dimension supports efficient torque transfer from various motor sizes, enhancing gearbox versatility across automation solutions.
IP-rated smooth stainless-steel surfaces prevent bacterial accumulation and enable high-pressure washdown, making it ideal for clean-in-place operations. Applications:
Perfectly suited for use in hygienic conveyor systems in food production lines that require frequent cleaning.
Suitable for pharmaceutical dosing and packaging systems where contamination control and mechanical precision are critical.
Engineered for corrosive environments such as marine, chemical processing, and salt-handling equipment.
Optimized for use in mixers, agitators, and other load-intensive applications in the biotech and dairy industries. The Clean-Geartech X43N is a premium solution when reliability, cleanliness, and performance must converge in the most demanding environments.
