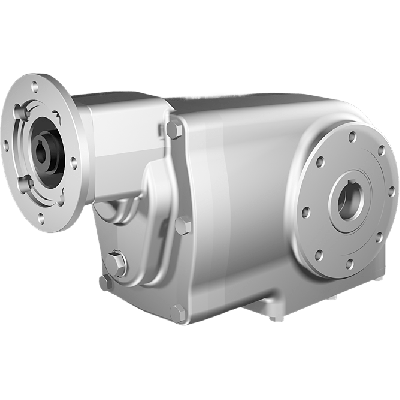

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 92,08:1, input 63B14, B3, stainless steel
HV82PX43NI07-CFBN-PB3-B-OFThis model features a gear ratio of 92.08:1 and a three-stage design. It offers 94% efficiency and supports a 63B14 motor interface. The gear input shaft measures 11 mm, while the gear output is a Ø25H7 hollow shaft. Constructed with AISI 316L stainless steel gears, it ensures durability in aggressive environments. The gear size is X43N. With BCD input of 75 mm and BCD output of 90 mm, it is optimized for precise mechanical integration.
Specifications
Product description
Downloads
€2,119.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
92,08:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
15.2
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer specializing in hygienic-grade stainless steel gearboxes designed for demanding industrial environments such as food processing, pharmaceutical production, chemical engineering, and marine applications. Known for their precision engineering and commitment to durability, Clean-Geartech offers fully enclosed transmission units built to withstand harsh wash-downs and aggressive cleaning routines while maintaining optimal performance.Key Features and Application Benefits:
Fully constructed in stainless steel AISI 316L, offering maximum corrosion resistance in hygiene-critical or chemically aggressive environments (e.g., food & beverage, offshore, chemical plants).
Equipped with a Ø25H7 stainless steel hollow output shaft (SS), ideal for torque transmission in systems where compact design and rust resistance are paramount.
High gear ratio of 92.08:1 across 3 optimized gear stages—provides high torque output with extremely smooth operation, suitable for low-speed, high-load applications like conveyor drives, mixers, or rotary process equipment.
94% efficiency ensures minimal energy loss, translating into operational cost savings and improved system performance over time.
A universal IEC input flange size 63B14 makes integration with standard motors straightforward, reducing installation complexity and downtime.
Input shaft Ø11mm allows compatibility with standard coupling systems and drive units, simplifying the drive train design in mechanical systems.
Gear size X43N provides a compact footprint without compromising torque handling capabilities, making it suitable for space-constrained machinery designs.
BCD Input 75mm and BCD Output 90mm offer standardized mounting dimensions, promoting interchangeability and ease of retrofitting or modular system design.
Ideal for cleanroom settings or washdown zones due to its seamless housing and hygienic design that eliminates dirt-trapping crevices.The Clean-Geartech X43N stainless steel bevel gearbox delivers high-performance power transmission in environments where cleanliness, corrosion resistance, and long-lasting reliability are mandatory. Engineered for technical specialists and industrial engineers seeking premium-quality, hygienic drive solutions.
Fully constructed in stainless steel AISI 316L, offering maximum corrosion resistance in hygiene-critical or chemically aggressive environments (e.g., food & beverage, offshore, chemical plants).
Equipped with a Ø25H7 stainless steel hollow output shaft (SS), ideal for torque transmission in systems where compact design and rust resistance are paramount.
High gear ratio of 92.08:1 across 3 optimized gear stages—provides high torque output with extremely smooth operation, suitable for low-speed, high-load applications like conveyor drives, mixers, or rotary process equipment.
94% efficiency ensures minimal energy loss, translating into operational cost savings and improved system performance over time.
A universal IEC input flange size 63B14 makes integration with standard motors straightforward, reducing installation complexity and downtime.
Input shaft Ø11mm allows compatibility with standard coupling systems and drive units, simplifying the drive train design in mechanical systems.
Gear size X43N provides a compact footprint without compromising torque handling capabilities, making it suitable for space-constrained machinery designs.
BCD Input 75mm and BCD Output 90mm offer standardized mounting dimensions, promoting interchangeability and ease of retrofitting or modular system design.
Ideal for cleanroom settings or washdown zones due to its seamless housing and hygienic design that eliminates dirt-trapping crevices.The Clean-Geartech X43N stainless steel bevel gearbox delivers high-performance power transmission in environments where cleanliness, corrosion resistance, and long-lasting reliability are mandatory. Engineered for technical specialists and industrial engineers seeking premium-quality, hygienic drive solutions.
