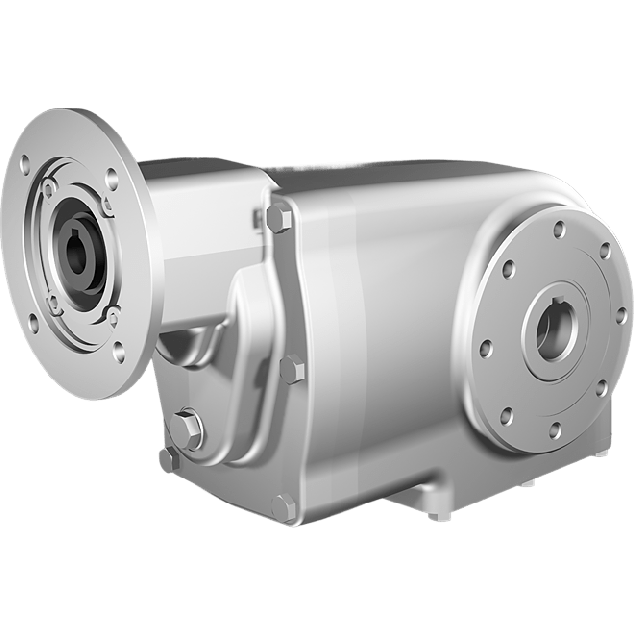

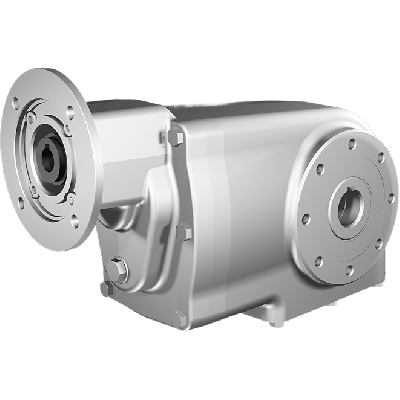

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 79,44:1, input 71B14, V5, stainless steel
HV82PX43NI06-CFBN-QV5-C-OFThis unit features a gear ratio of 79.44:1 and a 3-stage gear configuration, offering effective torque transmission. It includes a Ø25 mm output hollow shaft (25H7) and a Ø14 mm input shaft. With a BCD input of 85 mm and BCD output of 90 mm, it interfaces via a 71B14 motor flange. The gearing and housing are made of AISI 316L stainless steel, ensuring corrosion resistance. The unit efficiency is 94%. Classified under gear size X43N, this gearbox meets the operational needs of technical specialists across sectors.
Specifications
Product description
Downloads
€2,155.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
79,44:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
17.6
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.26
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X43N is a high-performance 3-stage bevel gearbox specifically engineered for industrial applications requiring durability, hygiene, and precise motion control. Designed with a corrosion-resistant AISI 316L stainless steel housing and robust internals, this gearbox delivers superior reliability in demanding environments such as food processing, pharmaceuticals, chemical handling, and marine systems.
• High Gear Ratio of 79.44:1 – Ensures significant torque multiplication for low-speed, high-load processes, making it suitable for conveyors, mixers, and lifting systems.
• Manufactured with AISI 316L Stainless Steel – Optimal corrosion resistance and easy-to-clean surface, ideal for hygiene-critical areas in food and pharma industries.
• Efficiency up to 94% – Reduces energy loss in continuous operations, significantly lowering operational costs over time in automated production environments.
• Integrated 25 mm Ø25H7 Hollow Output Shaft (SS) – Supports direct coupling with minimal backlash, suitable for precision-driven applications such as robotic joints and AGVs.
• Compatible with IEC 71B14 Motor Interface – Ensures seamless integration with a wide range of motors commonly used in automated process lines and manufacturing cells.
• Compact Gear Size X43N – Allows for space-saving installation where layout constraints apply, yet delivers powerful output torque for demanding load scenarios.
• 3-Stage Gear Setup – Enhances torque management and mechanical advantage, supporting high-ratio diversity while maintaining structural integrity.
• 14 mm Stainless Steel Input Shaft – Provides increased input strength for harsh-duty cycles and extended operation under variable loads.About the Manufacturer – Clean-Geartech:
Clean-Geartech is a trusted European manufacturer known for producing high-grade, hygienic gear solutions tailored to industrial sectors requiring durability, cleanliness, and compliance. With a focus on stainless steel gear drives, the company delivers gearboxes combining performance, corrosion resistance, and easy maintenance – specifically designed for engineers and system integrators operating in harsh or regulated environments.
• High Gear Ratio of 79.44:1 – Ensures significant torque multiplication for low-speed, high-load processes, making it suitable for conveyors, mixers, and lifting systems.
• Manufactured with AISI 316L Stainless Steel – Optimal corrosion resistance and easy-to-clean surface, ideal for hygiene-critical areas in food and pharma industries.
• Efficiency up to 94% – Reduces energy loss in continuous operations, significantly lowering operational costs over time in automated production environments.
• Integrated 25 mm Ø25H7 Hollow Output Shaft (SS) – Supports direct coupling with minimal backlash, suitable for precision-driven applications such as robotic joints and AGVs.
• Compatible with IEC 71B14 Motor Interface – Ensures seamless integration with a wide range of motors commonly used in automated process lines and manufacturing cells.
• Compact Gear Size X43N – Allows for space-saving installation where layout constraints apply, yet delivers powerful output torque for demanding load scenarios.
• 3-Stage Gear Setup – Enhances torque management and mechanical advantage, supporting high-ratio diversity while maintaining structural integrity.
• 14 mm Stainless Steel Input Shaft – Provides increased input strength for harsh-duty cycles and extended operation under variable loads.About the Manufacturer – Clean-Geartech:
Clean-Geartech is a trusted European manufacturer known for producing high-grade, hygienic gear solutions tailored to industrial sectors requiring durability, cleanliness, and compliance. With a focus on stainless steel gear drives, the company delivers gearboxes combining performance, corrosion resistance, and easy maintenance – specifically designed for engineers and system integrators operating in harsh or regulated environments.
