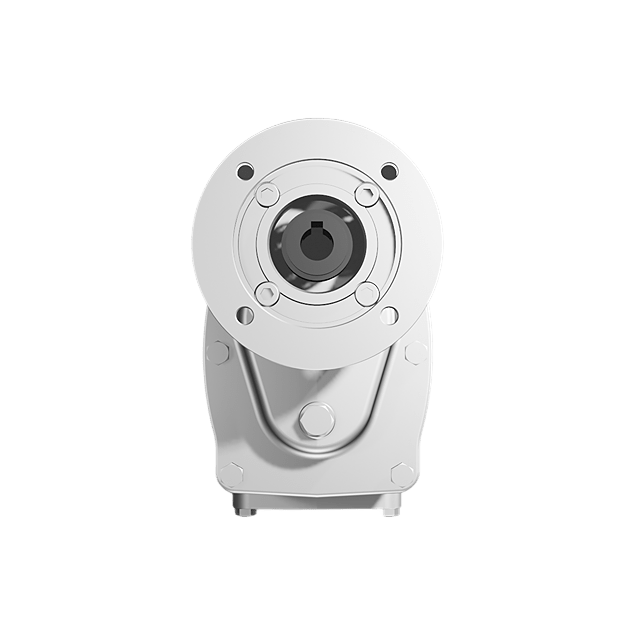

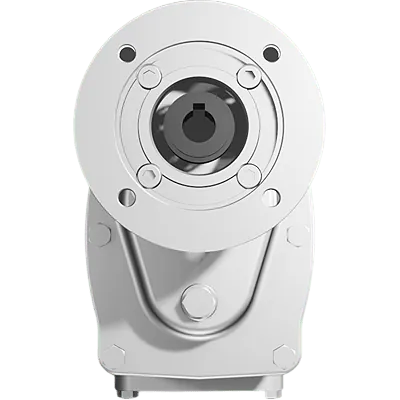

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 79,44:1, input 63B14, V5, stainless steel
HV82PX43NI06-CFBN-PV5-B-OFThis unit offers a gear ratio of 79.44:1 and a gear size of X43N. It features three gear stages and delivers a mechanical efficiency of 94%. The gear material is stainless steel AISI 316L, ensuring high resistance to aggressive environments. The input shaft diameter is 11 mm, and the output shaft is a Ø25H7 hollow shaft, also in stainless steel. The gearbox is equipped with a 63B14 motor interface for standardized integration. The BCD input is 75 mm and the BCD output is 90 mm.
Specifications
Product description
Downloads
€2,150.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
79,44:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
17.6
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.26
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Designed for demanding industrial applications in environments where hygiene, corrosion resistance, and durability are critical, the Clean-Geartech X43N is a premium bevel gearbox solution engineered with precision and reliability in mind. Manufactured by Clean-Geartech — a trusted brand known for high-quality, application-driven stainless steel gearing systems — the X43N model delivers exceptional performance and long-term value for technical specialists and engineers.Key Features, Functional Advantages & Application Possibilities:
Stainless Steel AISI 316L Housing – Offers exceptional corrosion resistance, making it ideal for food & beverage, marine, chemical, and pharmaceutical environments
Hollow Output Shaft Ø25H7 (Stainless Steel) – Enables simple and precise shaft integration, reducing mechanical stress and ensuring smooth torque transfer in automated systems
High Gear Ratio of 79.44:1 – Suitable for high-torque, low-speed applications such as conveyors, mixers, and positioning systems
Three-Stage Bevel Gear Transmission – Ensures compact power transmission and optimized load distribution, improving service life and reducing vibration
94% Efficiency – Delivers exceptional energy performance that reduces operating costs in continuous operations
Input Flange Interface 63B14 – Compatible with standard IEC motors, allowing quick motor installations and high configuration flexibility in modular systems
Input Shaft Ø11 mm – Precision-machined for secure coupling with minimal backlash, perfect for servo-driven and synchronous drive systems
Gear Size X43N – Compact and standardized dimensioning supports easy integration into tight industrial layouts without compromising power output
Developed by Clean-Geartech – Known for producing premium stainless steel gear solutions for environments that require maximum hygiene and compliance with IP69K/IP66 certificationsThe Clean-Geartech X43N bevel gearbox is the optimal choice for engineers creating systems exposed to aggressive sanitation procedures, harsh chemicals, or salt water, combining precision mechanics with a high level of environmental endurance. Perfectly suited for motion control, packaging lines, cleanroom automation and heavy-duty processing systems.
Stainless Steel AISI 316L Housing – Offers exceptional corrosion resistance, making it ideal for food & beverage, marine, chemical, and pharmaceutical environments
Hollow Output Shaft Ø25H7 (Stainless Steel) – Enables simple and precise shaft integration, reducing mechanical stress and ensuring smooth torque transfer in automated systems
High Gear Ratio of 79.44:1 – Suitable for high-torque, low-speed applications such as conveyors, mixers, and positioning systems
Three-Stage Bevel Gear Transmission – Ensures compact power transmission and optimized load distribution, improving service life and reducing vibration
94% Efficiency – Delivers exceptional energy performance that reduces operating costs in continuous operations
Input Flange Interface 63B14 – Compatible with standard IEC motors, allowing quick motor installations and high configuration flexibility in modular systems
Input Shaft Ø11 mm – Precision-machined for secure coupling with minimal backlash, perfect for servo-driven and synchronous drive systems
Gear Size X43N – Compact and standardized dimensioning supports easy integration into tight industrial layouts without compromising power output
Developed by Clean-Geartech – Known for producing premium stainless steel gear solutions for environments that require maximum hygiene and compliance with IP69K/IP66 certificationsThe Clean-Geartech X43N bevel gearbox is the optimal choice for engineers creating systems exposed to aggressive sanitation procedures, harsh chemicals, or salt water, combining precision mechanics with a high level of environmental endurance. Perfectly suited for motion control, packaging lines, cleanroom automation and heavy-duty processing systems.
