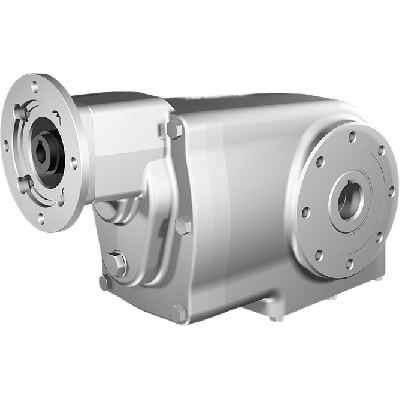

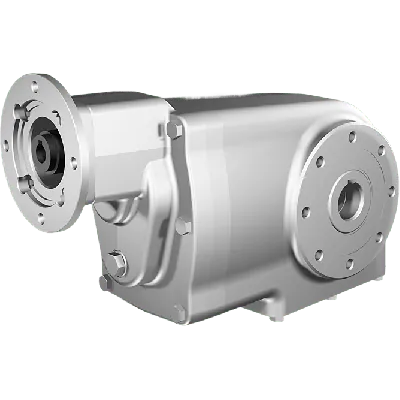

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 79,44:1, input 63B14, B3, stainless steel
HV82PX43NI06-CFBN-PB3-B-OFIt features a gear ratio of 79.44:1 and a three-stage transmission, ensuring consistent output. The input shaft diameter is 11 mm and the output shaft is a Ø25H7 hollow shaft. The input interface is IEC 63B14 and the gear housing size is X43N. It offers a mechanical efficiency of 94%. The gear wheels are made of stainless steel AISI 316L for high corrosion resistance.Suitable for applications where cleanliness and durability are critical, this unit provides reliable torque transfer and long service life.
Specifications
Product description
Downloads
€2,119.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
79,44:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
17.6
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.26
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted manufacturer of stainless steel transmission solutions, specializing in hygienic, corrosion-resistant gear units for demanding industrial applications. Their gearboxes are designed to meet strict requirements within the food, pharmaceutical, chemical, and marine sectors – offering optimal reliability, longevity, and cleanability.Key Features & Application Advantages:
• Constructed entirely from AISI 316L stainless steel for outstanding corrosion resistance – ideal for aggressive washdown environments, chemical processing, and marine industries.
• 79.44:1 gear ratio across 3 stages enables precise torque regulation and operational efficiency in slow-speed, high-torque applications, such as conveyors, mixers, and dosing systems.
• High mechanical efficiency of 94% minimizes energy losses, supporting sustainability objectives and energy cost reduction.
• Fitted with a Ø25H7 hollow output shaft in stainless steel – ensures a hygienic, easy-to-clean interface while providing a secure, backlash-free power transmission connection.
• Robust Ø11 mm input shaft allows compatibility with diverse drive motor configurations and ensures torque consistency across multiple operational conditions.
• Integrated 63B14 flange mount interface streamlines motor installation and alignment, supporting compact systems and reducing maintenance time.
• Compact gearbox housing size X43N allows easy integration into space-limited machine layouts typical in automated production systems.
• Designed for IP and hygienic applications – offers easy sanitation, making it suitable for the food & beverage, pharmaceutical, and biotechnology domains.
• Bevel gear design supports right-angle mounting and torque direction changes – optimal for systems requiring angular turns or dual-axis transmissions.Clean-Geartech’s commitment to precision engineering, hygienic compliance, and application versatility makes the X43N bevel gearbox an ideal solution for technical specialists seeking durability and reliability in demanding environments.
• Constructed entirely from AISI 316L stainless steel for outstanding corrosion resistance – ideal for aggressive washdown environments, chemical processing, and marine industries.
• 79.44:1 gear ratio across 3 stages enables precise torque regulation and operational efficiency in slow-speed, high-torque applications, such as conveyors, mixers, and dosing systems.
• High mechanical efficiency of 94% minimizes energy losses, supporting sustainability objectives and energy cost reduction.
• Fitted with a Ø25H7 hollow output shaft in stainless steel – ensures a hygienic, easy-to-clean interface while providing a secure, backlash-free power transmission connection.
• Robust Ø11 mm input shaft allows compatibility with diverse drive motor configurations and ensures torque consistency across multiple operational conditions.
• Integrated 63B14 flange mount interface streamlines motor installation and alignment, supporting compact systems and reducing maintenance time.
• Compact gearbox housing size X43N allows easy integration into space-limited machine layouts typical in automated production systems.
• Designed for IP and hygienic applications – offers easy sanitation, making it suitable for the food & beverage, pharmaceutical, and biotechnology domains.
• Bevel gear design supports right-angle mounting and torque direction changes – optimal for systems requiring angular turns or dual-axis transmissions.Clean-Geartech’s commitment to precision engineering, hygienic compliance, and application versatility makes the X43N bevel gearbox an ideal solution for technical specialists seeking durability and reliability in demanding environments.
