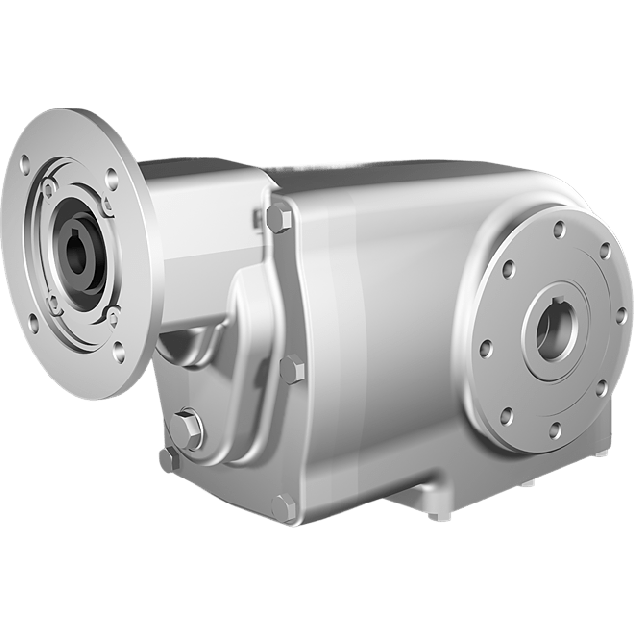

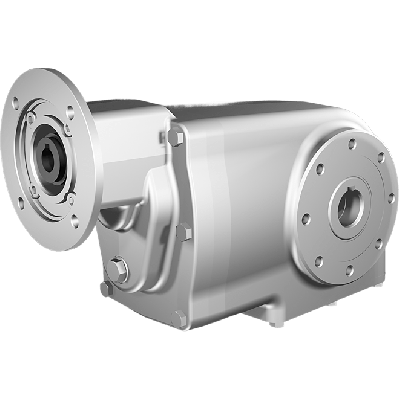

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 71,78:1, input 71B14, V5, stainless steel
HV82PX43NI05-CFBN-QV5-C-OFIt features a gear size of X43N and a gear ratio of 71.78:1, allowing for precise torque conversion. The unit includes 3 gear stages for stable and efficient operation. With an efficiency of 94%, it ensures minimal energy loss. The input shaft diameter is 14 mm and the output shaft is a Ø25H7 hollow shaft. Designed for motor connection via 71B14 interface, the gear is constructed with gearing in stainless steel AISI 316L, making it suitable for corrosive or wash-down applications. Input and output nominal torques are 85 Nm and 90 Nm respectively.
Specifications
Product description
Downloads
€2,155.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
71,78:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
19.5
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.28
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X43N bevel gearbox is specially engineered for use in high-demand industrial environments where hygiene, corrosion resistance, and durability are vital. Manufactured by Clean-Geartech—a respected brand recognized for delivering robust drive solutions made from premium stainless steel (AISI 316L)—this gearbox is ideal for food processing, chemical, marine, and pharmaceutical industries.
Robust stainless steel AISI 316L housing and hollow output shaft (Ø25 mm H7 fit) ensure excellent corrosion resistance, making it perfect for hygienic or harsh environments such as food and beverage production, cleanrooms, or offshore installations.
High efficiency of 94% minimizes energy losses, reduces operational costs, and supports sustainable system design in continuous operation processes.
Input shaft Ø14 mm combined with IEC-standardized motor interface (71B14) allows seamless integration with a broad range of electric motors, simplifying system engineering and reducing setup time.
The compact X43N gear size and high transmission ratio of 71.78:1 enable reliable torque multiplication in space-constrained applications, maintaining performance without sacrificing footprint.
Three-stage helical-bevel gearing ensures high load capacity, quiet operation, and extended product service life—even under fluctuating or heavy-duty load profiles.
The fully enclosed gear design minimizes contamination risk, meets stringent industry hygiene standards, and supports IP-rated enclosures where required.
The BCD (Bolt Circle Diameter) input of 85 mm and output BCD of 90 mm provide standardized mounting compatibility for modular mechanical or mechatronic system architectures.
Ideal across industries requiring cleanability, such as pharmaceutical production zones, dairy processing, meat handling, and chemical dosing systems, where stainless steel robustness outperforms coated alternatives.Clean-Geartech’s reputation is built on precision-engineered gear solutions in stainless steel, combining innovation, reliability, and hygienic design to meet the technical requirements of engineers and industrial specialists worldwide.
Robust stainless steel AISI 316L housing and hollow output shaft (Ø25 mm H7 fit) ensure excellent corrosion resistance, making it perfect for hygienic or harsh environments such as food and beverage production, cleanrooms, or offshore installations.
High efficiency of 94% minimizes energy losses, reduces operational costs, and supports sustainable system design in continuous operation processes.
Input shaft Ø14 mm combined with IEC-standardized motor interface (71B14) allows seamless integration with a broad range of electric motors, simplifying system engineering and reducing setup time.
The compact X43N gear size and high transmission ratio of 71.78:1 enable reliable torque multiplication in space-constrained applications, maintaining performance without sacrificing footprint.
Three-stage helical-bevel gearing ensures high load capacity, quiet operation, and extended product service life—even under fluctuating or heavy-duty load profiles.
The fully enclosed gear design minimizes contamination risk, meets stringent industry hygiene standards, and supports IP-rated enclosures where required.
The BCD (Bolt Circle Diameter) input of 85 mm and output BCD of 90 mm provide standardized mounting compatibility for modular mechanical or mechatronic system architectures.
Ideal across industries requiring cleanability, such as pharmaceutical production zones, dairy processing, meat handling, and chemical dosing systems, where stainless steel robustness outperforms coated alternatives.Clean-Geartech’s reputation is built on precision-engineered gear solutions in stainless steel, combining innovation, reliability, and hygienic design to meet the technical requirements of engineers and industrial specialists worldwide.
