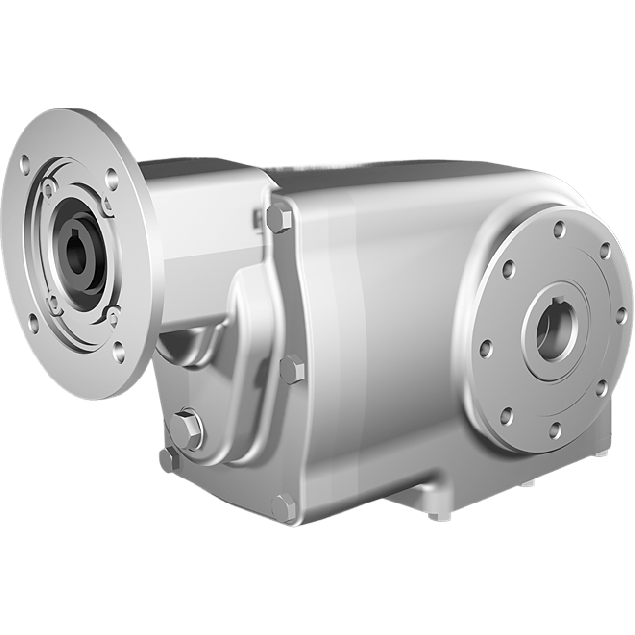

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 71,78:1, input 71B14, B3, stainless steel
HV82PX43NI05-CFBN-QB3-C-OFThis gear unit features a gear ratio of 71.78:1 across 3 gear stages, ensuring reliable torque conversion. The input shaft diameter is 14 mm, and the output is a Ø25 mm H7 hollow shaft. Engineered with a GEAR size of X43N and a motor interface of 71B14, it integrates easily into standard setups. The gear material is stainless steel AISI 316L, making it corrosion resistant and suitable for clean environments. Performance is enhanced by a 94% efficiency rating, with BCD input at 85 mm and BCD output at 90 mm.
Specifications
Product description
Downloads
€2,124.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
71,78:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
19.5
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.28
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in high-performance stainless steel geared components designed for demanding industrial and hygienic environments. With a focus on precision, durability, and corrosion resistance, Clean-Geartech delivers drive solutions widely trusted in the food, pharmaceutical, chemical, and marine industries.Key Features, Benefits, and Application Possibilities:
• Full stainless steel gearbox housing (AISI 316L) – Delivers superior corrosion resistance, ideal for applications in aggressive environments such as food production, chemical processing, and marine operations.
• Precision-machined Ø25H7 hollow output shaft in stainless steel – Ensures seamless torque transfer and allows easy integration with various driven components using standard shaft couplings.
• Three-stage bevel gear transmission – Provides a compact solution with high torque multiplication and smooth power transmission, suitable for space-limited integration in automated machinery.
• High reduction ratio of 71.78:1 – Perfect for applications that require slow, consistent output speed with increased torque, such as conveyor systems, mixers, or dosing equipment.
• Efficiency rating of 94% – Minimizes energy loss, enhancing operational efficiency in continuous-duty applications like packaging lines or bottling plants.
• Input shaft diameter Ø14 mm – Compatible with a wide range of motor types, enabling flexible adaptation to existing drives.
• Standard IEC input interface (71B14) – Simplifies integration with IEC-frame motors, lowering installation times and spare part complexity.
• Gear size X43N – A compact footprint that allows installation in narrow spaces while maintaining performance.
• Designed especially for hygienic and washdown environments – All external surfaces are smooth and self-draining, supporting easy cleaning and minimizing bacterial harborage risks. Clean-Geartech X43N is the optimal choice for engineers and technical specialists seeking a durable, hygienic, and efficient gearbox for demanding operations across pharmaceutical, food & beverage, and chemical processing industries.
• Full stainless steel gearbox housing (AISI 316L) – Delivers superior corrosion resistance, ideal for applications in aggressive environments such as food production, chemical processing, and marine operations.
• Precision-machined Ø25H7 hollow output shaft in stainless steel – Ensures seamless torque transfer and allows easy integration with various driven components using standard shaft couplings.
• Three-stage bevel gear transmission – Provides a compact solution with high torque multiplication and smooth power transmission, suitable for space-limited integration in automated machinery.
• High reduction ratio of 71.78:1 – Perfect for applications that require slow, consistent output speed with increased torque, such as conveyor systems, mixers, or dosing equipment.
• Efficiency rating of 94% – Minimizes energy loss, enhancing operational efficiency in continuous-duty applications like packaging lines or bottling plants.
• Input shaft diameter Ø14 mm – Compatible with a wide range of motor types, enabling flexible adaptation to existing drives.
• Standard IEC input interface (71B14) – Simplifies integration with IEC-frame motors, lowering installation times and spare part complexity.
• Gear size X43N – A compact footprint that allows installation in narrow spaces while maintaining performance.
• Designed especially for hygienic and washdown environments – All external surfaces are smooth and self-draining, supporting easy cleaning and minimizing bacterial harborage risks. Clean-Geartech X43N is the optimal choice for engineers and technical specialists seeking a durable, hygienic, and efficient gearbox for demanding operations across pharmaceutical, food & beverage, and chemical processing industries.
