Description

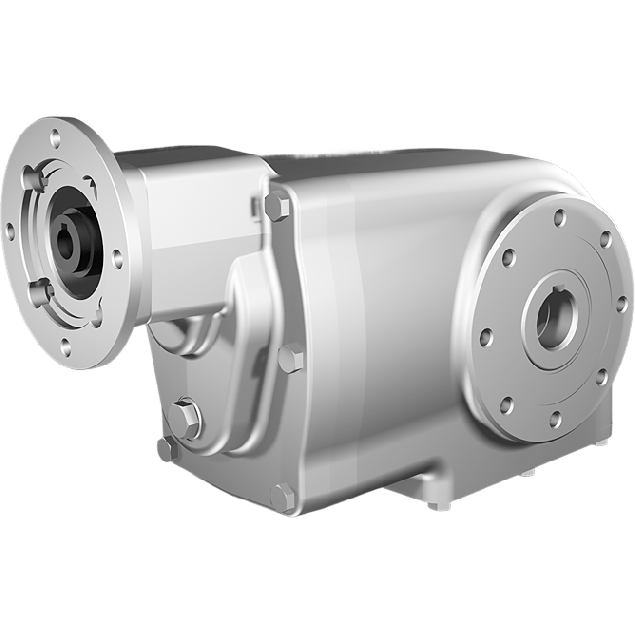

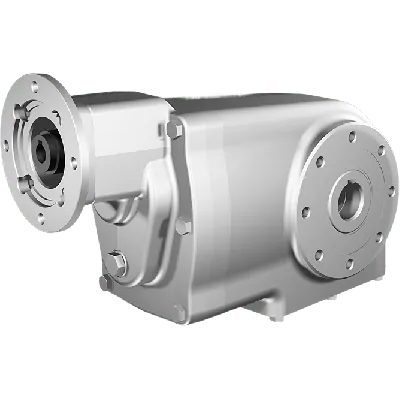

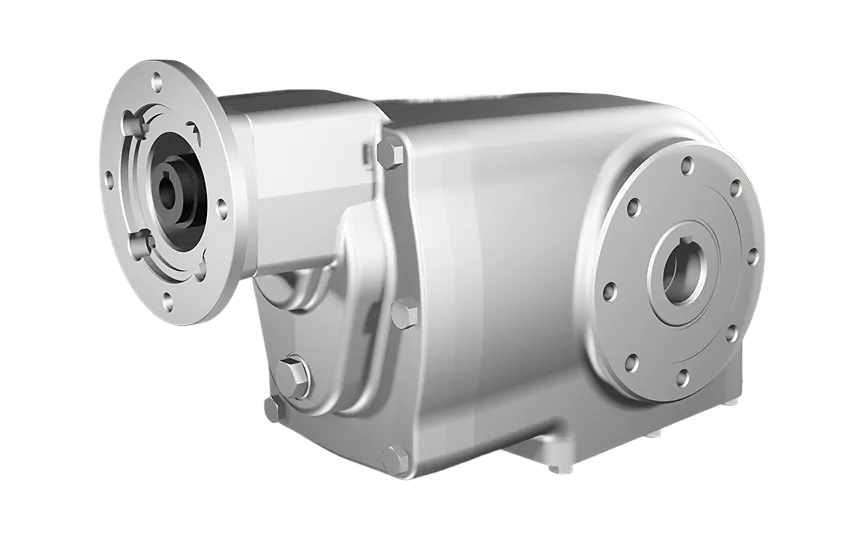

Clean-Geartech is a trusted European manufacturer of high-performance, hygienic gearboxes designed for industries with rigorous cleanliness standards. Their gear systems are crafted for optimal durability, corrosion resistance, and reliability — ideal for food processing, pharmaceuticals, biotechnology, and marine environments. Each product is engineered with precision to meet the operational demands of technical specialists and industrial engineers.Key Features, Benefits, and Application Use Cases:
• Stainless Steel Housing (AISI 316L): The entire gearbox is made from high-grade AISI 316L stainless steel, providing superior resistance to corrosion and aggressive cleaning agents — ideal for hygienic environments where CIP (Cleaning in Place) is required.
• Hollow Output Shaft Ø25H7 (Stainless Steel): Ensures direct and secure connection to driven components without additional couplings, reducing alignment errors and installation time in compact assemblies.
• Input Shaft Ø11 mm (Stainless Steel): Built to integrate seamlessly with standard drives, allowing flexible application across automated production lines and custom mechanical systems.
• Input Interface B14 (IEC size 63): Compatible with a wide range of IEC-standard motors, especially in modular machinery designs and servo-driven equipment for packaging, dosing, and conveying tasks.
• Gear Ratio 71.78:1: High reduction ratio allows for optimized torque output and controlled speed reduction, suitable for heavy-duty tasks in precision applications such as mixers, conveyors, and process line automation.
• 3-Stage Bevel Gear Set: Ensures minimal backlash and smooth, quiet operation — ideal for synchronized movement in robotic arms, lifts, or precision conveyors.
• High Mechanical Efficiency (94%): Delivers maximized power transmission with reduced energy losses, ensuring cost-effective operation in high-uptime industrial environments.
• Compact Gear Size X43N: The space-efficient design enables integration into tight mechanical layouts, especially where hygiene and space are critical, such as cleanrooms and compact processing stations. Clean-Geartech’s X43N bevel gearbox provides a robust and clean solution tailored for demanding industrial environments, offering reliability, performance, and full compliance with hygienic design principles.
• Stainless Steel Housing (AISI 316L): The entire gearbox is made from high-grade AISI 316L stainless steel, providing superior resistance to corrosion and aggressive cleaning agents — ideal for hygienic environments where CIP (Cleaning in Place) is required.
• Hollow Output Shaft Ø25H7 (Stainless Steel): Ensures direct and secure connection to driven components without additional couplings, reducing alignment errors and installation time in compact assemblies.
• Input Shaft Ø11 mm (Stainless Steel): Built to integrate seamlessly with standard drives, allowing flexible application across automated production lines and custom mechanical systems.
• Input Interface B14 (IEC size 63): Compatible with a wide range of IEC-standard motors, especially in modular machinery designs and servo-driven equipment for packaging, dosing, and conveying tasks.
• Gear Ratio 71.78:1: High reduction ratio allows for optimized torque output and controlled speed reduction, suitable for heavy-duty tasks in precision applications such as mixers, conveyors, and process line automation.
• 3-Stage Bevel Gear Set: Ensures minimal backlash and smooth, quiet operation — ideal for synchronized movement in robotic arms, lifts, or precision conveyors.
• High Mechanical Efficiency (94%): Delivers maximized power transmission with reduced energy losses, ensuring cost-effective operation in high-uptime industrial environments.
• Compact Gear Size X43N: The space-efficient design enables integration into tight mechanical layouts, especially where hygiene and space are critical, such as cleanrooms and compact processing stations. Clean-Geartech’s X43N bevel gearbox provides a robust and clean solution tailored for demanding industrial environments, offering reliability, performance, and full compliance with hygienic design principles.
Specifications
IP classification
IP66
Country of origin
ITA
HS-Code
84834021.000000
ERP net weight (Kg)
23.200000
Material
Stainless steel AISI 316L
Ratio
71,78:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
19.5
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.28
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834021
ERP net weight (Kg)
23.20
Country of origin
ITA
