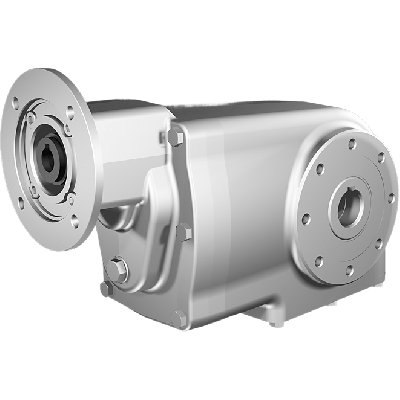

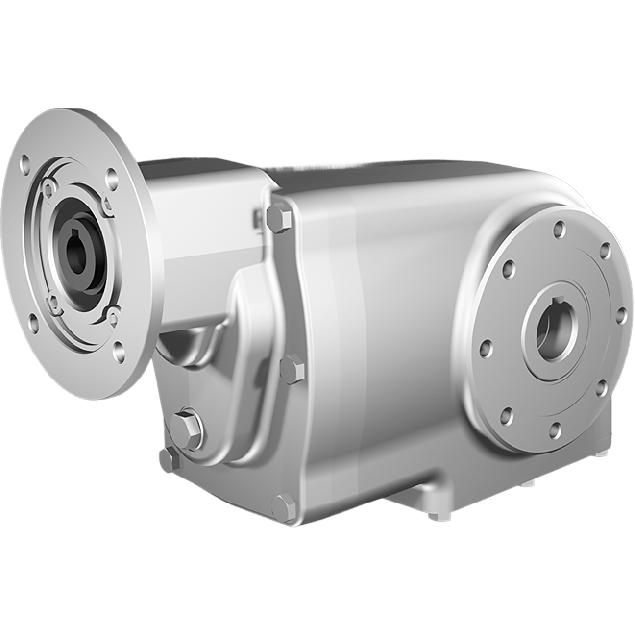

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 65,72:1, input 71B14, V5, stainless steel
HV82PX43NI04-CFBN-QV5-C-OFThis model features a gear ratio of 65.72:1 combined with three gear stages for efficient torque transmission. The gear input shaft diameter is 14 mm, while the output hollow shaft measures Ø25H7 mm. The gearbox offers 94% efficiency and connects via a B14 interface for IEC motor frame size 71.Constructed with AISI 316L stainless steel gears and a stainless steel (SS) output shaft, the unit ensures high durability in hygiene-critical or aggressive environments. The compact form factor is defined by the X43N gear size. Input and output BCDs are 85 mm and 90 mm, respectively, ensuring compatibility with a wide range of assemblies.
Specifications
Product description
Downloads
€2,155.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
65,72:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
21.3
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.31
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer specializing in high-performance gear units for demanding industrial applications. Known for their use of premium stainless steel AISI 316L and hygienic design principles, Clean-Geartech gearboxes are ideal for industries requiring both mechanical durability and compliance with strict sanitation standards, such as food processing, pharmaceutical production, and chemical processing.Key Features, Benefits, and Application Possibilities:
• Constructed in AISI 316L stainless steel — provides superior corrosion resistance, making the gear unit ideal for washdown environments and industries with aggressive cleaning protocols, such as food & beverage and pharmaceutical processing.
• 3-stage bevel gearbox design — allows for compact installation in constrained spaces, while maintaining high torque capability and transmission efficiency.
• Gear ratio of 65.72:1 — delivers significant torque multiplication, useful for slow-speed, high-load applications such as conveyors, mixers, and dosing pumps.
• High gear efficiency (94%) — reduces energy consumption and heat generation, improving overall system performance and supporting sustainability targets.
• Hollow output shaft Ø25H7 in stainless steel — facilitates easy integration onto driven shafts using clamp collars or shrink discs, simplifying installation and maintenance in hygienic environments.
• Gear motor interface 71B14 — compatible with a wide selection of IEC standard motors, allowing ease of configuration and motor selection flexibility for OEMs and systems integrators.
• Input shaft Ø14 mm — standard dimension supporting broad compatibility with couplings and connection components in diverse industrial systems.
• Gear unit size X43N — a compact form factor designed to provide high torque density, making it suitable for space-sensitive applications where performance cannot be compromised.
• Bevel gear transmission — ensures quiet operation and smooth torque transfer, ideal for precision systems in packaging, automation, or robotics sectors. This robust and hygienically designed bevel gear unit from Clean-Geartech delivers excellent performance, longevity, and corrosion resistance for demanding industrial environments.
• Constructed in AISI 316L stainless steel — provides superior corrosion resistance, making the gear unit ideal for washdown environments and industries with aggressive cleaning protocols, such as food & beverage and pharmaceutical processing.
• 3-stage bevel gearbox design — allows for compact installation in constrained spaces, while maintaining high torque capability and transmission efficiency.
• Gear ratio of 65.72:1 — delivers significant torque multiplication, useful for slow-speed, high-load applications such as conveyors, mixers, and dosing pumps.
• High gear efficiency (94%) — reduces energy consumption and heat generation, improving overall system performance and supporting sustainability targets.
• Hollow output shaft Ø25H7 in stainless steel — facilitates easy integration onto driven shafts using clamp collars or shrink discs, simplifying installation and maintenance in hygienic environments.
• Gear motor interface 71B14 — compatible with a wide selection of IEC standard motors, allowing ease of configuration and motor selection flexibility for OEMs and systems integrators.
• Input shaft Ø14 mm — standard dimension supporting broad compatibility with couplings and connection components in diverse industrial systems.
• Gear unit size X43N — a compact form factor designed to provide high torque density, making it suitable for space-sensitive applications where performance cannot be compromised.
• Bevel gear transmission — ensures quiet operation and smooth torque transfer, ideal for precision systems in packaging, automation, or robotics sectors. This robust and hygienically designed bevel gear unit from Clean-Geartech delivers excellent performance, longevity, and corrosion resistance for demanding industrial environments.
