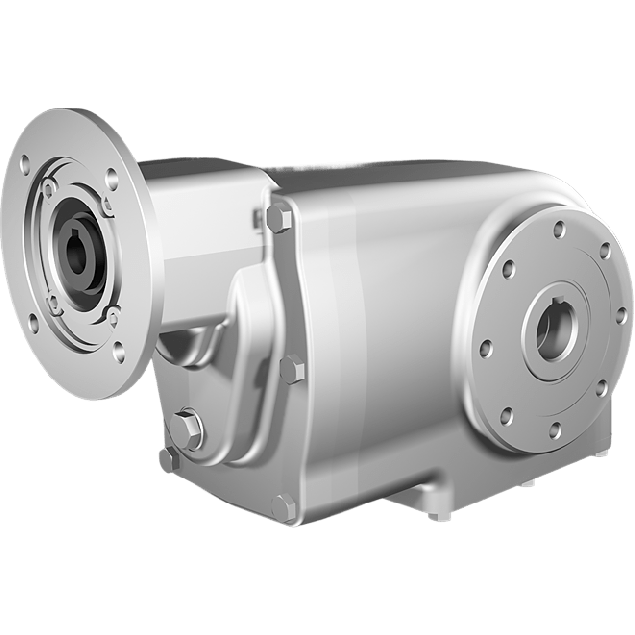

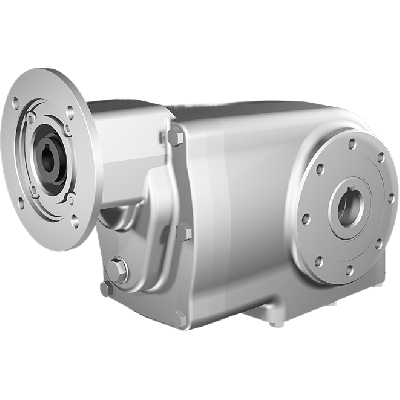

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 59,92:1, input 71B14, V5, stainless steel
HV82PX43NI03-CFBN-QV5-C-OFThis unit features a BCD input of 85 mm and a BCD output of 90 mm. With an efficiency of 94%, it minimizes power loss across its three-stage gear system. The gear ratio is 59.92:1, ideal for applications requiring significant torque conversion.The gear input shaft measures 14 mm, while the output shaft is a Ø25H7 hollow shaft. The gear motor interface is 71B14, allowing for standard motor coupling. Constructed with gear material in AISI 316L stainless steel, it ensures corrosion resistance and compliance with hygiene-critical applications.The product belongs to the X43N gear size series.
Specifications
Product description
Downloads
€2,155.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
59,92:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
23.4
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.34
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description: Clean-Geartech is a trusted European manufacturer of high-performance stainless steel gearboxes designed specifically for demanding industrial environments. Known for reliability, hygienic design, and superior corrosion resistance, Clean-Geartech's solutions are widely used in food processing, pharmaceutical, chemical, and marine industries, where cleanliness and durability are essential.Key Features, Benefits, and Application Possibilities:
Robust AISI 316L Stainless Steel Housing – Provides superior corrosion resistance in aggressive environments, ideal for food & beverage, pharmaceutical, and marine industries.
Ø25H7 Hollow Output Shaft in Stainless Steel – Supports direct shaft coupling for optimal torque transmission and easy integration in hygienic conveyor systems.
Ø14 mm Input Shaft – Compatible with standard IEC 71B14 motors, enabling seamless integration with various motor brands and configurations.
94% Efficiency – High mechanical efficiency ensures minimal energy loss, lower operating costs, and reduced heat generation, enhancing performance in continuous operations.
Three-Stage Bevel Gear Design – Delivers high torque with a compact footprint, well-suited for space-limited installation scenarios such as packaging lines or dosing systems.
59.92:1 Reduction Ratio – Offers precise motion control, making it ideal for applications requiring high torque and low output speeds such as mixers, agitators, or lifting mechanisms.
Gear Size X43N – Optimized for mid-range torque classes in sanitary applications, maintaining structural integrity under dynamic loads.
BCD Input 85 / BCD Output 90 – Provides standardized connection dimensions for compatibility with a broad range of mechanical components.
Gear Motor Interface: IEC 71B14 – Ensures fast replacement times and flexible assembly in modular equipment architectures. Designed for use in cleanroom and washdown-critical operations, the Clean-Geartech X43N gearbox ensures hygienic operation, long-term durability, and uncompromised performance in the most challenging environments.
Robust AISI 316L Stainless Steel Housing – Provides superior corrosion resistance in aggressive environments, ideal for food & beverage, pharmaceutical, and marine industries.
Ø25H7 Hollow Output Shaft in Stainless Steel – Supports direct shaft coupling for optimal torque transmission and easy integration in hygienic conveyor systems.
Ø14 mm Input Shaft – Compatible with standard IEC 71B14 motors, enabling seamless integration with various motor brands and configurations.
94% Efficiency – High mechanical efficiency ensures minimal energy loss, lower operating costs, and reduced heat generation, enhancing performance in continuous operations.
Three-Stage Bevel Gear Design – Delivers high torque with a compact footprint, well-suited for space-limited installation scenarios such as packaging lines or dosing systems.
59.92:1 Reduction Ratio – Offers precise motion control, making it ideal for applications requiring high torque and low output speeds such as mixers, agitators, or lifting mechanisms.
Gear Size X43N – Optimized for mid-range torque classes in sanitary applications, maintaining structural integrity under dynamic loads.
BCD Input 85 / BCD Output 90 – Provides standardized connection dimensions for compatibility with a broad range of mechanical components.
Gear Motor Interface: IEC 71B14 – Ensures fast replacement times and flexible assembly in modular equipment architectures. Designed for use in cleanroom and washdown-critical operations, the Clean-Geartech X43N gearbox ensures hygienic operation, long-term durability, and uncompromised performance in the most challenging environments.
