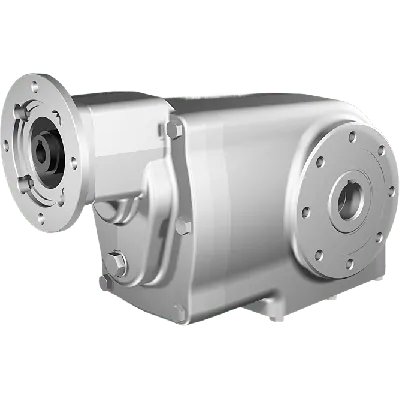

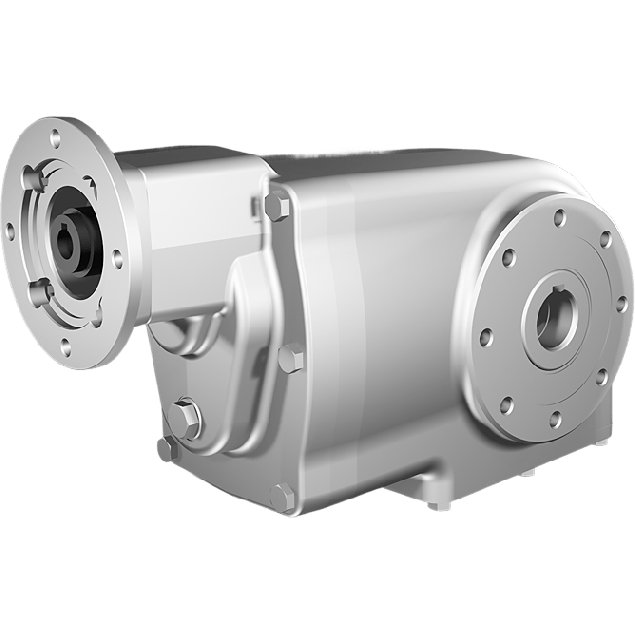

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 59,92:1, input 71B14, B3, stainless steel
HV82PX43NI03-CFBN-QB3-C-OFThis model features a gear ratio of 59.92:1 and a three-stage gear configuration, ensuring reliable torque transmission. With a gear input shaft diameter of 14 mm and a gear output shaft diameter of 25 mm, it integrates seamlessly with standard setups. The gear motor interface is IEC 71B14.Built from stainless steel AISI 316L, it offers high corrosion resistance. The gear size is X43N. It delivers 94% efficiency, with a BCD input of 85 mm and a BCD output of 90 mm.
Specifications
Product description
Downloads
€2,124.00
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
59,92:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
23.4
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.34
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a high-quality European manufacturer specializing in hygienic and corrosion-resistant gear units for demanding industrial applications. Known for their high-performance designs, Clean-Geartech gearboxes are built to meet the rigorous requirements of industries such as food and beverage, pharmaceuticals, marine, and chemical processing, where durability, cleanliness, and reliability are essential.Application-Oriented Key Features and Benefits:
• High-Precision Bevel Gear Transmission – With a 3-stage bevel gear configuration and a reduction ratio of 59.92:1, this unit offers high torque transmission with minimal backlash, ideal for servo-driven applications and precision motion control systems.
• Full AISI 316L Stainless Steel Construction – The gear housing and components are made of AISI 316L stainless steel, offering superior resistance to corrosion and aggressive cleaning agents, making it perfect for washdown environments and hygienic applications in food-grade installations.
• Hollow Output Shaft Ø25H7 in Stainless Steel – Facilitates space-saving and safe torque transmission with a secure shaft coupling; ideally suited for integration in conveyors, mixers, and rotary applications in clean environments.
• Input Shaft Ø14 mm with B14 Interface – Industry-standard 71B14 motor interface enables easy coupling to IEC motors, improving system flexibility and simplifying assembly in modular automation setups.
• High Mechanical Efficiency of 94% – Ensures energy-efficient performance, reducing power consumption and operating costs over the gearbox’s lifetime, especially beneficial in continuous-duty operation.
• Gear Size X43N – Compact footprint with high output torque capacity, optimized for limited installation spaces in OEM machine designs and compact automation cells.
• Precision Engineered for Industrial Reliability – 3-stage design offers smooth torque output and durability, even in high-load and high-humidity environments, making it suitable for applications such as packaging machinery, pharmaceutical dosing systems, and processing equipment.
• Maintenance-Friendly Design – Built with clean-in-place compatibility and hygienic geometry, significantly reducing downtime and the need for disassembly during sanitation procedures.
• High-Precision Bevel Gear Transmission – With a 3-stage bevel gear configuration and a reduction ratio of 59.92:1, this unit offers high torque transmission with minimal backlash, ideal for servo-driven applications and precision motion control systems.
• Full AISI 316L Stainless Steel Construction – The gear housing and components are made of AISI 316L stainless steel, offering superior resistance to corrosion and aggressive cleaning agents, making it perfect for washdown environments and hygienic applications in food-grade installations.
• Hollow Output Shaft Ø25H7 in Stainless Steel – Facilitates space-saving and safe torque transmission with a secure shaft coupling; ideally suited for integration in conveyors, mixers, and rotary applications in clean environments.
• Input Shaft Ø14 mm with B14 Interface – Industry-standard 71B14 motor interface enables easy coupling to IEC motors, improving system flexibility and simplifying assembly in modular automation setups.
• High Mechanical Efficiency of 94% – Ensures energy-efficient performance, reducing power consumption and operating costs over the gearbox’s lifetime, especially beneficial in continuous-duty operation.
• Gear Size X43N – Compact footprint with high output torque capacity, optimized for limited installation spaces in OEM machine designs and compact automation cells.
• Precision Engineered for Industrial Reliability – 3-stage design offers smooth torque output and durability, even in high-load and high-humidity environments, making it suitable for applications such as packaging machinery, pharmaceutical dosing systems, and processing equipment.
• Maintenance-Friendly Design – Built with clean-in-place compatibility and hygienic geometry, significantly reducing downtime and the need for disassembly during sanitation procedures.
