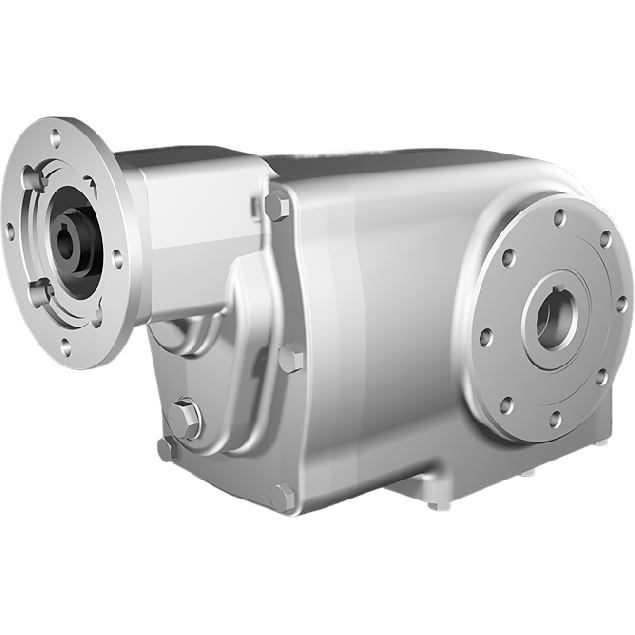

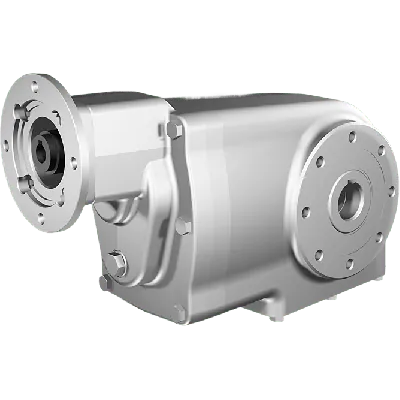

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 59,92:1, input 63B14, V5, stainless steel
HV82PX43NI03-CFBN-PV5-B-OFIt features a gear ratio of 59.92:1 and a three-stage configuration for stable torque transmission. The input shaft diameter is 11 mm and the output shaft is a Ø25 mm H7 hollow shaft. With a BCD input of 75 mm and a BCD output of 90 mm, it interfaces via a 63B14 motor flange.Constructed from stainless steel AISI 316L, the gearbox housing and internal gears offer excellent corrosion resistance. The unit achieves 94% efficiency and belongs to the X43N gear size class.
Specifications
Product description
Downloads
€2,150.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
59,92:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
23.4
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.34
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a trusted European manufacturer specializing in advanced hygienic gearbox solutions for demanding industrial applications. Renowned for their use of premium materials like AISI 316L stainless steel, Clean-Geartech products are engineered for optimal performance and long-lasting reliability in corrosive, high-hygiene or washdown environments, especially within food, pharmaceutical, and chemical industries. Key Product Features and Application Benefits:
● High Gear Ratio of 59.92:1 enables significant torque multiplication for applications requiring precise, high-load power transmission at low output speeds.
● Output Shaft Ø25H7 (Stainless Steel) ensures high dimensional accuracy and corrosion resistance, ideal for humid or chemically aggressive environments.
● Stainless Steel Housing (AISI 316L) provides excellent chemical and corrosion resistance, perfectly suited for cleanroom environments, food processing machinery, and pharmaceutical equipment.
● Input Interface 63B14 allows for easy integration with standard IEC motors, enabling seamless assembly and flexibility across various motor configurations.
● Efficiency up to 94% minimizes energy loss, ensuring energy-efficient operation and reducing heat generation in high-duty cycles.
● 3 Gear Stages enable smooth and powerful torque transmission with improved load capacity, suitable for conveyor systems, mixing equipment, and industrial robotics.
● Gear Size X43N offers a compact yet robust build, delivering high torque in space-constrained industrial installations.
● Input Shaft Ø11 mm is designed for durability and consistent mechanical engagement under cyclic loads.
● Ideal for industries with stringent hygiene and corrosion-resistance requirements such as food & beverage, dairy, chemical processing, cleanroom manufacturing, and marine applications.
● All-metal construction with no painted surfaces minimizes contamination risks and simplifies CIP/SIP cleaning procedures in regulated environments. With Clean-Geartech X43N, you gain a precision-engineered gearbox built to meet the highest standards in hygiene, durability, and mechanical efficiency.
● High Gear Ratio of 59.92:1 enables significant torque multiplication for applications requiring precise, high-load power transmission at low output speeds.
● Output Shaft Ø25H7 (Stainless Steel) ensures high dimensional accuracy and corrosion resistance, ideal for humid or chemically aggressive environments.
● Stainless Steel Housing (AISI 316L) provides excellent chemical and corrosion resistance, perfectly suited for cleanroom environments, food processing machinery, and pharmaceutical equipment.
● Input Interface 63B14 allows for easy integration with standard IEC motors, enabling seamless assembly and flexibility across various motor configurations.
● Efficiency up to 94% minimizes energy loss, ensuring energy-efficient operation and reducing heat generation in high-duty cycles.
● 3 Gear Stages enable smooth and powerful torque transmission with improved load capacity, suitable for conveyor systems, mixing equipment, and industrial robotics.
● Gear Size X43N offers a compact yet robust build, delivering high torque in space-constrained industrial installations.
● Input Shaft Ø11 mm is designed for durability and consistent mechanical engagement under cyclic loads.
● Ideal for industries with stringent hygiene and corrosion-resistance requirements such as food & beverage, dairy, chemical processing, cleanroom manufacturing, and marine applications.
● All-metal construction with no painted surfaces minimizes contamination risks and simplifies CIP/SIP cleaning procedures in regulated environments. With Clean-Geartech X43N, you gain a precision-engineered gearbox built to meet the highest standards in hygiene, durability, and mechanical efficiency.
