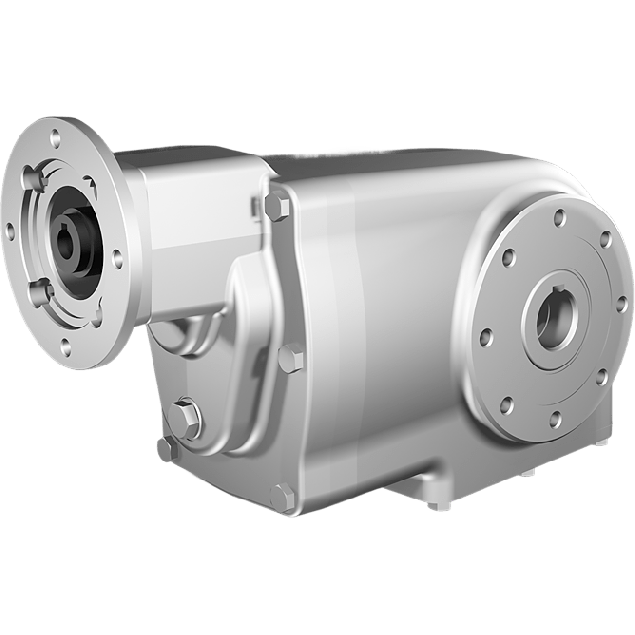

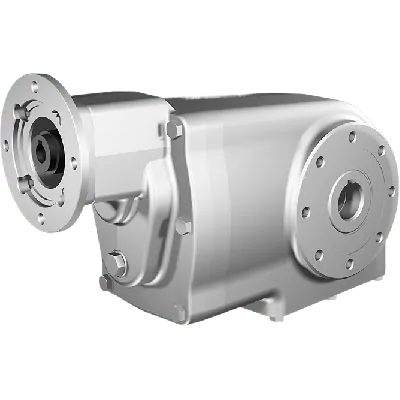

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 55,22:1, input 63B14, V5, stainless steel
HV82PX43NI02-CFBN-PV5-B-OFThis unit features a gear ratio of 55.22:1 and 94% efficiency, making it suitable for torque-intensive, low-speed operations. The stainless steel AISI 316L gear housing and components ensure durability in harsh environments. It has a 25 mm output shaft diameter (Ø25H7 hollow shaft) and an 11 mm input shaft diameter. Fitted with a 63B14 motor interface, it connects easily to standard motors.With 3 gear stages and the X43N gear size, this bevel gearbox is constructed for reliable power transmission. Includes BCD input: 75 mm and BCD output: 90 mm.
Specifications
Product description
Downloads
€2,150.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
55,22:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
25.4
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.37
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand/Manufacturer Description: Clean-Geartech is a reputable manufacturer known for producing high-performance and hygienic stainless steel gearboxes specifically designed for industries with strict cleanliness and corrosion resistance requirements. With a strong commitment to quality and reliability, Clean-Geartech gear units are engineered for demanding applications in food and beverage processing, pharmaceuticals, chemical manufacturing, and marine sectors.Key Features, Functional Benefits & Application Possibilities:
Stainless Steel AISI 316L Construction: Delivers excellent corrosion resistance for demanding environments, making it ideal for applications with frequent washdowns or exposure to aggressive chemicals.
High Gear Efficiency (94%): Contributes to energy savings and reduced operating costs over time, suitable for continuous-duty operations in automated industrial systems.
Bevel Gear Design with 3 Stages: Provides smooth and efficient 90° power transmission ideal for space-constrained equipment layouts in conveyor systems and processing machinery.
Output Hollow Shaft Ø25H7 (Stainless Steel): Allows easy and secure integration with driven components, especially where alignment and hygiene are critical, such as in bottling and packaging lines.
Compact Gear Size (X43N): Enables installation in confined spaces without compromising torque output, perfect for compact machine designs in bio-processing or semiconductor equipment.
Ratio 55.22:1: Offers high torque multiplication for low-speed, high-torque applications including mixers, agitators, and lifting mechanisms in pharmaceutical or dairy production.
Input Shaft Diameter Ø11mm with IEC 63B14 Motor Interface: Simplifies motor mounting and is compatible with standard IEC motors for ease of integration and maintenance.
Stainless Steel Construction of All External Components (SS Input Shaft & Hollow Shaft): Provides maximum resistance against corrosion and bacterial growth, fulfilling strict HACCP and FDA compliance for hygienic areas.
Suitable for Horizontal or Vertical Mounting: Offers flexible installation for different machinery types such as packaging units, cleanroom robots, or precision dosing systems. Clean-Geartech X43N is engineered with precision and durability to meet the highest standards of industrial reliability and sanitation.
Stainless Steel AISI 316L Construction: Delivers excellent corrosion resistance for demanding environments, making it ideal for applications with frequent washdowns or exposure to aggressive chemicals.
High Gear Efficiency (94%): Contributes to energy savings and reduced operating costs over time, suitable for continuous-duty operations in automated industrial systems.
Bevel Gear Design with 3 Stages: Provides smooth and efficient 90° power transmission ideal for space-constrained equipment layouts in conveyor systems and processing machinery.
Output Hollow Shaft Ø25H7 (Stainless Steel): Allows easy and secure integration with driven components, especially where alignment and hygiene are critical, such as in bottling and packaging lines.
Compact Gear Size (X43N): Enables installation in confined spaces without compromising torque output, perfect for compact machine designs in bio-processing or semiconductor equipment.
Ratio 55.22:1: Offers high torque multiplication for low-speed, high-torque applications including mixers, agitators, and lifting mechanisms in pharmaceutical or dairy production.
Input Shaft Diameter Ø11mm with IEC 63B14 Motor Interface: Simplifies motor mounting and is compatible with standard IEC motors for ease of integration and maintenance.
Stainless Steel Construction of All External Components (SS Input Shaft & Hollow Shaft): Provides maximum resistance against corrosion and bacterial growth, fulfilling strict HACCP and FDA compliance for hygienic areas.
Suitable for Horizontal or Vertical Mounting: Offers flexible installation for different machinery types such as packaging units, cleanroom robots, or precision dosing systems. Clean-Geartech X43N is engineered with precision and durability to meet the highest standards of industrial reliability and sanitation.
