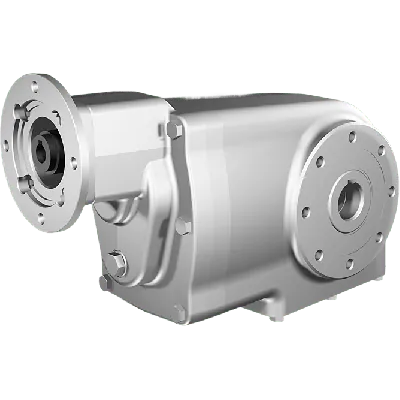

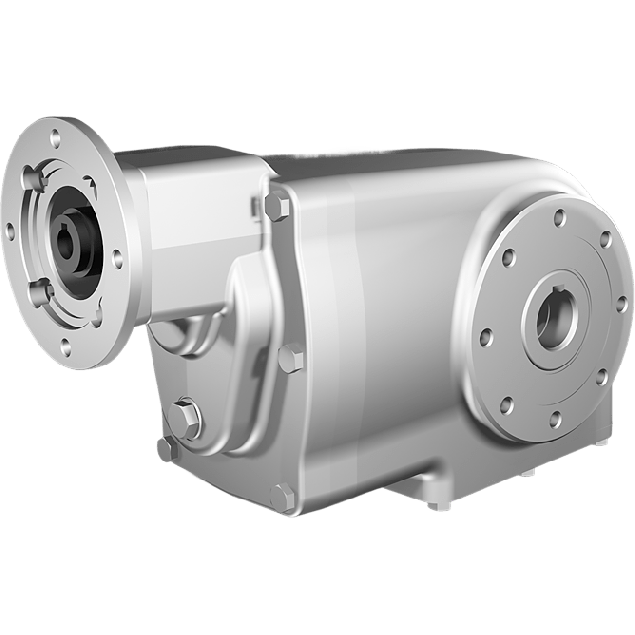

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 55,22:1, input 63B14, B3, stainless steel
HV82PX43NI02-CFBN-PB3-B-OFFeaturing a gear ratio of 55.22:1 and 94% efficiency, this unit supports high transmission performance. The gear input shaft diameter is 11 mm and the gear output shaft is a Ø25H7 hollow shaft. Housing a 3-stage gear set and designed with a Size X43N frame, it connects via a 63B14 motor interface. Constructed from stainless steel AISI 316L, including the bevel gear set, it is suited for washdown, food, and pharma environments where hygiene and corrosion-resistance are critical.
Specifications
Product description
Downloads
€2,119.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
55,22:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
25.4
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.37
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech Clean-Geartech is a leading European manufacturer of hygienic and stainless-steel gear solutions dedicated to demanding industrial environments. Known for their precision, durability, and contamination-free technology, Clean-Geartech products are specifically engineered for use in food processing, pharmaceuticals, biotech, and all industries requiring advanced cleanliness and reliability. Their gearboxes are made of high-grade AISI 316L stainless steel to ensure maximum corrosion resistance and seamless operation in washdown conditions.Main Features and Application Advantages:
• Made entirely of AISI 316L stainless steel – ensures superior corrosion resistance in aggressive environments including CIP and SIP applications.
• Bevel gear design with three stages – provides high torque output while maintaining compact dimensions for space-critical applications.
• Hollow output shaft Ø25H7 in stainless steel – enables direct shaft mounting, reducing component count and improving alignment accuracy.
• Precision-machined 11 mm input shaft – guarantees perfect motor coupling and energy-efficient torque transmission.
• Compatible with IEC 63B14 motor interface – allows seamless integration with standard servo and electric motors used across various industrial platforms.
• Gear ratio of 55.22:1 – optimized for slow-speed, high-torque applications such as mixers, conveyors, and dosing units.
• High mechanical efficiency of 94% – reduces energy consumption and heat generation, enhancing system reliability and component lifespan.
• Compact housing size X43N – ideal for installations with limited space and retrofit scenarios.
• Engineered for industries with hygiene-critical requirements – perfect for food, beverage, pharmaceutical, and chemical production lines. Use the Clean-Geartech X43N where cleanliness, durability, and performance cannot be compromised. It is the ideal solution for engineers and technical experts working in automated systems, particularly where stainless steel builds and efficient power transmission are crucial.
• Made entirely of AISI 316L stainless steel – ensures superior corrosion resistance in aggressive environments including CIP and SIP applications.
• Bevel gear design with three stages – provides high torque output while maintaining compact dimensions for space-critical applications.
• Hollow output shaft Ø25H7 in stainless steel – enables direct shaft mounting, reducing component count and improving alignment accuracy.
• Precision-machined 11 mm input shaft – guarantees perfect motor coupling and energy-efficient torque transmission.
• Compatible with IEC 63B14 motor interface – allows seamless integration with standard servo and electric motors used across various industrial platforms.
• Gear ratio of 55.22:1 – optimized for slow-speed, high-torque applications such as mixers, conveyors, and dosing units.
• High mechanical efficiency of 94% – reduces energy consumption and heat generation, enhancing system reliability and component lifespan.
• Compact housing size X43N – ideal for installations with limited space and retrofit scenarios.
• Engineered for industries with hygiene-critical requirements – perfect for food, beverage, pharmaceutical, and chemical production lines. Use the Clean-Geartech X43N where cleanliness, durability, and performance cannot be compromised. It is the ideal solution for engineers and technical experts working in automated systems, particularly where stainless steel builds and efficient power transmission are crucial.
