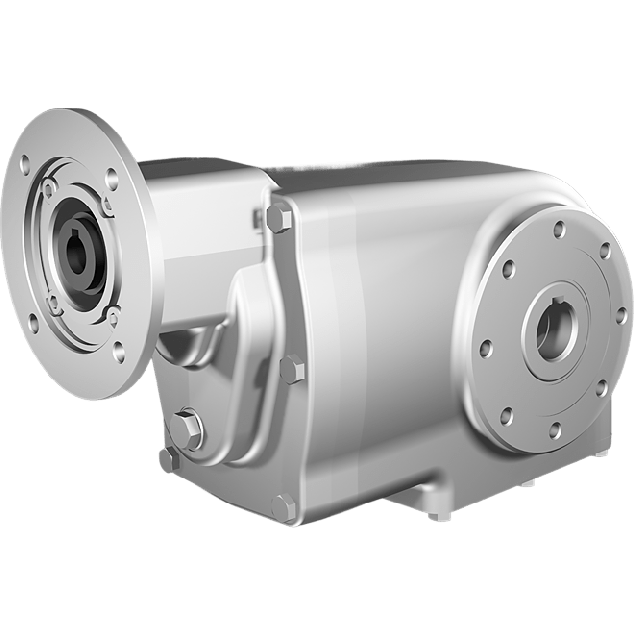

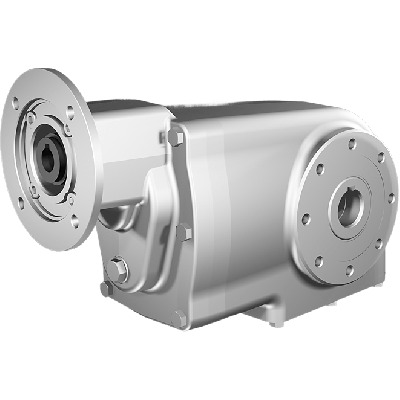

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 50,35:1, input 71B14, V5, stainless steel
HV82PX43NI01-CFBN-QV5-C-OFThis unit features a gear ratio of 50.35:1 and a three-stage transmission, ensuring reliable torque transfer. The hollow output shaft (Ø25H7) and the 14 mm input shaft provide secure mechanical integration. Its gear interface matches motor size 71B14, allowing flexible coupling.With a gear size X43N and an efficiency of 94%, it delivers dependable mechanical efficiency. The gearbox housing and internal components are manufactured from stainless steel AISI 316L, making it suitable for hygienic and corrosive environments.Input and output BCD measurements are 85 mm and 90 mm, respectively.
Specifications
Product description
Downloads
€2,155.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
50,35:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
27.8
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.4
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufactured by Clean-Geartech, a trusted brand recognized for engineering precision, reliability, and uncompromising hygiene in industrial gear solutions. Clean-Geartech specializes in designing stainless steel gear units developed for demanding environments such as food processing, pharmaceutical production, chemical handling, and other cleanroom applications.The Clean-Geartech X43N is a three-stage bevel gearbox constructed entirely from AISI 316L stainless steel. Combining advanced mechanical performance with corrosion resistance and hygienic design, it’s ideal for engineers seeking longevity and operational safety in aggressive industrial environments.Key Features, Functional Benefits & Use Cases:
• Entire gear unit is made from AISI 316L stainless steel — ensures high resistance to corrosion and acids, making it ideal for use in food-grade and chemical processing environments.
• Ø25H7 stainless steel hollow output shaft — offers robust torque transmission with precise fitment and easy integration into machine systems requiring high axial loads.
• Compact X43N housing size — provides versatile mounting across applications with limited installation space.
• High efficiency of 94% — leads to energy savings and minimal heat generation during continuous operation, benefiting automated and long-cycle systems.
• Input interface 71B14 motor flange — compatible with standardized IEC motor couplings for easy integration and quick motor swaps without modifying equipment layout.
• Precision 50.35:1 gear ratio across three stages — assures consistent speed reduction and torque amplification for conveying, dosing, or lifting applications.
• Ø14 mm input shaft — supports standard couplings and offers flexibility in motor selection or integration with variable-speed drives.
• Designed for hygienic and washdown environments — suitable for CIP (clean-in-place) processes in meat, dairy, pharmaceutical, or marine sectors.
• BCD Input: 85 mm / BCD Output: 90 mm — standard bolt-circle dimensions support quick retrofit installations. This gearbox is the optimal choice for technical professionals requiring uncompromised hygiene, long service life, and consistent mechanical output in challenging industrial settings.
• Entire gear unit is made from AISI 316L stainless steel — ensures high resistance to corrosion and acids, making it ideal for use in food-grade and chemical processing environments.
• Ø25H7 stainless steel hollow output shaft — offers robust torque transmission with precise fitment and easy integration into machine systems requiring high axial loads.
• Compact X43N housing size — provides versatile mounting across applications with limited installation space.
• High efficiency of 94% — leads to energy savings and minimal heat generation during continuous operation, benefiting automated and long-cycle systems.
• Input interface 71B14 motor flange — compatible with standardized IEC motor couplings for easy integration and quick motor swaps without modifying equipment layout.
• Precision 50.35:1 gear ratio across three stages — assures consistent speed reduction and torque amplification for conveying, dosing, or lifting applications.
• Ø14 mm input shaft — supports standard couplings and offers flexibility in motor selection or integration with variable-speed drives.
• Designed for hygienic and washdown environments — suitable for CIP (clean-in-place) processes in meat, dairy, pharmaceutical, or marine sectors.
• BCD Input: 85 mm / BCD Output: 90 mm — standard bolt-circle dimensions support quick retrofit installations. This gearbox is the optimal choice for technical professionals requiring uncompromised hygiene, long service life, and consistent mechanical output in challenging industrial settings.
