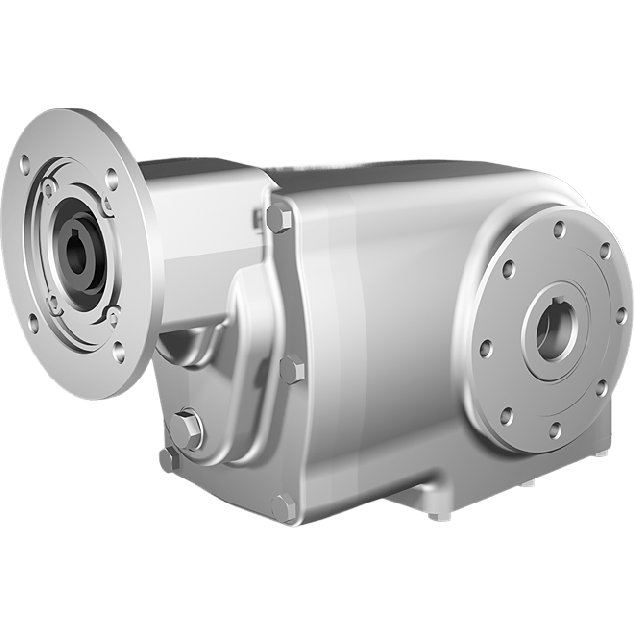

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 50,35:1, input 71B14, B3, stainless steel
HV82PX43NI01-CFBN-QB3-C-OFThe Clean-Geartech X43N, bevel gear Ø25H7 hollow shaft, 50.35:1, input 71B14, stainless steel, is designed for applications requiring durability and compatibility with hygienic environments. It features a gear size of X43N and a gear ratio of 50.35:1, ensuring reliable speed reduction. The gear input shaft diameter is 14 mm and the gear output shaft is Ø25H7 mm. The three-stage gear system is constructed for operational efficiency, with a measured efficiency of 94%. The gear housing is made of AISI 316L stainless steel, suitable for corrosion-prone environments. It uses a 71B14 motor interface, with input BCD 85 mm and output BCD 90 mm.
Specifications
Product description
Downloads
€2,124.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
50,35:1
BCD input
85
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X43N
Output speed at 1400 RPM
27.8
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a high-end European manufacturer specializing in hygienic and corrosion-resistant power transmission solutions for industrial applications. The company is renowned for producing gear units designed specifically for applications in demanding environments such as food processing, pharmaceutical and chemical industries, where stainless steel construction and easy-clean surfaces are essential.**Technical Application-Focused Description:**
Designed with full AISI 316L stainless steel housing, the X43N gearbox offers exceptional corrosion resistance, making it ideal for demanding environments including food, marine, and chemical industries.
Three-stage transmission with a 50.35:1 gear ratio provides high torque output with low rotational speed, ideal for applications requiring precise motion control and reliable load handling.
Efficient bevel gear architecture ensures a mechanical efficiency of up to 94%, resulting in optimized energy consumption in continuous operation environments.
Compatible with standard IEC motor interface size 71B14, allowing for seamless integration with a wide range of electric motors without adapters or modifications.
Equipped with a Ø25H7 stainless steel hollow output shaft (SS), enabling compact installation and direct connectivity to driven components such as conveyors, mixers or rotary actuators.
Compact gear size X43N ensures an optimal balance between performance and footprint, making it suitable for installations with limited space.
The input shaft diameter of 14 mm supports flexible coupling configurations and precision inline power transmission.
The gearhead's robust construction and stainless steel internals offer high resistance to wear and cleaning agents, supporting high-pressure washdown (IP-rated setups) for hygienic applications.
Thanks to its modular design, the gearbox can be customized or integrated into OEM equipment for automation lines, mixers, filling systems, or marine control systems.
Designed with full AISI 316L stainless steel housing, the X43N gearbox offers exceptional corrosion resistance, making it ideal for demanding environments including food, marine, and chemical industries.
Three-stage transmission with a 50.35:1 gear ratio provides high torque output with low rotational speed, ideal for applications requiring precise motion control and reliable load handling.
Efficient bevel gear architecture ensures a mechanical efficiency of up to 94%, resulting in optimized energy consumption in continuous operation environments.
Compatible with standard IEC motor interface size 71B14, allowing for seamless integration with a wide range of electric motors without adapters or modifications.
Equipped with a Ø25H7 stainless steel hollow output shaft (SS), enabling compact installation and direct connectivity to driven components such as conveyors, mixers or rotary actuators.
Compact gear size X43N ensures an optimal balance between performance and footprint, making it suitable for installations with limited space.
The input shaft diameter of 14 mm supports flexible coupling configurations and precision inline power transmission.
The gearhead's robust construction and stainless steel internals offer high resistance to wear and cleaning agents, supporting high-pressure washdown (IP-rated setups) for hygienic applications.
Thanks to its modular design, the gearbox can be customized or integrated into OEM equipment for automation lines, mixers, filling systems, or marine control systems.
