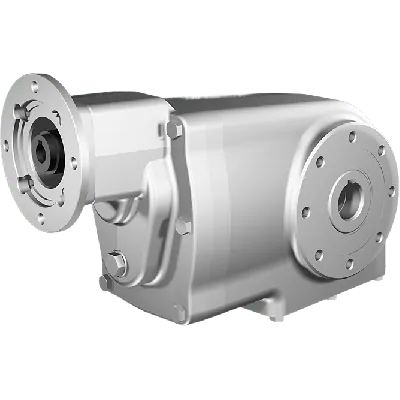

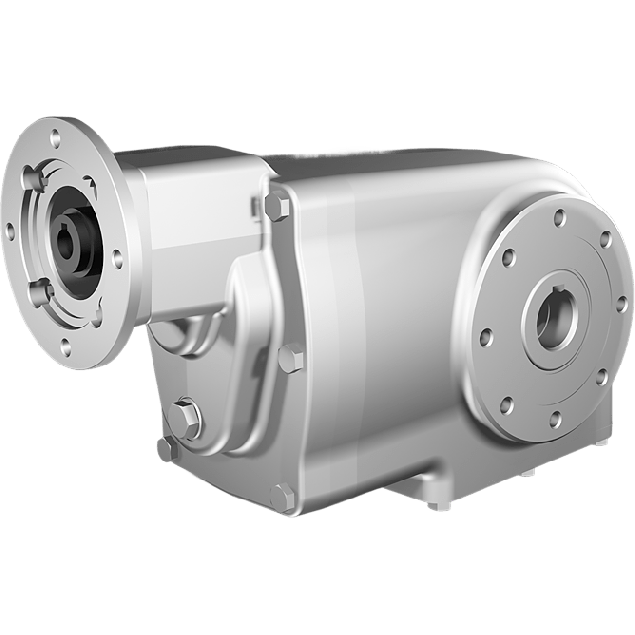

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 50,35:1, input 63B14, V5, stainless steel
HV82PX43NI01-CFBN-PV5-B-OFThis unit features a gear ratio of 50.35:1 and a gear size classified as X43N. It is built with a three-stage gear configuration for torque optimization and comes with a stainless steel AISI 316L gear housing. The input shaft diameter is 11 mm, configured for a standard 63B14 gear motor interface. The output shaft is a Ø25H7 hollow shaft, also made of stainless steel. With an efficiency of 94%, and handling a BCD input of 75 mm and BCD output of 90 mm, this bevel gear unit ensures robust mechanical compatibility and corrosion resistance.
Specifications
Product description
Downloads
€2,150.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
50,35:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
27.8
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.4
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description: Clean-Geartech is a leading manufacturer of precision gearboxes engineered specifically for demanding industrial and hygienic applications. Known for their high-quality materials, advanced engineering design, and outstanding performance in corrosive or contaminant-sensitive environments, Clean-Geartech provides robust and efficient transmission units tailored to meet the expectations of industrial engineers and technical specialists across multiple sectors.Key Features, Benefits & Application Possibilities:
Constructed from AISI 316L stainless steel, the gearbox offers superior corrosion resistance, ideal for food and beverage processing, pharmaceuticals, and marine environments.
Equipped with a Ø25H7 stainless steel hollow output shaft, supporting easy integration with drive systems requiring hygiene and anti-corrosion properties.
The 50.35:1 reduction ratio enables precise torque conversion, making the gearbox suitable for applications requiring controlled speed and high output torque, such as conveyors, mixers, and automated machinery.
Gear input shaft with a diameter of 11 mm ensures stable power transmission from standard motor connections.
High efficiency of 94% significantly reduces energy losses, leading to enhanced overall system performance and lower operational costs.
Input motor interface: IEC 63B14 flange, ensuring seamless compatibility with standard electric motors in industrial automation and process equipment.
Three-stage bevel gear transmission allows compact installation with high torque output, making it suitable for space-restricted environments.
Gear size X43N defines a compact and modular unit optimized for both vertical and horizontal installations across industrial platforms.
The hygienic, crevice-free design prevents accumulation of contaminants, supporting CIP (Clean-in-Place) procedures in sterile processing zones.
Perfectly suited for sectors requiring long service life and minimal maintenance, including chemical handling, clean-room robotics, and bulk material handling.Designed for reliability and high-performance in the most demanding industrial environments, the Clean-Geartech X43N bevel gearbox offers engineers a robust and efficient solution with unmatched hygienic and operational standards.
Constructed from AISI 316L stainless steel, the gearbox offers superior corrosion resistance, ideal for food and beverage processing, pharmaceuticals, and marine environments.
Equipped with a Ø25H7 stainless steel hollow output shaft, supporting easy integration with drive systems requiring hygiene and anti-corrosion properties.
The 50.35:1 reduction ratio enables precise torque conversion, making the gearbox suitable for applications requiring controlled speed and high output torque, such as conveyors, mixers, and automated machinery.
Gear input shaft with a diameter of 11 mm ensures stable power transmission from standard motor connections.
High efficiency of 94% significantly reduces energy losses, leading to enhanced overall system performance and lower operational costs.
Input motor interface: IEC 63B14 flange, ensuring seamless compatibility with standard electric motors in industrial automation and process equipment.
Three-stage bevel gear transmission allows compact installation with high torque output, making it suitable for space-restricted environments.
Gear size X43N defines a compact and modular unit optimized for both vertical and horizontal installations across industrial platforms.
The hygienic, crevice-free design prevents accumulation of contaminants, supporting CIP (Clean-in-Place) procedures in sterile processing zones.
Perfectly suited for sectors requiring long service life and minimal maintenance, including chemical handling, clean-room robotics, and bulk material handling.Designed for reliability and high-performance in the most demanding industrial environments, the Clean-Geartech X43N bevel gearbox offers engineers a robust and efficient solution with unmatched hygienic and operational standards.
