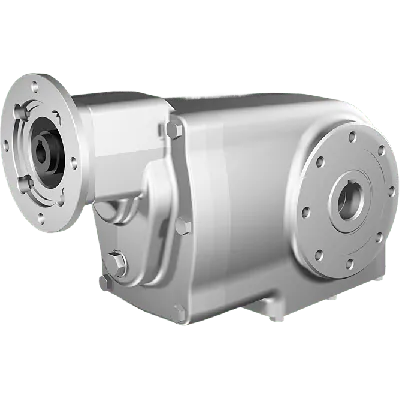

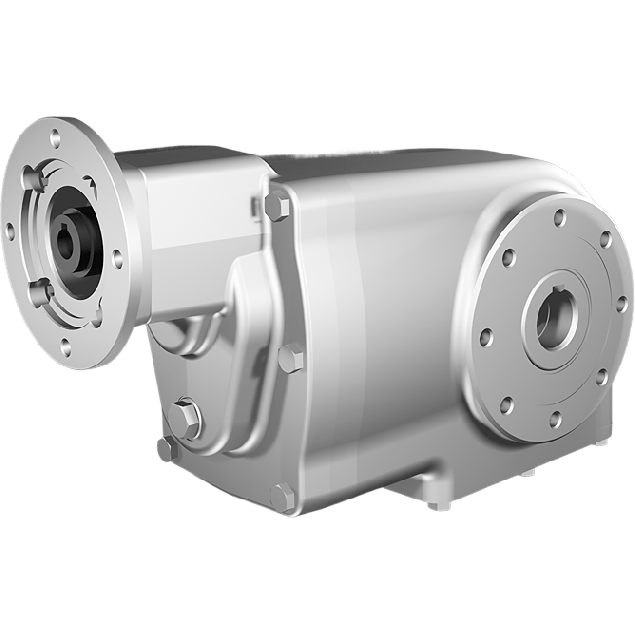

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 50,35:1, input 63B14, B3, stainless steel
HV82PX43NI01-CFBN-PB3-B-OFThis unit offers a gear ratio of 50.35:1 through 3 gear stages, delivering a mechanical efficiency of 94%. The bevel gear body is made of stainless steel AISI 316L, making it suitable for use in aggressive environments. The gearbox features a 25 mm output shaft in H7 tolerance and a 11 mm input shaft, compatible with a 63B14 motor interface. Its BCD input is 75 mm and the BCD output is 90 mm. The gear size is X43N, providing a compact footprint for integration where space is limited.
Specifications
Product description
Downloads
€2,119.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
50,35:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
27.8
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium European manufacturer specializing in high-hygiene stainless steel gearboxes designed for demanding industrial applications. With its focus on corrosion resistance, durability, and clean design, Clean-Geartech solutions are widely used in the food processing, pharmaceutical, chemical, and marine industries, where hygienic and robust components are essential. The X43N series stands out as a high-performance bevel gear solution crafted entirely from AISI 316L stainless steel.Key Features, Advantages, and Applications:
Manufactured in AISI 316L stainless steel, the gearbox housing offers superior corrosion resistance – ideal for washdown environments in food and beverage, dairy, and pharmaceutical industries.
High efficiency of 94% ensures top-level energy transmission and reduced operational losses in automation, conveyor systems, and cleanroom machinery.
Bevel gear configuration in 3 stages allows optimal torque transmission at a 90° axis change – perfect for compact machinery requiring directional motion conversion.
Integrated Ø25H7 stainless steel hollow output shaft allows direct shaft mounting, reducing the need for additional coupling elements, which simplifies installation and maintenance.
Mechanically robust with a gear ratio of 50.35:1, providing excellent speed reduction and torque increase needed in dosing systems, vertical mixers, and slow-speed conveyors.
Input interface B14 flange (size 63) enables direct attachment of IEC standard motors, allowing for design flexibility in drive integration.
Stainless steel input shaft Ø11 mm ensures complete corrosion resistance at the power entry point, supporting applications in wet or chemically aggressive settings.
Compact gear size X43N allows easy integration in confined spaces or modular machinery systems, supporting lean equipment design.
Backlash-minimized bevel gearing enhances positioning accuracy in robotics, filling lines, and precision-controlled motion systems.
Clean, crevice-free exterior geometry simplifies sanitation procedures – ideal for industries governed by strict hygienic protocols (e.g. FDA, EHEDG).Clean-Geartech X43N represents a synergy of hygienic design and technical performance, engineered for engineers demanding reliability, precision, and cleanliness in mission-critical environments.
Manufactured in AISI 316L stainless steel, the gearbox housing offers superior corrosion resistance – ideal for washdown environments in food and beverage, dairy, and pharmaceutical industries.
High efficiency of 94% ensures top-level energy transmission and reduced operational losses in automation, conveyor systems, and cleanroom machinery.
Bevel gear configuration in 3 stages allows optimal torque transmission at a 90° axis change – perfect for compact machinery requiring directional motion conversion.
Integrated Ø25H7 stainless steel hollow output shaft allows direct shaft mounting, reducing the need for additional coupling elements, which simplifies installation and maintenance.
Mechanically robust with a gear ratio of 50.35:1, providing excellent speed reduction and torque increase needed in dosing systems, vertical mixers, and slow-speed conveyors.
Input interface B14 flange (size 63) enables direct attachment of IEC standard motors, allowing for design flexibility in drive integration.
Stainless steel input shaft Ø11 mm ensures complete corrosion resistance at the power entry point, supporting applications in wet or chemically aggressive settings.
Compact gear size X43N allows easy integration in confined spaces or modular machinery systems, supporting lean equipment design.
Backlash-minimized bevel gearing enhances positioning accuracy in robotics, filling lines, and precision-controlled motion systems.
Clean, crevice-free exterior geometry simplifies sanitation procedures – ideal for industries governed by strict hygienic protocols (e.g. FDA, EHEDG).Clean-Geartech X43N represents a synergy of hygienic design and technical performance, engineered for engineers demanding reliability, precision, and cleanliness in mission-critical environments.
