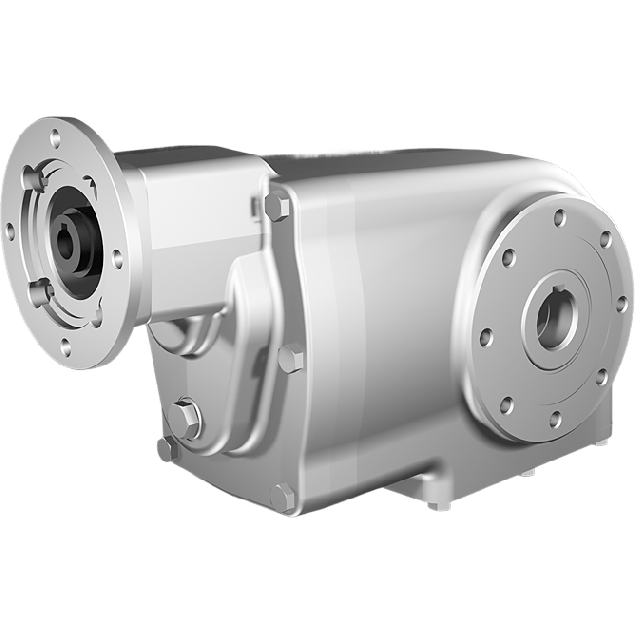

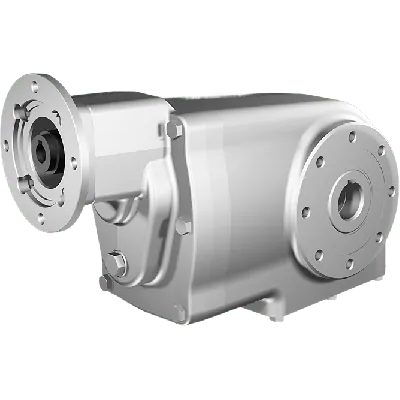

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 323,37:1, input 63B14, V5, stainless steel
HV82PX43NI16-CFBN-PV5-B-OFThis unit features a gear ratio of 323.37:1 and efficiency of 94%. It operates through 3 gear stages and is configured with a 63B14 gear motor interface. The gear size is X43N, with a gear input shaft diameter of 11 mm and a gear output shaft diameter of 25 mm.Constructed in AISI 316L stainless steel, including the SS hollow output shaft, it ensures high durability in washdown or corrosive conditions. The BCD input is 75 mm and the BCD output is 90 mm.
Specifications
Product description
Downloads
€2,150.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
323,37:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
4.3
Max output torque (Nm)
136
Max kW input at 1400 rpm
0.07
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer: Clean-Geartech Clean-Geartech is a renowned manufacturer specializing in hygienic drive solutions crafted from high-grade materials, designed for demanding industrial environments. Their gear systems are engineered for optimal reliability, efficiency, and hygiene, making them ideal for applications where corrosion resistance and cleanliness are essential, such as food processing, pharmaceuticals, chemical processing, and marine environments.Key Product Features and Application Advantages:
High Gear Ratio of 323.37:1 – Offers exceptional torque multiplication, ideal for low-speed, high-precision applications such as conveyor systems, mixers, or dosing systems where accurate movement control is critical.
Three Gear Stages – Provides enhanced torque handling capacity and gearbox strength, making it suitable for continuous-duty operations in heavy industrial environments.
94% Efficiency – Ensures minimal energy losses during power transmission, contributing to reduced operational costs and higher overall system efficiency.
Bevel Gear Design – Enables 90° power transmission with compact footprint, ideal for installations in confined spaces or equipment with angular drive requirements.
Ø25H7 Hollow Output Shaft made of Stainless Steel – Supports direct shaft mounting and corrosion resistance, simplifying installation and improving durability in washdown zones and CIP (Clean-in-Place) environments.
Gear Housing Made of AISI 316L Stainless Steel – Provides superior corrosion and chemical resistance compared to standard coatings and materials, extending service life and reliability under aggressive cleaning protocols.
Input Shaft Ø11 mm – Designed to interface seamlessly with standard motor configurations for flexible integration across various OEM platforms.
Compatible with IEC Standard Motor Interface 63B14 – Allows easy coupling with a range of electric motors, promoting modular system design for engineers and system integrators.
Compact Gear Size X43N – Delivers high performance in reduced footprint, ideal for industries with space-constrained machinery layouts or mobile systems. This gearbox is engineered for performance, reliability, and hygiene—making it a preferred choice for technical specialists seeking long-lasting gear solutions in high-demand industrial environments.
High Gear Ratio of 323.37:1 – Offers exceptional torque multiplication, ideal for low-speed, high-precision applications such as conveyor systems, mixers, or dosing systems where accurate movement control is critical.
Three Gear Stages – Provides enhanced torque handling capacity and gearbox strength, making it suitable for continuous-duty operations in heavy industrial environments.
94% Efficiency – Ensures minimal energy losses during power transmission, contributing to reduced operational costs and higher overall system efficiency.
Bevel Gear Design – Enables 90° power transmission with compact footprint, ideal for installations in confined spaces or equipment with angular drive requirements.
Ø25H7 Hollow Output Shaft made of Stainless Steel – Supports direct shaft mounting and corrosion resistance, simplifying installation and improving durability in washdown zones and CIP (Clean-in-Place) environments.
Gear Housing Made of AISI 316L Stainless Steel – Provides superior corrosion and chemical resistance compared to standard coatings and materials, extending service life and reliability under aggressive cleaning protocols.
Input Shaft Ø11 mm – Designed to interface seamlessly with standard motor configurations for flexible integration across various OEM platforms.
Compatible with IEC Standard Motor Interface 63B14 – Allows easy coupling with a range of electric motors, promoting modular system design for engineers and system integrators.
Compact Gear Size X43N – Delivers high performance in reduced footprint, ideal for industries with space-constrained machinery layouts or mobile systems. This gearbox is engineered for performance, reliability, and hygiene—making it a preferred choice for technical specialists seeking long-lasting gear solutions in high-demand industrial environments.
