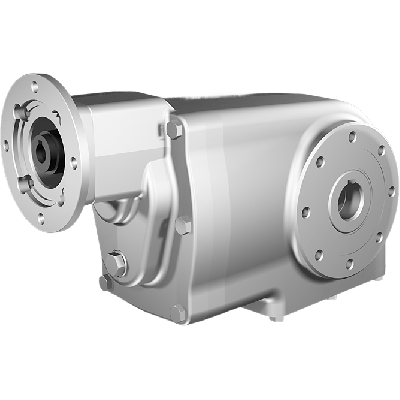

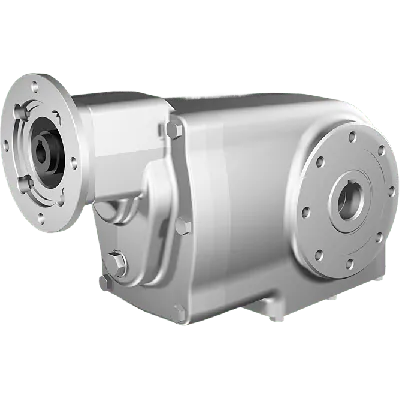

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 323,37:1, input 63B14, B3, stainless steel
HV82PX43NI16-CFBN-PB3-B-OFIt features a gear ratio of 323.37:1, with three gear stages to ensure reliable torque transmission. The gear input shaft diameter is 11 mm and the output shaft is Ø25H7 mm. Constructed with AISI 316L stainless steel gears, it meets stringent hygiene and corrosion resistance requirements. The efficiency is 94%, optimizing energy use.This model is compatible with a 63B14 motor interface and comes in gear size X43N. Input and output BCDs are 75 mm and 90 mm, respectively, supporting straightforward integration.
Specifications
Product description
Downloads
€2,119.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
323,37:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
4.3
Max output torque (Nm)
136
Max kW input at 1400 rpm
0.07
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
From Clean-Geartech, a leading manufacturer of high-performance stainless steel transmission solutions designed for the most demanding industrial applications, comes the X43N bevel gearbox. Renowned for durability, superior corrosion resistance, and optimal hygienic design, Clean-Geartech products are tailored for engineers and technical specialists in industries such as food processing, pharmaceuticals, marine, and chemical manufacturing. The X43N model excels in challenging environments thanks to its fully stainless steel construction and precision transmission characteristics.
● Fully constructed in AISI 316L stainless steel offers exceptional corrosion resistance, ideal for aggressive washdown environments in food, beverage, or pharmaceutical industries. This ensures long-term durability in CIP/SIP cleaning conditions.
● High transmission ratio of 323.37:1 enables significant torque multiplication in space-limited applications, perfect for slow-speed, high-torque machinery such as mixers, conveyors, or dosing systems.
● Ø25H7 hollow output shaft in stainless steel allows for easy shaft mounting with tight tolerances, optimizing assembly time and improving mechanical stability in modular setups.
● Input flange compatibility with IEC 63B14 motors enhances interoperability with commonly used electric motors, streamlining integration across diverse OEM designs.
● An efficiency rating of 94% results in minimal energy losses, offering energy savings and reduced thermal loads in long-duty cycle operations.
● Compact X43N housing with triple-stage gearing delivers reliable torque transmission in compact footprint – ideal for decentralized drive systems where installation space is limited.
● Ø11 mm input shaft dimension ensures compatibility with precision coupling systems, enabling accurate load transfer and minimizing backlash.
● Bevel gear configuration supports angular transmission (90°), facilitating flexible machine layouts and optimized use of installation space. The Clean-Geartech X43N combines engineering-grade mechanical performance with the highest hygienic standards, setting a benchmark for technical reliability in sanitary and corrosive environments.
● Fully constructed in AISI 316L stainless steel offers exceptional corrosion resistance, ideal for aggressive washdown environments in food, beverage, or pharmaceutical industries. This ensures long-term durability in CIP/SIP cleaning conditions.
● High transmission ratio of 323.37:1 enables significant torque multiplication in space-limited applications, perfect for slow-speed, high-torque machinery such as mixers, conveyors, or dosing systems.
● Ø25H7 hollow output shaft in stainless steel allows for easy shaft mounting with tight tolerances, optimizing assembly time and improving mechanical stability in modular setups.
● Input flange compatibility with IEC 63B14 motors enhances interoperability with commonly used electric motors, streamlining integration across diverse OEM designs.
● An efficiency rating of 94% results in minimal energy losses, offering energy savings and reduced thermal loads in long-duty cycle operations.
● Compact X43N housing with triple-stage gearing delivers reliable torque transmission in compact footprint – ideal for decentralized drive systems where installation space is limited.
● Ø11 mm input shaft dimension ensures compatibility with precision coupling systems, enabling accurate load transfer and minimizing backlash.
● Bevel gear configuration supports angular transmission (90°), facilitating flexible machine layouts and optimized use of installation space. The Clean-Geartech X43N combines engineering-grade mechanical performance with the highest hygienic standards, setting a benchmark for technical reliability in sanitary and corrosive environments.
