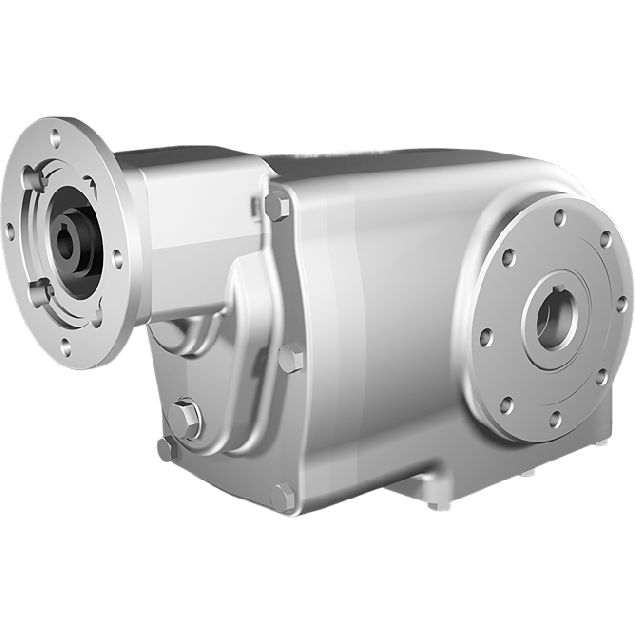

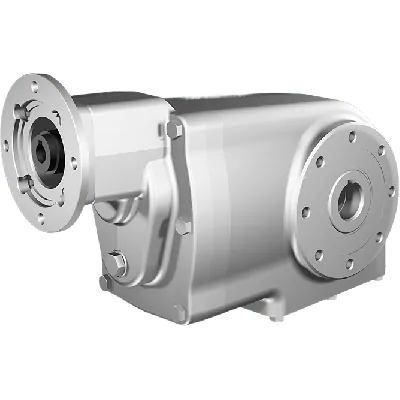

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 272,47:1, input 63B14, B3, stainless steel
HV82PX43NI15-CFBN-PB3-B-OFWith a gear ratio of 272.47:1 and 3 gear stages, it delivers stable torque conversion. The output shaft diameter is 25 mm (Ø25H7), while the input shaft measures 11 mm. The unit features a stainless steel AISI 316L gear set and 63B14 gear motor interface. The gear size is X43N, and it achieves an efficiency of 94%. Input and output BCDs are 75 mm and 90 mm respectively.Ideal where hygiene, corrosion resistance, and compact design are critical.
Specifications
Product description
Downloads
€2,119.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
272,47:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
5.1
Max output torque (Nm)
136
Max kW input at 1400 rpm
0.08
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is an industry-recognized manufacturer of premium-quality gear systems engineered for demanding industrial environments. Specializing in hygienic, stainless-steel gear units, Clean-Geartech delivers durability, precision, and exceptional performance where corrosion resistance and cleanliness are critical — making its products a trusted solution in food processing, pharmaceuticals, offshore, and chemical industries.Key Features and Benefits:
Robust Gear Housing in AISI 316L Stainless Steel – Provides superior corrosion resistance and hygiene for use in food, chemical, and marine applications.
High Gear Ratio of 272.47:1 – Enables significant torque multiplication, making it ideal for applications requiring high torque at low speeds.
Three-Stage Bevel Gear Design – Ensures smooth, efficient power transmission with reduced noise and improved reliability in high-duty cycles.
Output Shaft Ø25 mm H7 Hollow Shaft in Stainless Steel – Allows for direct shaft mounting with high precision and compatibility, particularly in constrained installation spaces.
Stainless Steel Hollow Shaft (SS) – Enhances resistance to wear and chemical exposure, increasing lifespan in harsh environments.
Input Interface 63B14 – Offers compatibility with a wide range of electric motors, promoting modular integration in existing drive systems.
Compact Gear Size X43N – Delivers high-performance output within a small footprint, allowing integration into space-critical systems.
High Mechanical Efficiency at 94% – Minimizes energy loss during transmission, improving system-wide energy efficiency.
Input Shaft Ø11 mm – Precision-engineered to accept standardized motor couplings for a secure and vibration-free interface.
Optimized for Hygienic and Cleanroom Applications – Clean surface design prevents dirt buildup and supports washdown compliance in clean-critical production zones.
Suitable for Conveyor Systems, Mixers, Dosing Equipment, and Packaging Machinery – Especially where aggressive cleaning or corrosive substances are present. Engineered for reliability and long service life, the Clean-Geartech X43N ensures operational efficiency, hygienic integrity, and performance consistency across a variety of demanding industrial sectors.
Robust Gear Housing in AISI 316L Stainless Steel – Provides superior corrosion resistance and hygiene for use in food, chemical, and marine applications.
High Gear Ratio of 272.47:1 – Enables significant torque multiplication, making it ideal for applications requiring high torque at low speeds.
Three-Stage Bevel Gear Design – Ensures smooth, efficient power transmission with reduced noise and improved reliability in high-duty cycles.
Output Shaft Ø25 mm H7 Hollow Shaft in Stainless Steel – Allows for direct shaft mounting with high precision and compatibility, particularly in constrained installation spaces.
Stainless Steel Hollow Shaft (SS) – Enhances resistance to wear and chemical exposure, increasing lifespan in harsh environments.
Input Interface 63B14 – Offers compatibility with a wide range of electric motors, promoting modular integration in existing drive systems.
Compact Gear Size X43N – Delivers high-performance output within a small footprint, allowing integration into space-critical systems.
High Mechanical Efficiency at 94% – Minimizes energy loss during transmission, improving system-wide energy efficiency.
Input Shaft Ø11 mm – Precision-engineered to accept standardized motor couplings for a secure and vibration-free interface.
Optimized for Hygienic and Cleanroom Applications – Clean surface design prevents dirt buildup and supports washdown compliance in clean-critical production zones.
Suitable for Conveyor Systems, Mixers, Dosing Equipment, and Packaging Machinery – Especially where aggressive cleaning or corrosive substances are present. Engineered for reliability and long service life, the Clean-Geartech X43N ensures operational efficiency, hygienic integrity, and performance consistency across a variety of demanding industrial sectors.
