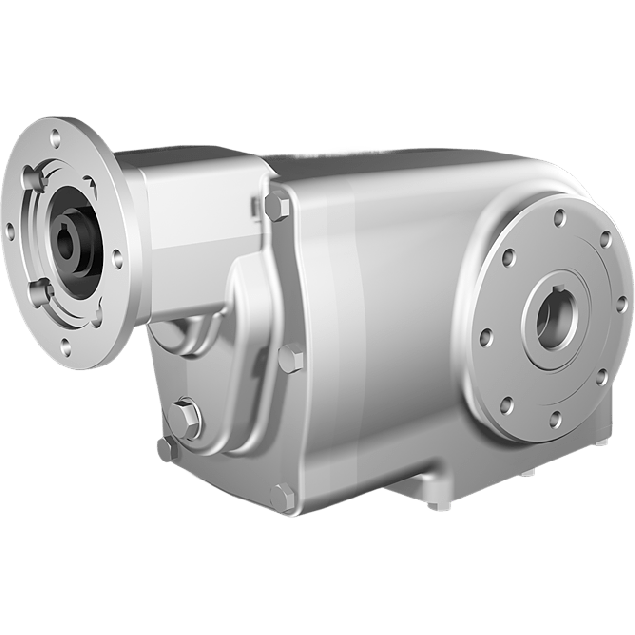

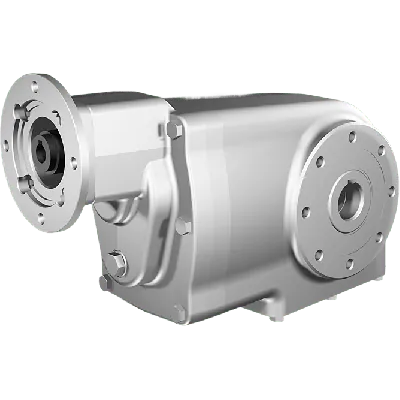

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 210,42:1, input 63B14, B3, stainless steel
HV82PX43NI13-CFBN-PB3-B-OFThis product features a gear size of X43N and a gear ratio of 210.42:1, configured with 3 gear stages to ensure stable torque transmission. The gear material is stainless steel AISI 316L, providing high corrosion resistance. The unit includes a Ø25H7 stainless steel hollow output shaft and an 11 mm input shaft. The gear motor interface is 63B14, and it offers a BCD input of 75 mm and a BCD output of 90 mm. Its mechanical design supports a gear efficiency of 94%, making it suitable for continuous operation in hygienic or aggressive environments.
Specifications
Product description
Downloads
€2,119.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
210,42:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
6.7
Max output torque (Nm)
136
Max kW input at 1400 rpm
0.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized European manufacturer renowned for producing premium hygienic gearbox solutions for demanding industrial environments such as food processing, pharmaceuticals, and chemicals. All Clean-Geartech components are engineered for maximum corrosion resistance, longevity and easy integration into stainless steel-driven systems. Their systems are designed to meet the highest hygienic and operational standards, making them a top choice for engineers and system integrators.
Constructed of corrosion-resistant AISI 316L stainless steel, the gearbox is ideal for cleanroom and washdown applications
Exceptional gear efficiency of 94% ensures reduced energy losses and improved system performance over time
Precision-machined Ø25H7 hollow output shaft in stainless steel allows for accurate, backlash-minimized torque transfer
High gear ratio of 210.42:1 enables significant speed reduction and torque multiplication, suitable for heavy-load applications
Three-stage bevel gear construction provides stable torque delivery and smooth operation under variable load conditions
Compact X43N housing size enables integration in space-constrained equipment layouts while maintaining performance standards
Bore-compatible input shaft interface (63B14) ensures rapid and secure motor coupling with standard IEC electric motors
11 mm precision input shaft supports high-accuracy drive systems such as servomotors or stepper motor configurations
Engineered for robust industrial sectors including pharmaceutical processing, automated food production, chemical handling, and marine environments
The hygienic design reduces contamination risk and maintenance downtime, essential for industries with strict GMP and HACCP requirements
Ideal for conveying systems, dosing machinery, lift assemblies, and vertical motion automation where corrosion resistance and hygiene are paramountThis gearbox is a reliable choice for engineers seeking uncompromising durability and precision in stainless steel power transmission solutions.
Constructed of corrosion-resistant AISI 316L stainless steel, the gearbox is ideal for cleanroom and washdown applications
Exceptional gear efficiency of 94% ensures reduced energy losses and improved system performance over time
Precision-machined Ø25H7 hollow output shaft in stainless steel allows for accurate, backlash-minimized torque transfer
High gear ratio of 210.42:1 enables significant speed reduction and torque multiplication, suitable for heavy-load applications
Three-stage bevel gear construction provides stable torque delivery and smooth operation under variable load conditions
Compact X43N housing size enables integration in space-constrained equipment layouts while maintaining performance standards
Bore-compatible input shaft interface (63B14) ensures rapid and secure motor coupling with standard IEC electric motors
11 mm precision input shaft supports high-accuracy drive systems such as servomotors or stepper motor configurations
Engineered for robust industrial sectors including pharmaceutical processing, automated food production, chemical handling, and marine environments
The hygienic design reduces contamination risk and maintenance downtime, essential for industries with strict GMP and HACCP requirements
Ideal for conveying systems, dosing machinery, lift assemblies, and vertical motion automation where corrosion resistance and hygiene are paramountThis gearbox is a reliable choice for engineers seeking uncompromising durability and precision in stainless steel power transmission solutions.
