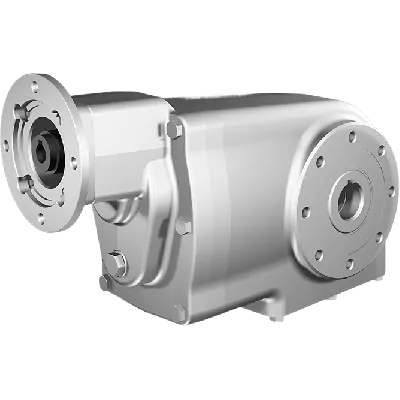

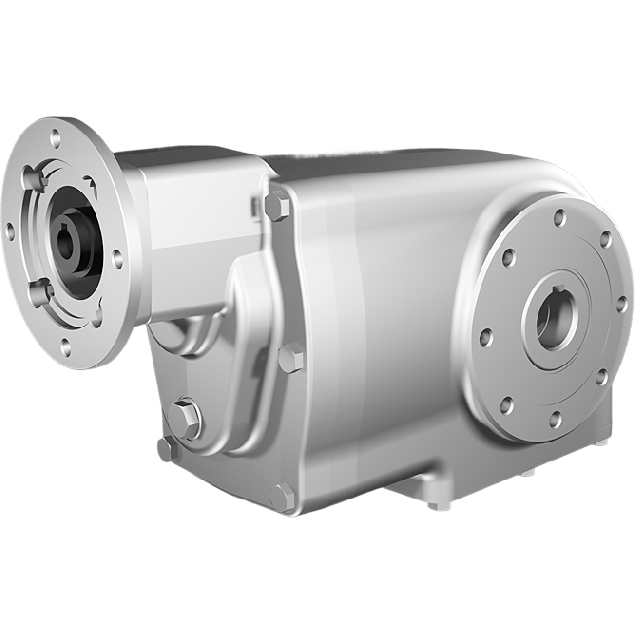

Clean-Geartech X43N, helical bevel gear Ø25H7 hollow shaft, 150,18:1, input 63B14, B3, stainless steel
HV82PX43NI11-CFBN-PB3-B-OFThis model features a gear size: X43N and a gear ratio: 150.18:1. It is equipped with a Ø25 mm output hollow shaft (H7 tolerance) and an Ø11 mm input shaft. The motor interface: 63B14 ensures compatibility with standard motor frames. The unit is constructed with stainless steel AISI 316L gears and has 3 gear stages for torque transfer. The efficiency: 94% optimizes power usage. The unit's BCD input: 75 mm and BCD output: 90 mm allow for precise mounting alignment.
Specifications
Product description
Downloads
€2,119.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
150,18:1
BCD input
75
BCD output
90
Gear stages
3
Efficiency (%)
94
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
X43N
Output speed at 1400 RPM
9.3
Max output torque (Nm)
136
Max kW input at 1400 rpm
0.14
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech X43N is a high-performance bevel gearbox specifically engineered for demanding industrial applications where hygiene, durability, and precise torque transmission are key. Manufactured entirely from stainless steel AISI 316L, this gear unit is ideal for industries with strict cleanliness requirements, such as food processing, pharmaceuticals, and chemical production. Clean-Geartech is a trusted name among industrial professionals, known for providing reliable and hygienic motion solutions built to withstand aggressive cleaning and harsh environments.Key Features & Application Benefits:
✔ Stainless Steel AISI 316L Housing – Provides excellent corrosion resistance and is ideal for use in hygienic environments or where exposure to aggressive chemicals is frequent.
✔ High Gear Ratio of 150.18:1 – Ensures precise motion control and torque multiplication for applications such as mixers, conveyors, and packaging machinery.
✔ Ø25H7 Hollow Output Shaft, Stainless Steel – Facilitates easy shaft integration and ensures a corrosion-protected driven side in high-moisture or washdown zones.
✔ Stainless Steel Input Shaft (11mm) – Enhances unit durability and resistance against rust, extending service life under continuous use or washdown conditions.
✔ Compact Gear Size X43N – Allows for integration into systems with limited space while maintaining mechanical strength and performance.
✔ Gear Motor Interface 63B14 – Standardized B14 flange interface for direct coupling with IEC electric motors, simplifying installation and maintenance.
✔ 3-Stage Gear Design – Delivers smooth and efficient power transmission with a high-efficiency rate of 94%, reducing energy consumption during extended operations.
✔ Bevel Gear Configuration – Ideal for applications requiring a 90-degree torque redirection, commonly used in automated systems and process lines.
✔ Manufacturer: Clean-Geartech – Recognized for its innovation in stainless steel gearing solutions, Clean-Geartech gearboxes are widely used in sanitary-critical facilities across Europe and North America.This gearbox combines compact design, high efficiency, and corrosion resistance – making it an excellent fit for engineers and technical specialists designing hygienic and durable power transmission systems.
✔ Stainless Steel AISI 316L Housing – Provides excellent corrosion resistance and is ideal for use in hygienic environments or where exposure to aggressive chemicals is frequent.
✔ High Gear Ratio of 150.18:1 – Ensures precise motion control and torque multiplication for applications such as mixers, conveyors, and packaging machinery.
✔ Ø25H7 Hollow Output Shaft, Stainless Steel – Facilitates easy shaft integration and ensures a corrosion-protected driven side in high-moisture or washdown zones.
✔ Stainless Steel Input Shaft (11mm) – Enhances unit durability and resistance against rust, extending service life under continuous use or washdown conditions.
✔ Compact Gear Size X43N – Allows for integration into systems with limited space while maintaining mechanical strength and performance.
✔ Gear Motor Interface 63B14 – Standardized B14 flange interface for direct coupling with IEC electric motors, simplifying installation and maintenance.
✔ 3-Stage Gear Design – Delivers smooth and efficient power transmission with a high-efficiency rate of 94%, reducing energy consumption during extended operations.
✔ Bevel Gear Configuration – Ideal for applications requiring a 90-degree torque redirection, commonly used in automated systems and process lines.
✔ Manufacturer: Clean-Geartech – Recognized for its innovation in stainless steel gearing solutions, Clean-Geartech gearboxes are widely used in sanitary-critical facilities across Europe and North America.This gearbox combines compact design, high efficiency, and corrosion resistance – making it an excellent fit for engineers and technical specialists designing hygienic and durable power transmission systems.
