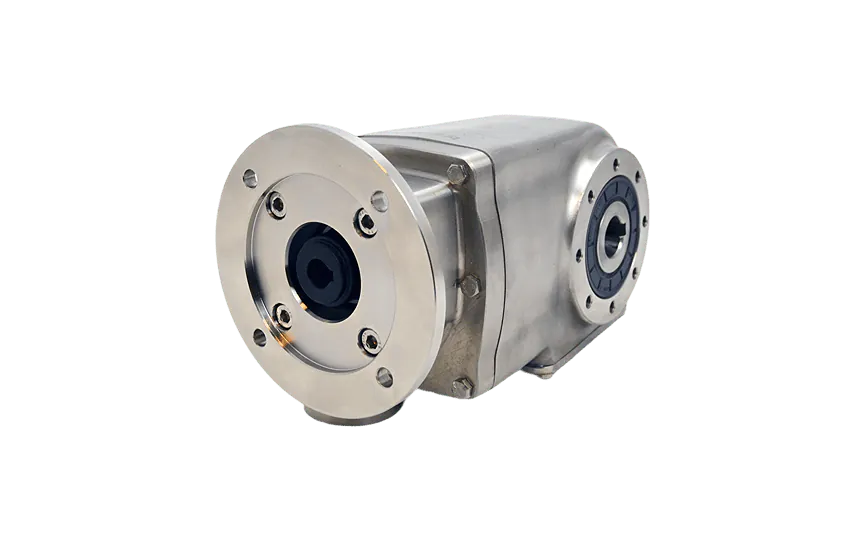

Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 7,29:1, input 90B14, V5, stainless steel
HV82PX42NI01-CFBN-TV5-E-OFThe unit features a gear ratio of 7.29:1 and comprises 2 gear stages for stable torque transmission. With a BCD input of 115 mm and BCD output of 90 mm, it ensures compatibility with standard mounting configurations. The input shaft diameter is 24 mm, and the output shaft is a Ø25H7 hollow shaft.Constructed with stainless steel AISI 316L gears and a stainless steel hollow output shaft, the gearbox supports stringent hygiene and corrosion resistance standards. Equipped with a 90B14 gear motor interface and a compact gear size X42N, it delivers an efficiency of 96%.
Specifications
Product description
Downloads
€2,080.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
7,29:1
BCD input
115
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X42N
Output speed at 1400 RPM
192
Max output torque (Nm)
80
Max kW input at 1400 rpm
1.7
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in high-performance gear units engineered from premium stainless steel for demanding hygienic and corrosive environments. Known for its innovative designs and precision manufacturing, Clean-Geartech delivers gear solutions tailored specifically for the food, pharmaceutical, marine, and chemical industries where hygiene, reliability, and resistance to harsh conditions are critical.Key Features, Benefits, and Industrial Applications:
• Full stainless steel construction (AISI 316L) ensures superior corrosion resistance, ideal for use in aggressive washdown environments such as food processing plants, marine operations, and chemical facilities.
• High efficiency rating of 96% minimizes power loss, resulting in more energy-efficient system operation, reduced heat development, and lower operational costs—especially beneficial in continuous processing lines.
• 7.29:1 gear ratio delivers optimal torque conversion for heavy-duty applications while maintaining a compact size, perfect for conveyors, agitators, and mixers in hygienic zones.
• Two-stage gearing provides smooth torque transmission and increased load capacity, enhancing equipment longevity in dynamic motion applications.
• Ø25H7 hollow output shaft in stainless steel allows for direct integration with driven components, reducing the need for couplings and saving installation space.
• Input shaft designed for 90B14 motor interface enables seamless integration with B14 standard motors common in industrial automation systems.
• 24 mm input shaft diameter provides rigidity and compatibility with a wide range of drivetrain configurations, ensuring reliable performance under high load conditions.
• Compact X42N gearbox housing is optimized for space-constrained installations without compromising mechanical strength and hygiene compliance. This gear unit is engineered as an optimal solution for engineers and technical specialists seeking durable, high-efficiency, and compact gear units for cleanroom, pharmaceutical, and marine-grade environments.
• Full stainless steel construction (AISI 316L) ensures superior corrosion resistance, ideal for use in aggressive washdown environments such as food processing plants, marine operations, and chemical facilities.
• High efficiency rating of 96% minimizes power loss, resulting in more energy-efficient system operation, reduced heat development, and lower operational costs—especially beneficial in continuous processing lines.
• 7.29:1 gear ratio delivers optimal torque conversion for heavy-duty applications while maintaining a compact size, perfect for conveyors, agitators, and mixers in hygienic zones.
• Two-stage gearing provides smooth torque transmission and increased load capacity, enhancing equipment longevity in dynamic motion applications.
• Ø25H7 hollow output shaft in stainless steel allows for direct integration with driven components, reducing the need for couplings and saving installation space.
• Input shaft designed for 90B14 motor interface enables seamless integration with B14 standard motors common in industrial automation systems.
• 24 mm input shaft diameter provides rigidity and compatibility with a wide range of drivetrain configurations, ensuring reliable performance under high load conditions.
• Compact X42N gearbox housing is optimized for space-constrained installations without compromising mechanical strength and hygiene compliance. This gear unit is engineered as an optimal solution for engineers and technical specialists seeking durable, high-efficiency, and compact gear units for cleanroom, pharmaceutical, and marine-grade environments.
