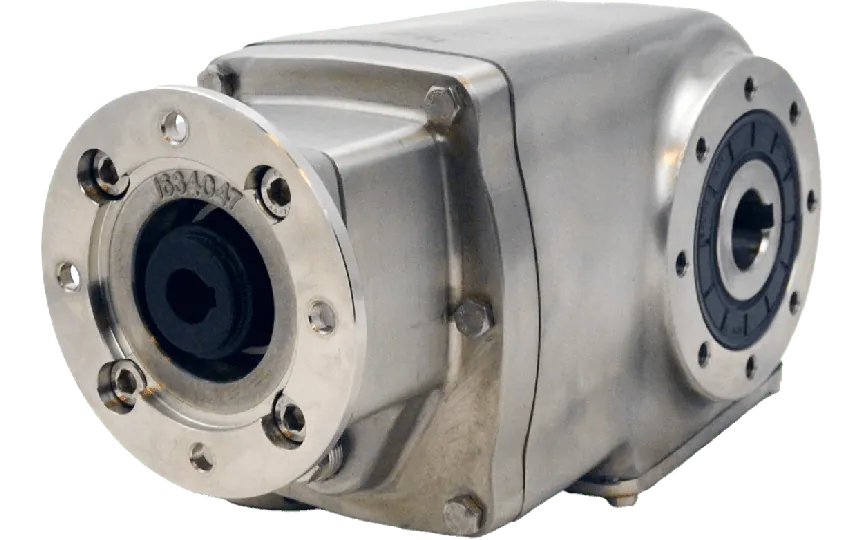

Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 7,29:1, input 71B14, B3, stainless steel
HV82PX42NI01-CFBN-QB3-C-OFIt features a gear ratio of 7.29:1 and a two-stage gear design that delivers a stable efficiency of 96%. The gear housing and gears are made of stainless steel AISI 316L, ensuring high corrosion resistance for hygienic or corrosive applications. The gear input shaft diameter is 14 mm and the gear output is a Ø25H7 hollow shaft. It integrates with a 71B14 motor interface. The BCD input is 85 mm and the BCD output is 90 mm. The unit belongs to the gear size X42N.Ideal for use in food, pharmaceutical, and maritime applications.
Specifications
Product description
Downloads
€2,006.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
Supplier product ID
PX42NI01-CFBN-QB3-C
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
7,29:1
BCD input
85
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
X42N
Output speed at 1400 RPM
192
Max output torque (Nm)
80
Max kW input at 1400 rpm
1.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned European manufacturer specializing in high-performance hygienic gear solutions, designed for demanding industrial environments. Known for their innovation and reliability, Clean-Geartech products are built to meet strict standards in the food, pharmaceutical, chemical, and marine industries, with a clear focus on corrosion resistance, hygiene, and operational efficiency.Key Features, Advantages, and Application Possibilities:
• Bevel gear type X42N with a precise 7.29:1 ratio optimizes torque multiplication and speed reduction for highly efficient mechanical power transmission in compact installations
• Constructed from AISI 316L stainless steel, making the entire gear unit highly resistant to corrosion, especially suitable for chemically aggressive or washdown environments like pharmaceutical and food processing plants
• 25 mm H7 precision hollow output shaft in stainless steel (SS hollow shaft) ensures easy connection to driven shafts while maintaining hygiene and durability in sterile applications
• 96% mechanical efficiency minimizes energy loss during operation, supporting energy-optimized systems in automation and processing lines
• Features a 14 mm stainless steel input shaft, ensuring compatibility with a wide range of motors and mechanical interfaces
• Mounting interface 71B14 provides direct coupling with standard IEC motors, reducing installation complexity and alignment errors
• Two-stage gear transmission delivers smooth performance and improves load distribution, excellent for continuous duty cycles in high-precision tasks
• Gear size X42N offers a balance between compact form factor and torque capacity, ideal for space-limited control cabinets or machinery frames
• Hygienic, crevice-free design supports CIP (Clean-in-Place) and SIP (Sterilize-in-Place) protocols, making it ideal in environments with stringent cleanliness requirements
• Suited for use in applications such as mixers, conveyors, filling systems, packaging lines, and other motion-critical systems across food tech, biotech, and chemical engineering sectors
• Bevel gear type X42N with a precise 7.29:1 ratio optimizes torque multiplication and speed reduction for highly efficient mechanical power transmission in compact installations
• Constructed from AISI 316L stainless steel, making the entire gear unit highly resistant to corrosion, especially suitable for chemically aggressive or washdown environments like pharmaceutical and food processing plants
• 25 mm H7 precision hollow output shaft in stainless steel (SS hollow shaft) ensures easy connection to driven shafts while maintaining hygiene and durability in sterile applications
• 96% mechanical efficiency minimizes energy loss during operation, supporting energy-optimized systems in automation and processing lines
• Features a 14 mm stainless steel input shaft, ensuring compatibility with a wide range of motors and mechanical interfaces
• Mounting interface 71B14 provides direct coupling with standard IEC motors, reducing installation complexity and alignment errors
• Two-stage gear transmission delivers smooth performance and improves load distribution, excellent for continuous duty cycles in high-precision tasks
• Gear size X42N offers a balance between compact form factor and torque capacity, ideal for space-limited control cabinets or machinery frames
• Hygienic, crevice-free design supports CIP (Clean-in-Place) and SIP (Sterilize-in-Place) protocols, making it ideal in environments with stringent cleanliness requirements
• Suited for use in applications such as mixers, conveyors, filling systems, packaging lines, and other motion-critical systems across food tech, biotech, and chemical engineering sectors
