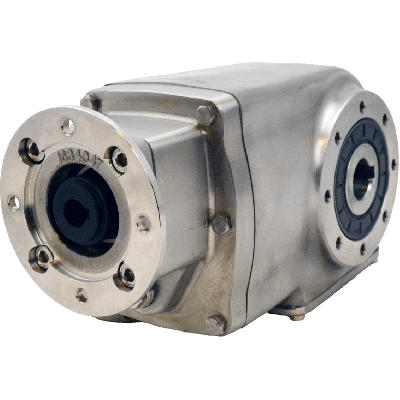

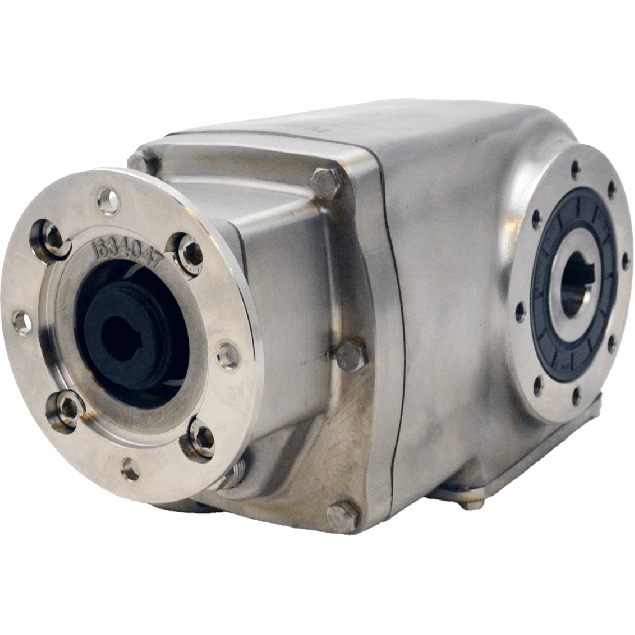

Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 50,34:1, input 80B14, B3, stainless steel
HV82PX42NI14-CFBN-RB3-D-OFInput power: 100 BCD Output power: 90 BCD Efficiency: 96% Input shaft diameter: 19 mm Output shaft: Ø25H7 mm hollow Gear ratio: 50.34:1 Gear size: X42N Gear stages: 2 Gear motor interface: 80B14 Gear material: Stainless steel AISI 316LThe housing and transmission components ensure durability in washdown and aggressive environments due to the stainless steel construction. Suitable for hygienic applications including food and pharma.
Specifications
Product description
Downloads
€2,012.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
Supplier product ID
PX42NI14-CFBN-RB3-D
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
50,34:1
BCD input
100
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X42N
Output speed at 1400 RPM
27.8
Max output torque (Nm)
110
Max kW input at 1400 rpm
0.33
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium European manufacturer specializing in precision-engineered, hygienic stainless steel gear units for high-demand industrial environments. Known for its advanced materials, optimal efficiency, and robust designs, Clean-Geartech's products are widely deployed in sectors such as food processing, pharmaceuticals, chemicals, and marine engineering—where corrosion resistance and reliability are critical.Key Features & Application Benefits:
✔ Constructed entirely of corrosion-resistant stainless steel AISI 316L, ideal for aggressive washdown environments and industries with strict hygiene requirements (e.g., food & beverage, pharma)
✔ Bevel gear design with a 2-stage configuration ensures long-lasting torque efficiency and smooth torque transmission in compact spaces
✔ High mechanical efficiency of 96% significantly reduces energy consumption and heat generation, thereby increasing system sustainability and operational uptime
✔ Gear ratio of 50.34:1 provides precise speed reduction for fine-tuned motion control in automated production lines
✔ Standardized motor interface (80B14) enables fast and secure integration with a wide range of IEC-standard motors for modular setup and system compatibility
✔ Ø25H7 hollow output shaft made from stainless steel for robust, backlash-free torque transmission and easy shaft mounting in critical process machinery
✔ Ø19 mm input shaft ensures compatibility with various drive systems and reliable power input without misalignment or vibration issues
✔ Compact gear size X42N supports space-saving assemblies in confined installations without compromising performance
✔ Designed to perform in demanding environments such as marine, chemical processing, and cleanroom technology, where stainless steel durability and contamination control are essential
✔ Clean, hygienic design with no paint and smooth surfaces allows for easy cleaning and prevents bacterial buildup, supporting strict sanitary regulations This makes the Clean-Geartech X42N bevel gearbox an ideal choice for specialists seeking a durable, hygienic, and high-efficiency drive solution for complex industrial applications.
✔ Constructed entirely of corrosion-resistant stainless steel AISI 316L, ideal for aggressive washdown environments and industries with strict hygiene requirements (e.g., food & beverage, pharma)
✔ Bevel gear design with a 2-stage configuration ensures long-lasting torque efficiency and smooth torque transmission in compact spaces
✔ High mechanical efficiency of 96% significantly reduces energy consumption and heat generation, thereby increasing system sustainability and operational uptime
✔ Gear ratio of 50.34:1 provides precise speed reduction for fine-tuned motion control in automated production lines
✔ Standardized motor interface (80B14) enables fast and secure integration with a wide range of IEC-standard motors for modular setup and system compatibility
✔ Ø25H7 hollow output shaft made from stainless steel for robust, backlash-free torque transmission and easy shaft mounting in critical process machinery
✔ Ø19 mm input shaft ensures compatibility with various drive systems and reliable power input without misalignment or vibration issues
✔ Compact gear size X42N supports space-saving assemblies in confined installations without compromising performance
✔ Designed to perform in demanding environments such as marine, chemical processing, and cleanroom technology, where stainless steel durability and contamination control are essential
✔ Clean, hygienic design with no paint and smooth surfaces allows for easy cleaning and prevents bacterial buildup, supporting strict sanitary regulations This makes the Clean-Geartech X42N bevel gearbox an ideal choice for specialists seeking a durable, hygienic, and high-efficiency drive solution for complex industrial applications.
