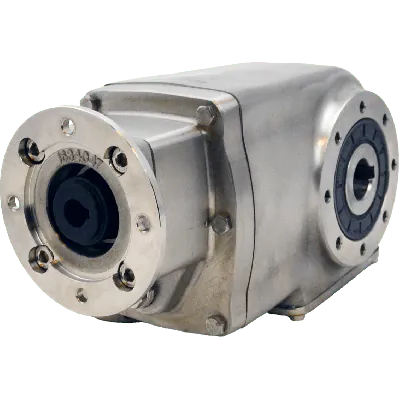

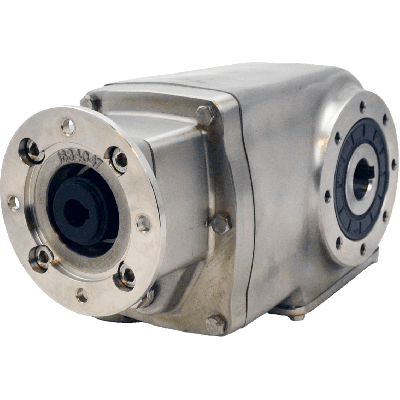

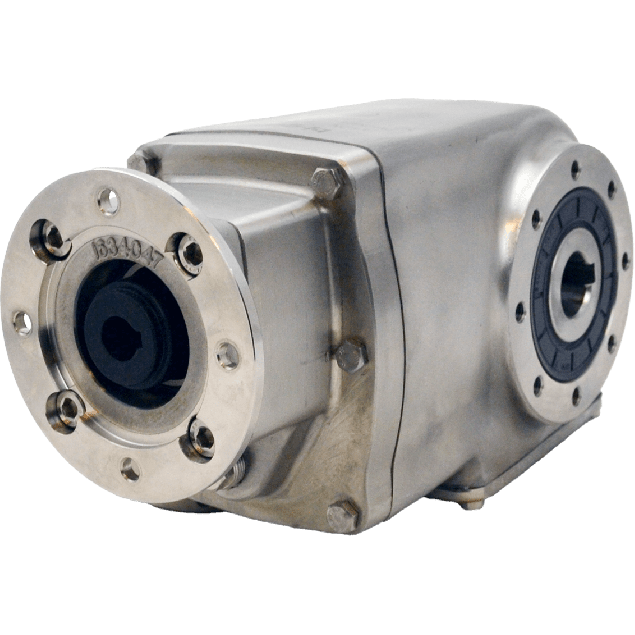

Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 29,21:1, input 80B14, V5, stainless steel
HV82PX42NI10-CFBN-RV5-D-OFKey attributes include: Input shaft: 19 mm, Output shaft: Ø25H7 mm, Gear ratio: 29.21:1, Efficiency: 96%, Gear size: X42N, Number of stages: 2, Gear motor interface: 80B14, Input BCD: 100, Output BCD: 90, Gear material: Stainless steel AISI 316L.This configuration features high efficiency and corrosion-resistant materials, making it suitable for food, pharma, and marine applications. The stainless steel hollow shaft and housing ensure durability and easy cleaning in hygienic environments.
Specifications
Product description
Downloads
€2,061.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
Supplier product ID
PX42NI10-CFBN-RV5-D
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
29,21:1
BCD input
100
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
X42N
Output speed at 1400 RPM
47.9
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.68
Mounting position
V5
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of hygienic and corrosion-resistant gear solutions, known for supplying drive systems tailored for demanding industrial environments including food processing, chemical manufacturing, pharmaceuticals, and marine sectors. With a focus on operational reliability, cleanability, and resistance to aggressive cleaning agents, Clean-Geartech sets the standard for performance and durability in harsh environments.Product Description:The Clean-Geartech X42N Stainless Steel Bevel Gearbox is a premium two-stage transmission unit constructed with high-grade AISI 316L stainless steel. Designed for environments requiring exceptional hygiene and resistance to corrosion, the X42N offers superior reliability and efficiency in demanding industrial applications.Applications, Features & Benefits:
Constructed from AISI 316L stainless steel for full corrosion resistance, making it ideal for aggressive environments such as food, dairy, chemical, or marine industries.
Hygienic design with smooth surfaces and crevice-free construction allows for easy cleaning and compliance with stringent sanitation standards (e.g., FDA, EHEDG).
Hollow output shaft Ø25H7 in stainless steel ensures compatibility with hygienic drive systems and simplifies shaft alignment, coupling, and installation in clean environments.
High-efficiency rating of 96% minimizes energy loss, supporting sustainability and reducing thermal load in continuous-run operations.
Two-stage bevel gear configuration offers a compact 29.21:1 ratio, delivering optimized torque transfer and precision speed reduction.
80B14 input flange interface ensures easy motor mounting compatibility with IEC standard motors for simplified integration.
Ø19 mm input shaft dimension supports high-torque transmission for a wide range of industrial power units.
Compact gear size (X42N) enables flexible installation, even in constrained machine layouts.
Output torque and performance stability are maintained even in corrosive or humid operational environments, ensuring low maintenance and extended service life.
Ideal for specialty machinery in washdown zones, robotic automation in healthcare environments, and handling systems in chemical processing plants.
Constructed from AISI 316L stainless steel for full corrosion resistance, making it ideal for aggressive environments such as food, dairy, chemical, or marine industries.
Hygienic design with smooth surfaces and crevice-free construction allows for easy cleaning and compliance with stringent sanitation standards (e.g., FDA, EHEDG).
Hollow output shaft Ø25H7 in stainless steel ensures compatibility with hygienic drive systems and simplifies shaft alignment, coupling, and installation in clean environments.
High-efficiency rating of 96% minimizes energy loss, supporting sustainability and reducing thermal load in continuous-run operations.
Two-stage bevel gear configuration offers a compact 29.21:1 ratio, delivering optimized torque transfer and precision speed reduction.
80B14 input flange interface ensures easy motor mounting compatibility with IEC standard motors for simplified integration.
Ø19 mm input shaft dimension supports high-torque transmission for a wide range of industrial power units.
Compact gear size (X42N) enables flexible installation, even in constrained machine layouts.
Output torque and performance stability are maintained even in corrosive or humid operational environments, ensuring low maintenance and extended service life.
Ideal for specialty machinery in washdown zones, robotic automation in healthcare environments, and handling systems in chemical processing plants.
