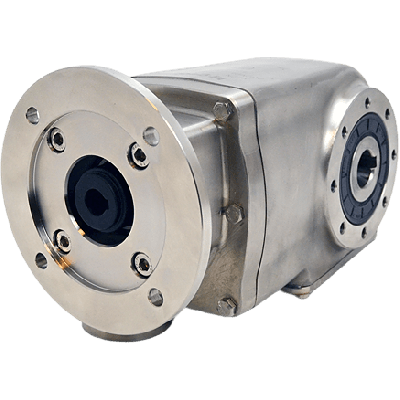

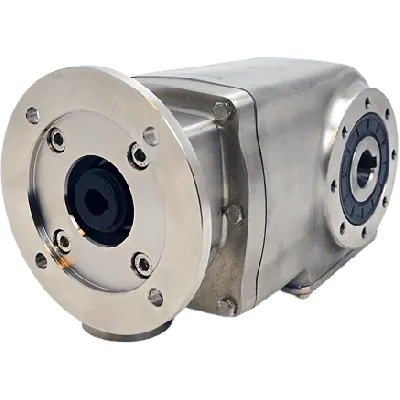

Clean-Geartech X42N, helical bevel gear Ø25H7 hollow shaft, 20,25:1, input 90B14, B3, stainless steel
HV82PX42NI06-CFBN-TB3-E-OFThis unit features a gear size of X42N with 2 gear stages and a gear ratio of 20.25:1. The gear output shaft is Ø25 mm hollow (H7 tolerance), while the gear input shaft measures Ø24 mm. It comes with a 90B14 motor interface. The gear components are manufactured from AISI 316L stainless steel, ensuring high corrosion resistance. It operates with 96% efficiency. The input BCD is 115 mm and the output BCD is 90 mm, allowing for standardized integration in complex systems.
Specifications
Product description
Downloads
€2,031.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834021.000000
Material
Stainless steel AISI 316L
Ratio
20,25:1
BCD input
115
BCD output
90
Gear stages
2
Efficiency (%)
96
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
X42N
Output speed at 1400 RPM
69
Max output torque (Nm)
130
Max kW input at 1400 rpm
0.98
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in hygienic and corrosion-resistant transmission solutions for demanding industrial environments. Known for high-quality engineering and durability, Clean-Geartech products are optimized for applications where performance, cleanliness, and robustness are critical – such as food processing, chemical, pharmaceutical, and marine industries.Technical specialists and engineers benefit from Clean-Geartech’s reliable design, constructed in accordance with strict standards and using only premium materials to secure longevity and performance under extreme conditions.Key features and application benefits of the Clean-Geartech X42N bevel gearbox:
• Gear housing material made entirely from AISI 316L stainless steel ensures maximum corrosion resistance, ideal for cleanroom, marine, and aggressive chemical environments.
• The Ø25H7 stainless steel hollow output shaft enables easy washdown and minimizes contamination risks, making it suitable for hygienic applications.
• 20.25:1 gear ratio with 2-stage bevel gear design ensures high torque transmission efficiency while enabling compact mechanical integration into automation systems.
• Input interface: B14 flange size 90 (90B14) – supports standard IEC motor connection, ensuring compatibility with a wide range of industrial motors.
• Input shaft diameter of 24 mm designed for seamless coupling with standardized motor shafts or custom mechanical drive systems.
• High efficiency rating of 96% – reduces energy losses and operating costs, beneficial for continuous or high-load applications.
• Compact frame size (X42N) allows installation in confined spaces while delivering high performance per unit volume.
• Optimized for demanding sectors including food and beverage processing, pharmaceutical production, offshore installations, and automated clean-in-place (CIP) systems.
• The SS (stainless steel) construction eliminates surface coatings, making it resistant to chipping, flaking, and microbial harborage.The Clean-Geartech X42N unit is engineered for professionals who demand uncompromised durability, functionality, and compliance with stringent hygiene standards, all while delivering premium mechanical performance.
• Gear housing material made entirely from AISI 316L stainless steel ensures maximum corrosion resistance, ideal for cleanroom, marine, and aggressive chemical environments.
• The Ø25H7 stainless steel hollow output shaft enables easy washdown and minimizes contamination risks, making it suitable for hygienic applications.
• 20.25:1 gear ratio with 2-stage bevel gear design ensures high torque transmission efficiency while enabling compact mechanical integration into automation systems.
• Input interface: B14 flange size 90 (90B14) – supports standard IEC motor connection, ensuring compatibility with a wide range of industrial motors.
• Input shaft diameter of 24 mm designed for seamless coupling with standardized motor shafts or custom mechanical drive systems.
• High efficiency rating of 96% – reduces energy losses and operating costs, beneficial for continuous or high-load applications.
• Compact frame size (X42N) allows installation in confined spaces while delivering high performance per unit volume.
• Optimized for demanding sectors including food and beverage processing, pharmaceutical production, offshore installations, and automated clean-in-place (CIP) systems.
• The SS (stainless steel) construction eliminates surface coatings, making it resistant to chipping, flaking, and microbial harborage.The Clean-Geartech X42N unit is engineered for professionals who demand uncompromised durability, functionality, and compliance with stringent hygiene standards, all while delivering premium mechanical performance.
